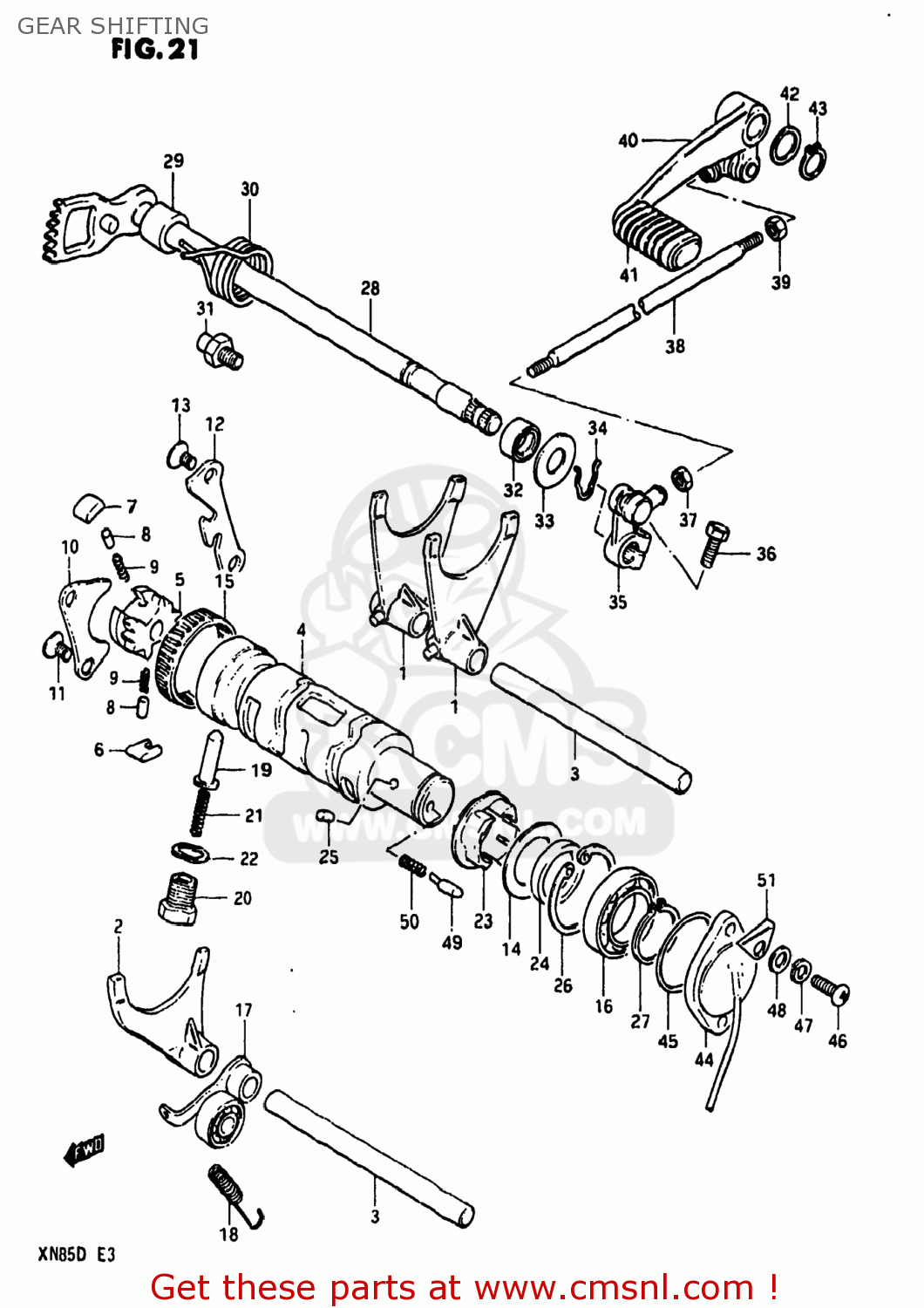

GEAR SHIFTING

ref

part #

description

quantity

1

2521109300
ref: 1

FORK,GEAR SHIFT NO.1

€ 0.00

2

2523109300
ref: 2

FORK,GEAR SHIFT NO.3

€ 0.00

3

2541109300
ref: 3
25411-15510

SHAFT,GEAR SHIFT FORK

€ 16.50

4

2531009302
ref: 4

CAM,GEAR SHIFT

€ 0.00

5

2532211000
ref: 5
25322-31310

RETAINER,GEAR SHIFT CAM

€ 14.50

6

2532311000
ref: 6
25323-34201

PAWL,GEAR SHIFT NO.1

€ 6.00

7

2532411000
ref: 7
25324-34201

PAWL,GEAR SHIFT NO.2

€ 6.00

8

0926105003
ref: 8

PIN(5X8)

€ 1.50

9

0944004003
ref: 9

SPRING

€ 1.50

10

2533109300
ref: 10

LIFTER, PAWL

€ 0.00

11

0212206128
ref: 11
02122-06127

SCREW

€ 3.00

12

2534109300
ref: 12

GUIDE,GEAR SHIFT CAM

€ 6.00

13

0212206128
ref: 13
02122-06127

SCREW

€ 3.00

14

0821125401
ref: 14
09181-25251

WASHER,THRUST

€ 2.50

15

0926343001
ref: 15

BEARING(43X49X12)

€ 30.00

16

0811069050
ref: 16
08113-69050

BALL BEARING

€ 36.00

17

2535009301
ref: 17

STOPPER,GEAR SHIFTING

€ 23.00

18

0944308019
ref: 18

SPRING

€ 2.50

19

2535109300
ref: 19

STOPPER,GEAR SHIFTING

€ 0.00

20

2535430000
ref: 20

HOLDER,GEAR SHIFT CAM STOP SPR

€ 6.50

21

0944006020
ref: 21

SPRING

€ 14.00

22

0916814004
ref: 22

GASKET(14X19.2X2) (NAS)

€ 2.50

23

2538149200
ref: 23

PLATE,GEAR SHIFT CAM STOPPER

€ 19.00

24

0918025061
ref: 24

SPACER

€ 0.00

25

0621104063
ref: 25
04221-04069

PIN 4X6

€ 2.00

26

0833141428
ref: 26
08331-4142A

CIRCLIP,42MM

€ 1.50

27

0833131258
ref: 27
08331-3125A

CIRCLIP,25MM

€ 2.00

28

2551009300
ref: 28

SHAFT,GEAR SHIFT

€ 0.00

29

0918012068
ref: 29

SPACER(12X20X15.3)

€ 3.00

30

0944426013
ref: 30

SPRING

€ 3.50

31

2567101000
ref: 31
25671-01011

STOPPER,GEAR SHIFT CAM

€ 3.00

32

0928512002
ref: 32
09285-12006

OIL SEAL

€ 7.00

33

0916012020
ref: 33
09160-12089

WASHER (12.5X27X1.6)

€ 2.00

34

0938412001
ref: 34
08331-3112A

SPRING,RETAINER

€ 2.00

35

2552009300
ref: 35
25520-09301

ARM,GEAR SHIFT

€ 53.50

36

0110706208
ref: 36
01500-06207

BOLT

€ 2.00

37

0831011068
ref: 37
08310-00067

NUT

€ 2.50

38

2552509300
ref: 38

ROD,GEAR SHIFT LINK

€ 6.50

39

0914006011
ref: 39

NUT

€ 1.50

40

2560009302
ref: 40

LEVER ASSEMBLY,GEAR SHIFTING

€ 46.00

41

2565249300
ref: 41

RUBBER,PEDAL

€ 5.50

42

0916012011
ref: 42

WASHER(12.5X20X1)

€ 1.50

43

0833131128
ref: 43
08331-3112A

CIRCLIP

€ 2.00

44

3772009300
ref: 44

TERMINAL BASE,NEUTRAL SWITCH

€ 54.00

45

0928036001
ref: 45

O RING(D:2.4,ID:36.5)

€ 4.50

46

0211205128
ref: 46
02112-05127

SCREW

€ 2.50

47

0832121058
ref: 47
08321-0105A

LOCK WASHER

€ 2.00

48

0832221058
ref: 48
08322-01057

WASHER

€ 2.50

49

0920905011
ref: 49

PIN(5X15.5)

€ 2.00

50

0944004010
ref: 50

SPRING

€ 1.50

51

3665109300
ref: 51

CLAMP,WIRING HARNESS

€ 0.00
