STARTER CLUTCH

XN85D 1983 (D) USA (E03)

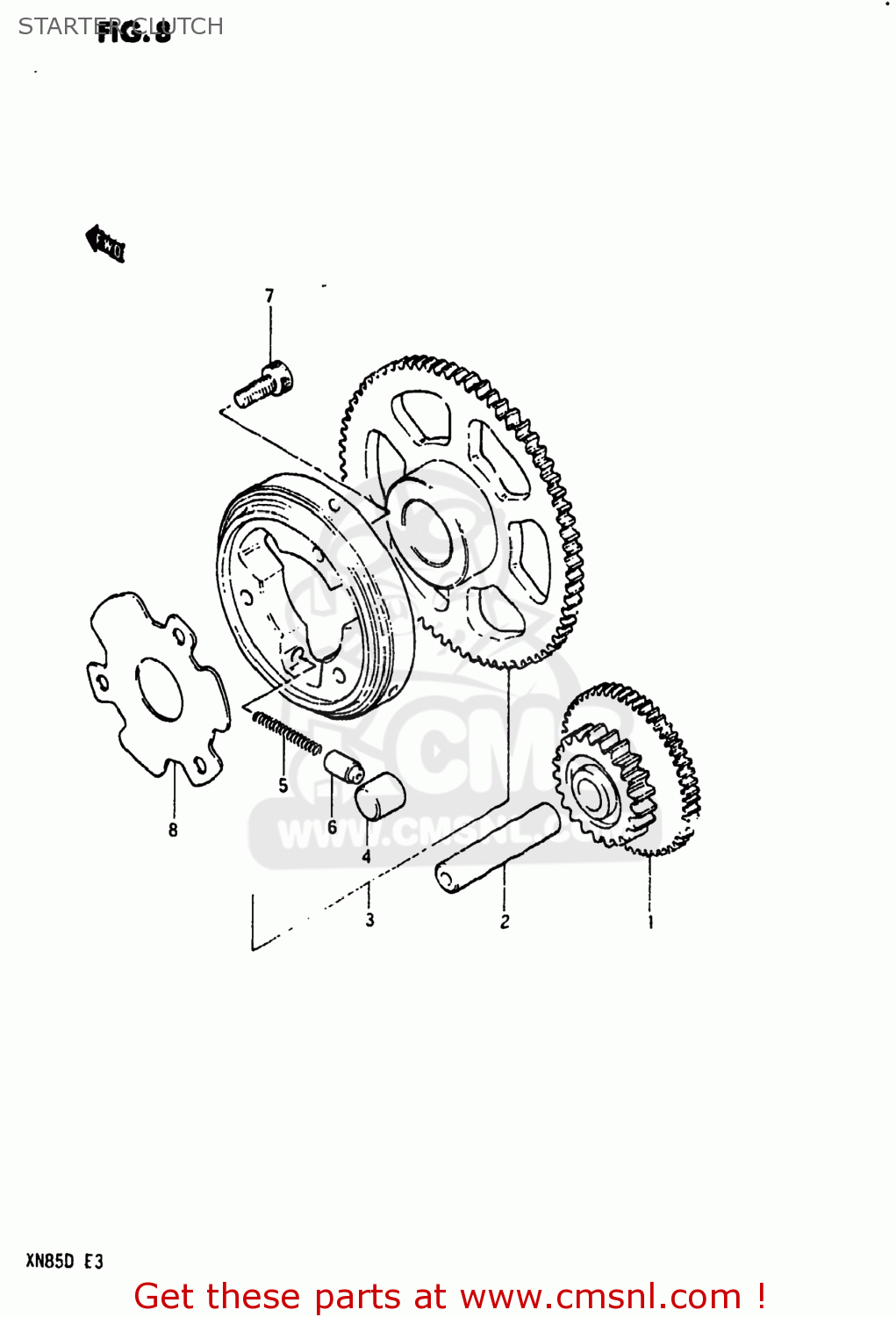

Starter clutch diagram XN85D 1983 (D) USA (E03)

STARTER CLUTCH XN85D 1983 (D) USA (E03)

STARTER CLUTCH XN85D 1983 (D) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1261147000
ref: 1

GEAR,STARTER IDLE

€ 64.50

2

0920613003
ref: 2

PIN(7.4X13X56)

€ 9.00

3

1260009842
ref: 3
12600-09843

CLUTCH SET,STARTER

€ 172.00

4

0926115001
ref: 4

ROLLER(15X13)

€ 3.50

5

0944004015
ref: 5

SPRING

€ 2.50

6

1263331000
ref: 6

PIECE,PUSH

€ 9.00

7

0910608006
ref: 7
07130-0816A

BOLT

€ 3.00

8

1264909301
ref: 8

SHIM,STARTER CLUTCH HUB

€ 8.50
