SHOCK ABSORBER

XN85D 1983 (D) USA (E03)

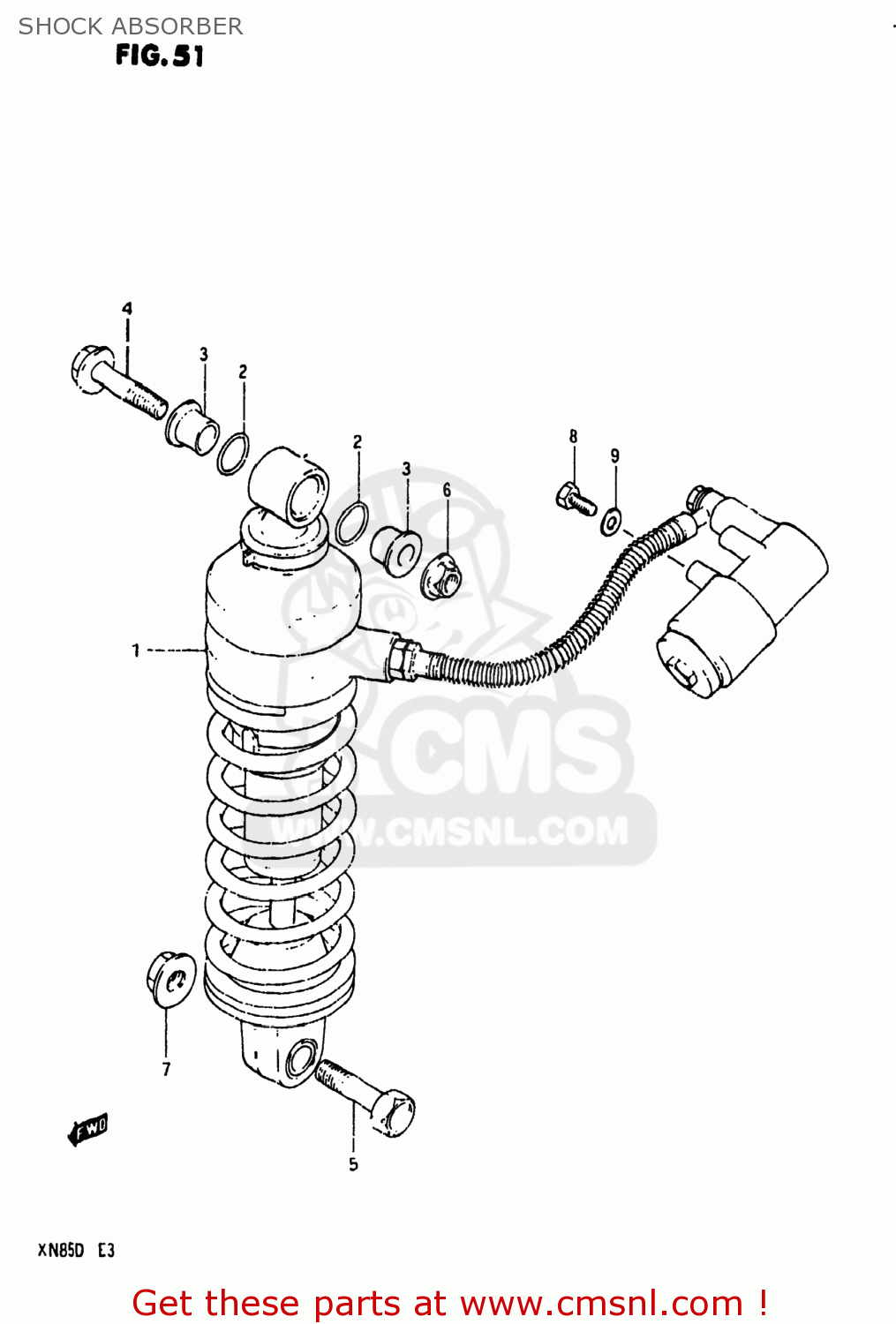

Shock absorber diagram XN85D 1983 (D) USA (E03)

SHOCK ABSORBER XN85D 1983 (D) USA (E03)

SHOCK ABSORBER XN85D 1983 (D) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

6210009310
ref: 1

ABSORBER ASSEMBLY,REAR SHOCK

€ 603.50

2

6268320400
ref: 2

DUST SEAL,LEVER CUSHION UNIT

€ 2.00

3

6268420400
ref: 3

SPACER,LEVER CUSHION UNIT

€ 5.50

4

0910310045
ref: 4

BOLT(10X50)

€ 3.50

5

0910012020
ref: 5

BOLT

€ 3.50

6

0831931108
ref: 6

NUT

€ 3.00

7

0831931128
ref: 7
08319-3112A

NUT 12MM

€ 4.00

8

0912806011
ref: 8

SCREW(6X12)

€ 3.00

9

0832221068
ref: 9
08322-01067

WASHER

€ 2.00
