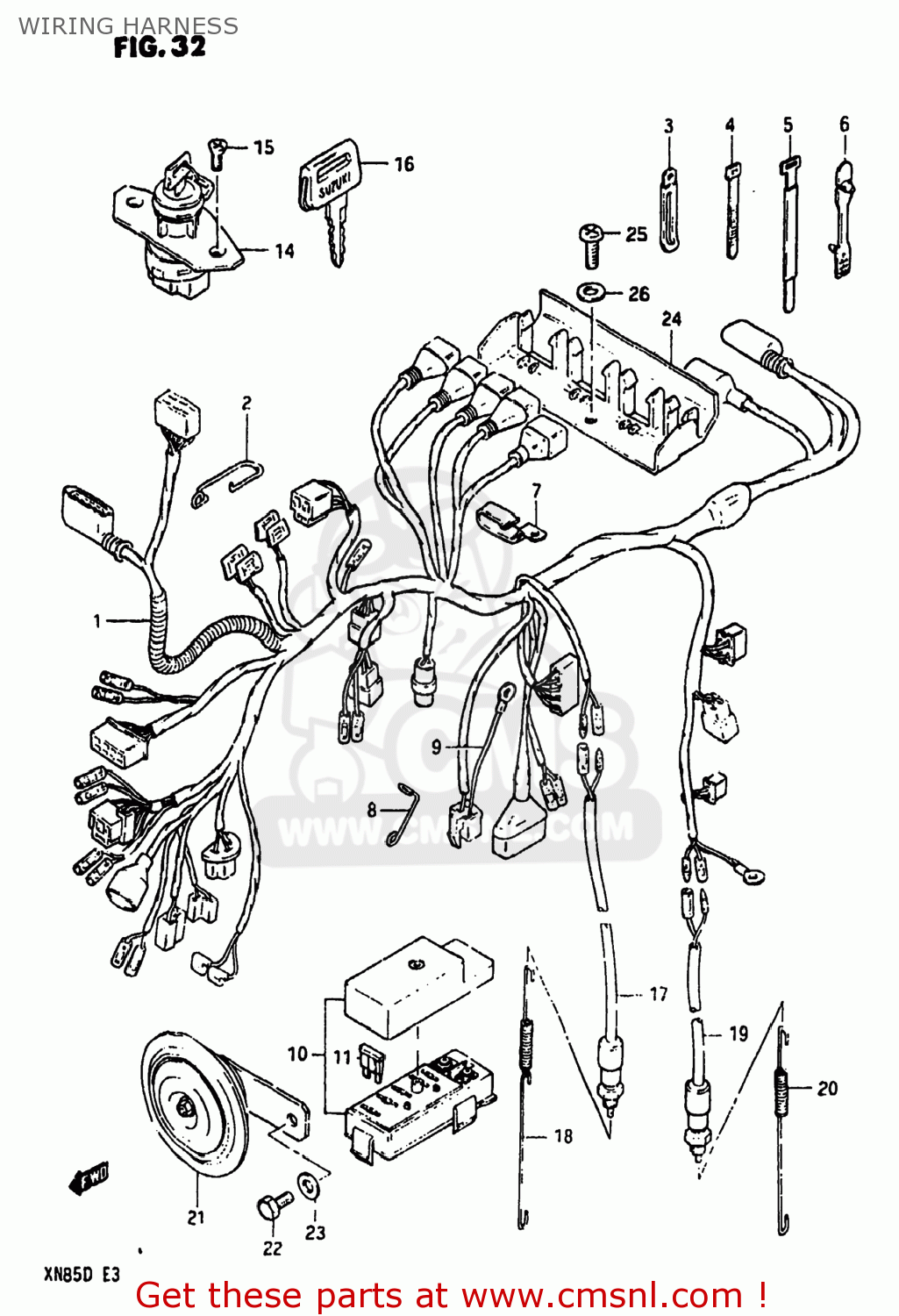

WIRING HARNESS

ref

part #

description

quantity

1

3661009300
ref: 1

HARNESS,WIRING

€ 434.00

2

3661849300
ref: 2
36618-49302

BOOT,WIRING HARNESS

€ 4.50

3-1

0940406412
ref: 3-1
09404-06432

CLAMP

€ 2.50

3-2

0940406414
ref: 3-2
09404-06433

CLAMP

€ 3.00

3-3

0940406419
ref: 3-3
09404-06435

CLAMP

€ 2.50

4

0940708401
ref: 4
09407-14403

CLAMP(L:80)

€ 2.50

5

0940718301
ref: 5

CLAMP

€ 6.00

6

0940705403
ref: 6

CLAMP,L:88

€ 1.50

7

0940306307
ref: 7

CLAMP

€ 4.50

8

3661909300
ref: 8

GUIDE,WIRING HARNESS

€ 0.00

9

3685109300
ref: 9

WIRE

€ 8.50

10

3674009310
ref: 10

BOX ASSEMBLY,FUSE

€ 28.00

11

0948110101
ref: 11

FUSE(10A)

€ 2.50

12

0211206168
ref: 12
02112-06167

SCREW

€ 2.50

13

0832221068
ref: 13
08322-01067

WASHER

€ 2.00

14

3711009300
ref: 14

SWITCH ASSEMBLY,IGNITION

€ 94.00

15

0212205108
ref: 15
02122-05107

SCREW

€ 1.00

16

3714649300
ref: 16

KEY,BLANK

€ 13.00

17

3774004572
ref: 17
37740-48071

SWITCH ASSEMBLY,STOP LAMP

€ 22.00

18

0944306019
ref: 18

SPRING

€ 3.50

19

3784034500
ref: 19

SWITCH ASSEMBLY,SIDE STAND

€ 14.00

20

0944306045
ref: 20
09443-06045-XC0

SPRING

€ 5.50

21

3850249001
ref: 21

HORN ASSY

€ 77.00

22

0110708128
ref: 22
01500-08127

BOLT 8X12

€ 2.50

23

0832211088
ref: 23
08322-01087

WASHER

€ 2.00

24

4745109300
ref: 24

HOLDER, COUPLER

€ 5.00

25

0211206168
ref: 25
02112-06167

SCREW

€ 2.50

26

0832221068
ref: 26
08322-01067

WASHER

€ 2.00

all assemblies
