BRAKE PEDAL

DR-Z110 2003 (K3) USA (E03) DRZ110 DR Z110

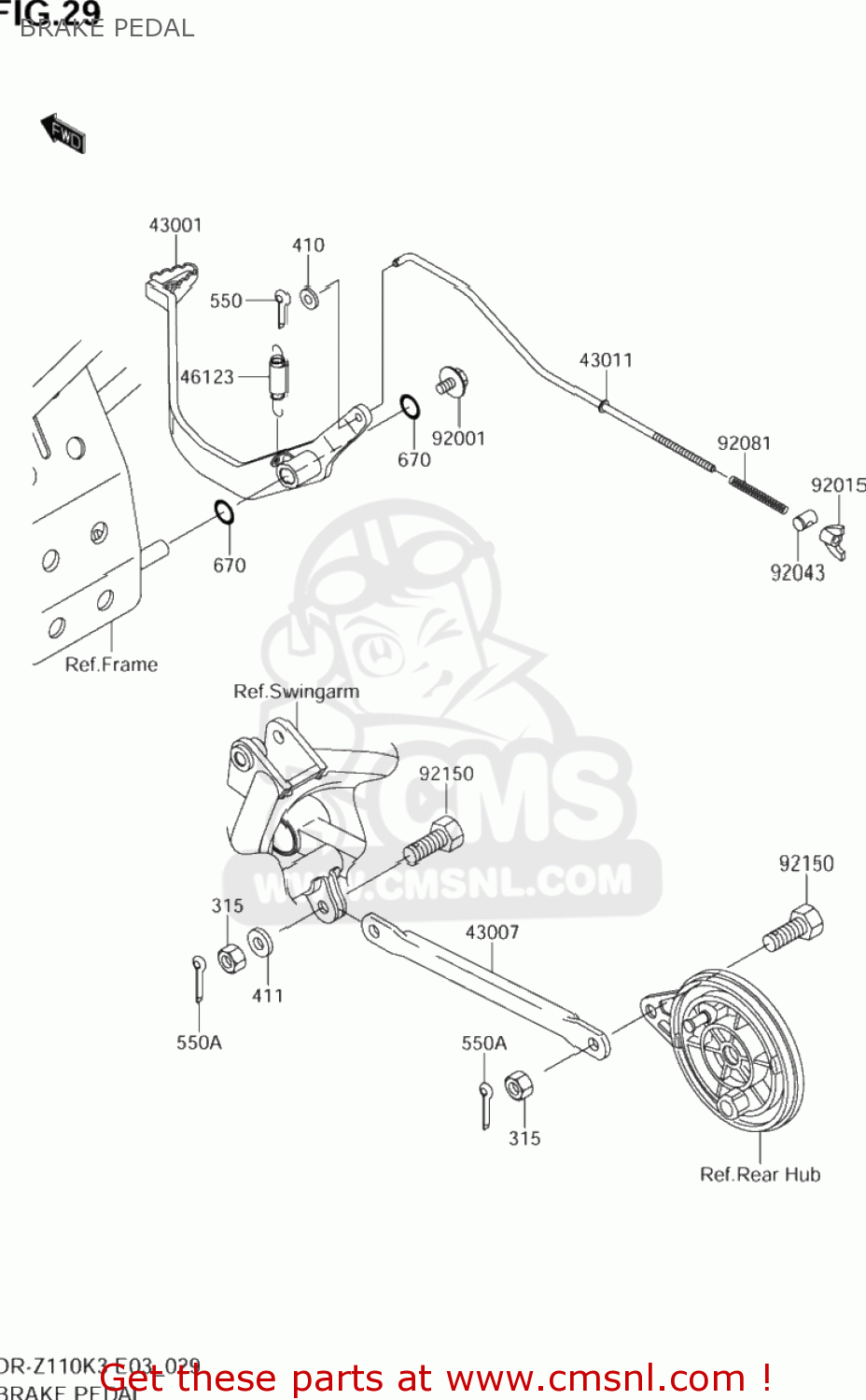

Brake pedal diagram DR-Z110 2003 (K3) USA (E03) DRZ110 DR Z110

prices are in EUR

ref

part #

description

quantity

315

KK315G1000
ref: 315
K315B-A1000

NUT-HEX-FINE,10MM

€ 2.00

410

KK410B0600
ref: 410

WASHER-PLAIN-SMALL,6MM

€ 1.50

411

KK411B1000
ref: 411

WASHER-PLAIN,10MM

€ 2.50

550

KK550D2015
ref: 550
K550A-A2015

PIN COTTER,2.0

€ 1.00

550A

KK550D2020
ref: 550A

PIN-COTTER,2.0X20

€ 0.00

670

KK670B2012
ref: 670

O RING,12MM

€ 3.50

43001

K430011445
ref: 43001

LEVER-BRAKE,PEDAL

€ 45.00

43007

K430071203
ref: 43007

ROD-TORQUE

€ 0.00

43011

K430111186
ref: 43011

ROD-BRAKE

€ 17.50

46123

K461231060
ref: 46123

SPRING-COMP,BRAKE PEDAL RETURN

€ 6.50

92001

K920011034
ref: 92001

BOLT,FLANGED,6X10

€ 9.00

92015

K920154004
ref: 92015

NUT,WING,6MM

€ 0.00

92043

KK92043039
ref: 92043
K9204-30147

PIN,BRAKE ROD

€ 4.50

92081

K920811688
ref: 92081

SPRING,BRAKE ROD

€ 5.50

92150

K921501873
ref: 92150

BOLT,10X25

€ 0.00
