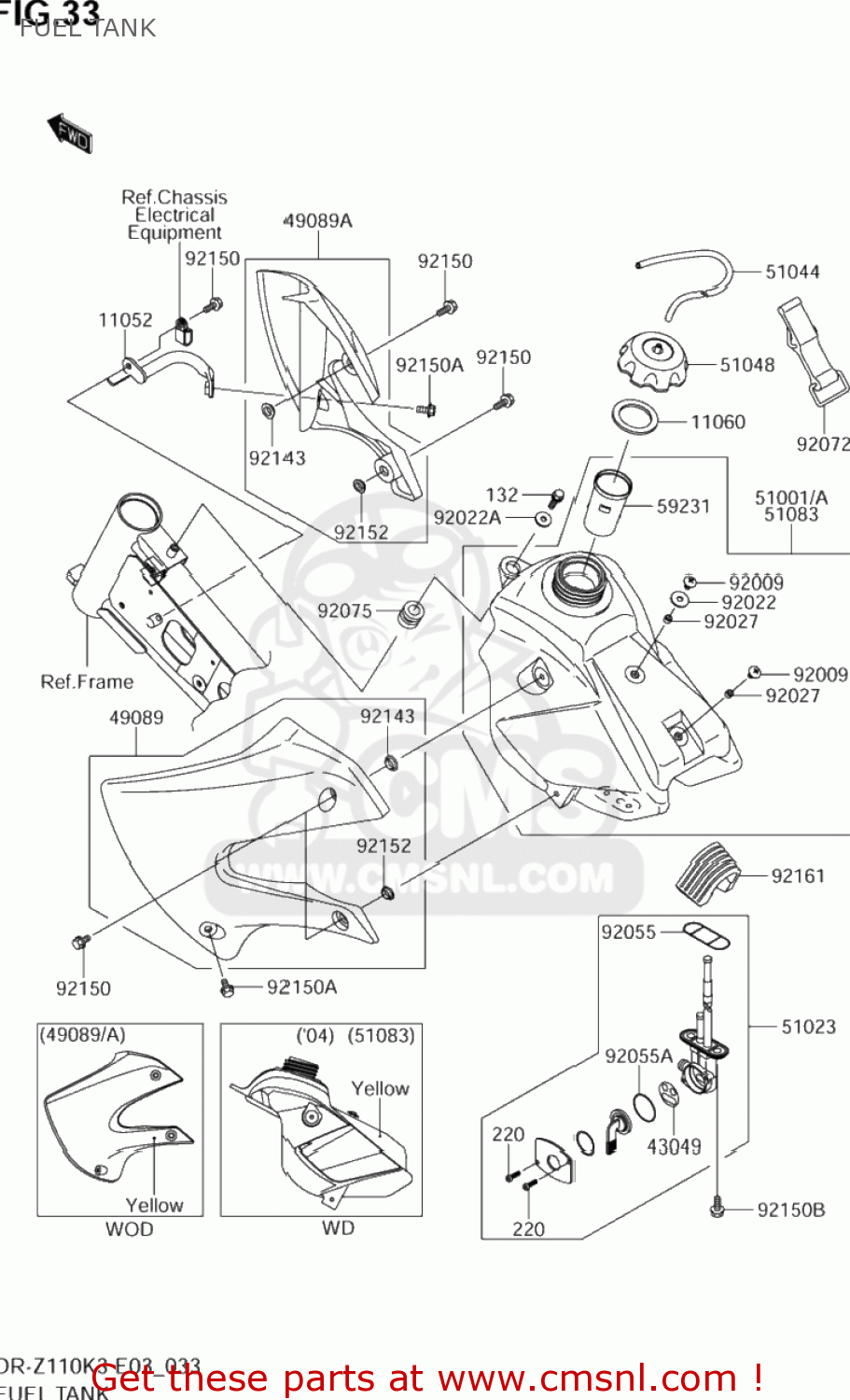

FUEL TANK

ref

part #

description

quantity

132

KK132G0614
ref: 132
K132B-A0614

BOLT-FLANGED-SMALL

€ 1.50

220

KK220B0308
ref: 220

SCREW-PAN-CROS,3X8

€ 1.50

11052

K110521639
ref: 11052

BRACKET,SHROUD,RH

€ 17.00

11060

K110601340
ref: 11060

GASKET,FUEL TANK CAP (NAS)

€ 5.50

43049

K430491091
ref: 43049

PACKING,TAP VALVE (NAS)

€ 5.00

49089

K490891144267
ref: 49089

SHROUD-ENGINE,LH

€ 22.00

49089A

K490891145267
ref: 49089A

SHROUD-ENGINE,RH

€ 22.00

51001

K510011676267
ref: 51001

TANK-COMP-FUEL

€ 276.50

51001A

KK5100116766Z
ref: 51001A

TANK-COMP-FUEL

€ 253.00

51023

K510231342
ref: 51023

TAP-ASSY,FUEL

€ 55.00

51044

K510441185
ref: 51044

TUBE-ASSY

€ 9.50

51048

K510481124
ref: 51048
K5104-80014

CAP ASSY TANK,

€ 43.50

51083

K510835100267
ref: 51083

TANK-COMP-FUEL,C.YELLOW

€ 308.50

59231

K592311096
ref: 59231

FILLER

€ 4.50

92009

K920091530
ref: 92009

SCREW,6X10

€ 3.00

92022

KK92022125
ref: 92022

WASHER,6.5X20X1.6

€ 1.00

92022A

K920221690
ref: 92022A

WASHER,6.5X24X2

€ 3.50

92027

K920272096
ref: 92027

COLLAR,6.2X7.8X5

€ 1.00

92055

K920551348
ref: 92055

RING-O,FUEL TAP PACKING (NAS)

€ 0.00

92055A

K920551419
ref: 92055A

RING-O,TAP LEVER

€ 4.50

92072

K920721229
ref: 92072

BAND,FUEL TANK

€ 10.50

92075

K920751787
ref: 92075

DAMPER

€ 3.50

92143

K921431196
ref: 92143

COLLAR

€ 4.50

92150

K921501435
ref: 92150

BOLT,6X12

€ 2.50

92150A

K921501506
ref: 92150A

BOLT,FLANGED,6X16

€ 4.50

92150B

K921501599
ref: 92150B

BOLT,6X12

€ 2.50

92152

K921521235
ref: 92152

COLLAR

€ 3.50

92161

K921611077
ref: 92161

DAMPER,FUEL TANK,RR

€ 9.50

all assemblies
