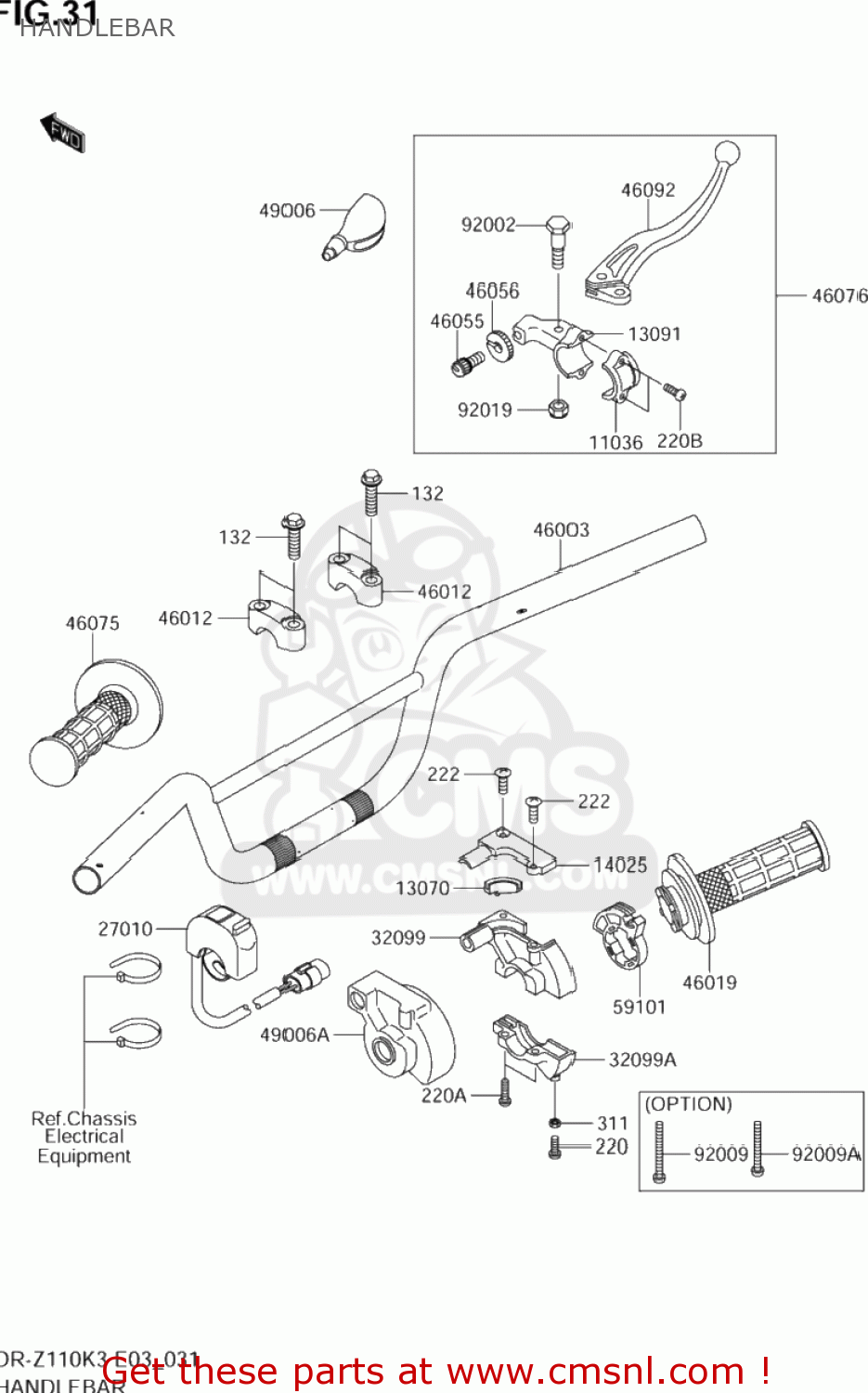

HANDLEBAR

ref

part #

description

quantity

132

KK132G0830
ref: 132
K132B-A0830

BOLT FLANGED,S

€ 1.50

220

KK220C0512
ref: 220
K220A-B0512

SCREW-PAN-CROS,5X12,BLACK

€ 1.50

220A

KK220C0518
ref: 220A
K220A-B0518

SCREW-PAN-CROS,5X18

€ 1.50

220B

KK220F0514
ref: 220B

SCREW-PAN-CROSS

€ 0.00

222

KK222E0412
ref: 222

SCREW-CSK-RD-CROS

€ 2.00

311

KK311C0500
ref: 311
K311A-B0500

NUT-HEX

€ 1.50

11036

K110361297
ref: 11036

BRACKET-A,LEVER HOLDER

€ 0.00

13070

K130701117
ref: 13070

GUIDE,THROTTLE PEACE

€ 5.50

13091

K130911135
ref: 13091

HOLDER,BRAKE LEVER

€ 14.00

14025

K140251646
ref: 14025

COVER,THROTTLE CASE UPP

€ 7.50

27010

K270101332
ref: 27010

SWITCH,ENGINE STOP

€ 56.50

32099

K320991036
ref: 32099

CASE,THROTTLE UPP

€ 20.00

32099A

K320991220
ref: 32099A

CASE,THROTTLE,LWR

€ 0.00

46003

KK460030023CE
ref: 46003
KK460-03005-6CE

HANDLE

€ 56.50

46012

K460121191
ref: 46012

HOLDER-HANDLE,UPP

€ 16.00

46019

K460191054
ref: 46019

GRIP-ASSY,THROTTLE

€ 29.00

46055

KK46055010
ref: 46055

SCREW,CABLE ADJUST,7MM

€ 0.00

46056

KK46056006
ref: 46056

NUT,CABLE ADJUST

€ 0.00

46075

K460751024
ref: 46075

GRIP,LH

€ 16.50

46076

K460761107
ref: 46076
K4607-60073

LEVER-ASSY-GRIP,RH

€ 49.50

46092

K460921048
ref: 46092

LEVER-GRIP,BRAKE

€ 15.50

49006

K490061017
ref: 49006

BOOT,LEVER HOLDER

€ 17.50

49006A

K490061097
ref: 49006A

BOOT,THROTTLE CASE

€ 17.00

59101

K591011104
ref: 59101

REEL,THROTTLE

€ 0.00

92002

K920021150
ref: 92002

BOLT,LEVER SET

€ 0.00

92009

K920091989
ref: 92009

SCREW,5X47

€ 0.00

92009A

K920091998
ref: 92009A

SCREW,5X42

€ 0.00

92019

KK92019008
ref: 92019

NUT,LOCK,6MM

€ 3.50

all assemblies
