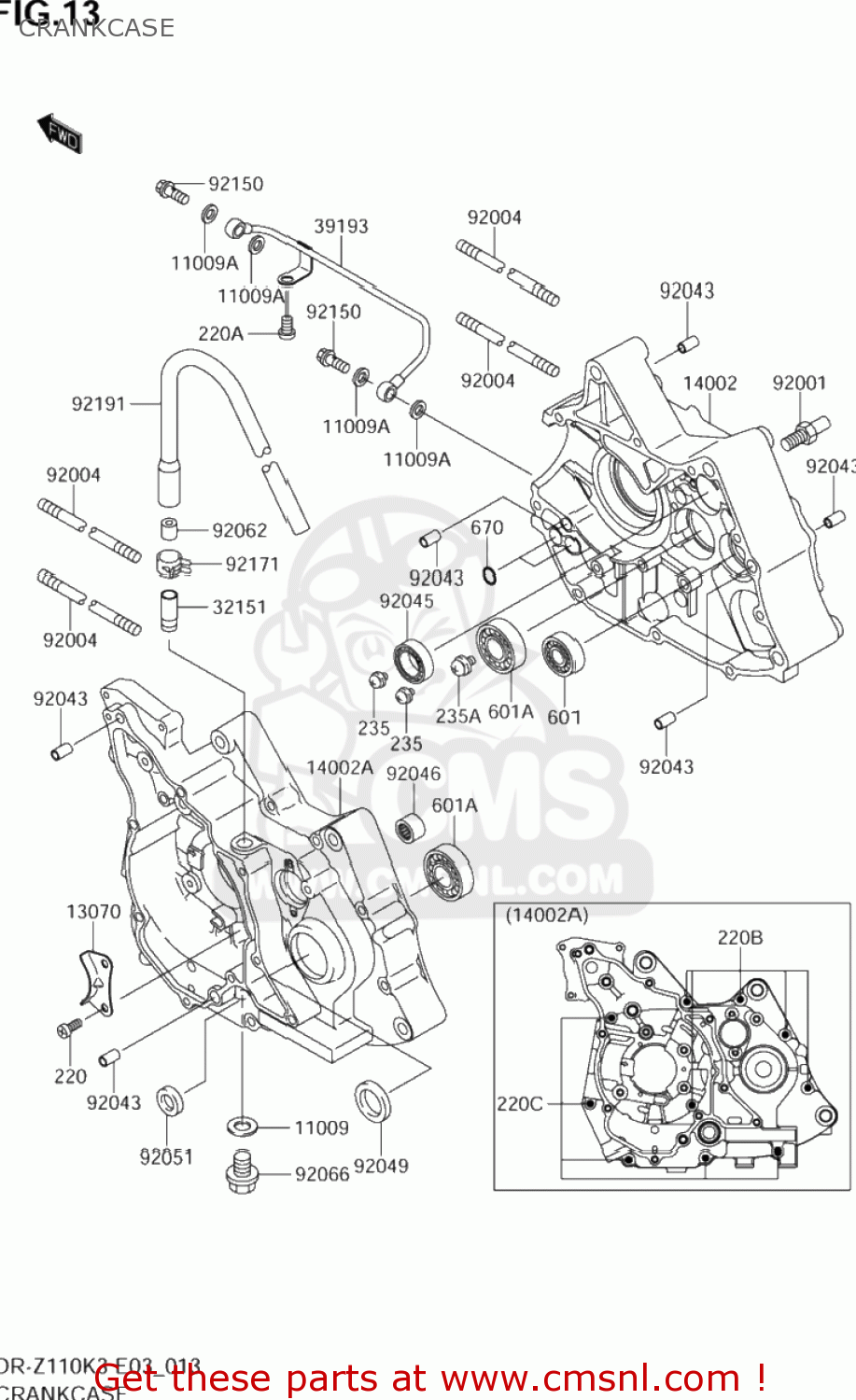

CRANKCASE

ref

part #

description

quantity

220

KK220B0614
ref: 220
K220A-A0614

SCREW-PAN-CROS,6X14

€ 1.50

220A

KK220X0612
ref: 220A
K220A-D0612

SCREW-PAN-CROS

€ 1.50

220B

KK220X0650
ref: 220B
K220A-D0650

SCREW-PAN-CROS

€ 1.50

220C

KK220X0675
ref: 220C

SCREW-PAN-CROS

€ 0.00

235

KK235B0510
ref: 235

SCREW-PAN-WP-CROS

€ 0.00

235A

KK235B0614
ref: 235A

SCREW-PAN-WP-CROS

€ 0.00

601

KK601A6201
ref: 601

BEARING-BALL

€ 8.00

601A

KK601A6203
ref: 601A

BEARING-BALL,#6203

€ 12.00

670

KK670B1510
ref: 670

O RING,10MM

€ 4.00

11009

K110091332
ref: 11009
K1106-10421

GASKET,DRAIN PLUG (NAS)

€ 3.50

11009A

K110091344
ref: 11009A

GASKET,OIL PIPE,8.2X14X1.0 (NAS)

€ 6.00

13070

K130701319
ref: 13070

GUIDE

€ 0.00

14002

K140021971
ref: 14002

CRANKCASE,RH

€ 0.00

14002A

K140021973
ref: 14002A
K1408-00106

CRANKCASE,LH

€ 94.00

32151

K321511961
ref: 32151

PIPE

€ 4.00

39193

K391931042
ref: 39193

PIPE-OIL

€ 0.00

92001

K920011455
ref: 92001

BOLT,RETURN SPRING

€ 3.00

92004

K920041281
ref: 92004

STUD,8X208

€ 0.00

92043

K920431263
ref: 92043

PIN,6.2X8X14

€ 2.50

92045

K920451171
ref: 92045

BEARING-BALL,6804

€ 23.00

92046

K920461148
ref: 92046

BEARING-NEEDLE,HK1312

€ 16.50

92049

K920491048
ref: 92049

SEAL-OIL,SC22325

€ 6.50

92051

KK92051005
ref: 92051

SEAL-OIL,TB13225.5

€ 6.50

92062

K920621090
ref: 92062

NOZZLE,5X11.5X12

€ 0.00

92066

K920661174
ref: 92066

PLUG,OIL DRAIN,12X15

€ 6.50

92150

K921501556
ref: 92150

BOLT,BANJO,8X20

€ 7.00

92171

K921711055
ref: 92171

CLAMP

€ 0.00

92191

K921911724
ref: 92191

TUBE,BREATHER

€ 0.00
