KICKSTARTER MECHANISM

DR-Z110 2003 (K3) USA (E03) DRZ110 DR Z110

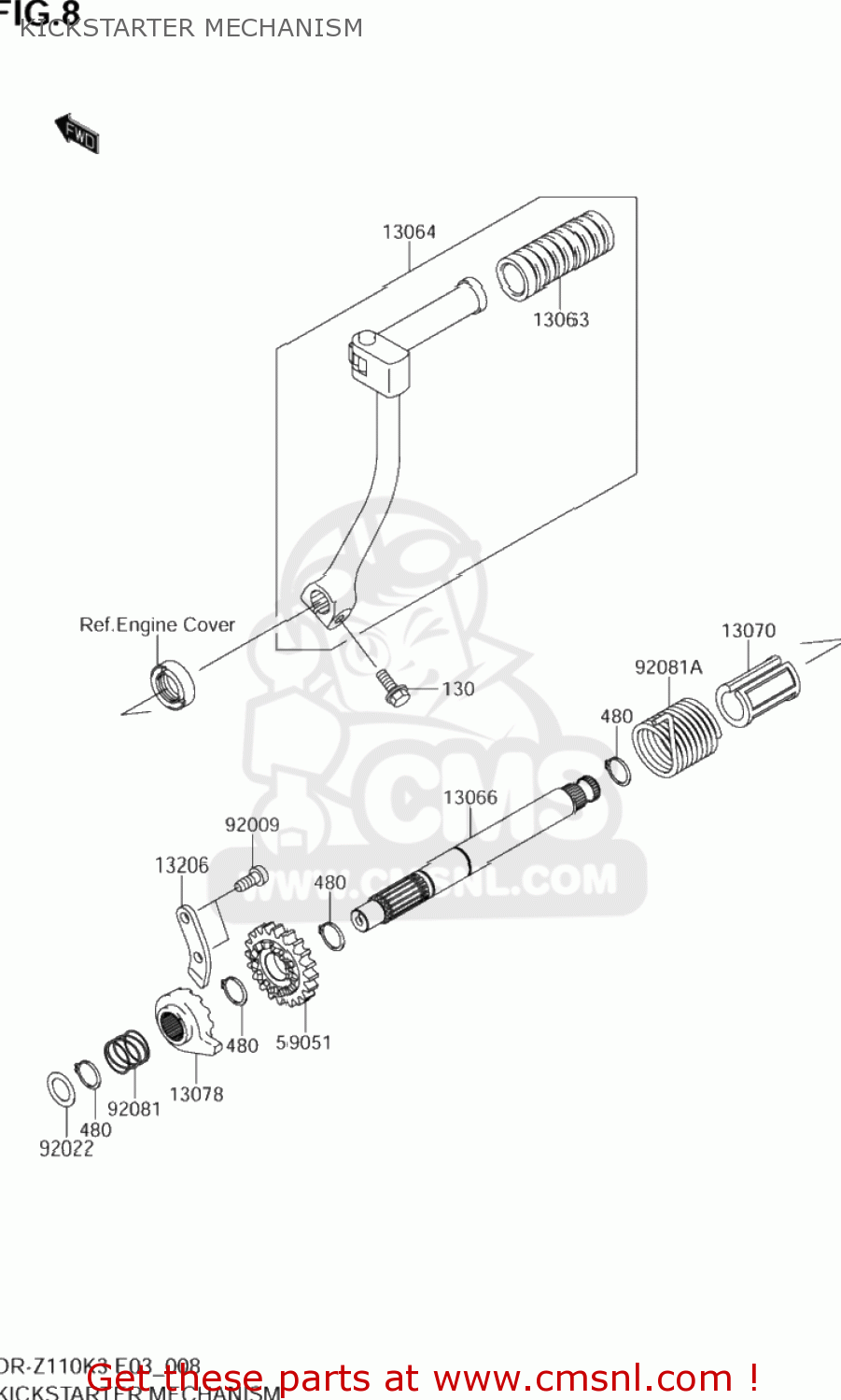

Kickstarter mechanism diagram DR-Z110 2003 (K3) USA (E03) DRZ110 DR Z110

prices are in EUR

ref

part #

description

quantity

130

KK130P0622
ref: 130

BOLT-FLANGED

€ 0.00

480

KK480J1600
ref: 480

CIRCLIP-TYPE-C,16MM

€ 1.50

13063

KK13063002
ref: 13063

DAMPER,PEDAL

€ 4.50

13064

K130640012
ref: 13064

LEVER-ASSY-KICK

€ 0.00

13066

K130661108
ref: 13066

SHAFT-KICK

€ 51.00

13070

K130701035
ref: 13070

GUIDE,KICK SHAFT

€ 5.00

13078

K130781069
ref: 13078

RATCHET

€ 22.50

13206

K132061006
ref: 13206

GUIDE-KICK

€ 7.00

59051

K590511404
ref: 59051

GEAR-SPUR,KICK STARTER,22T

€ 36.00

92009

K920091104
ref: 92009

SCREW,TAPPING

€ 3.50

92022

K920221224
ref: 92022

WASHER,13.2X20X0.5

€ 3.00

92081

KK92081122
ref: 92081

SPRING,RATCHET

€ 5.50

92081A

K920811276
ref: 92081A

SPRING,KICK STARTER

€ 8.00
