CYLINDER/PISTON

DR-Z110 2003 (K3) USA (E03) DRZ110 DR Z110

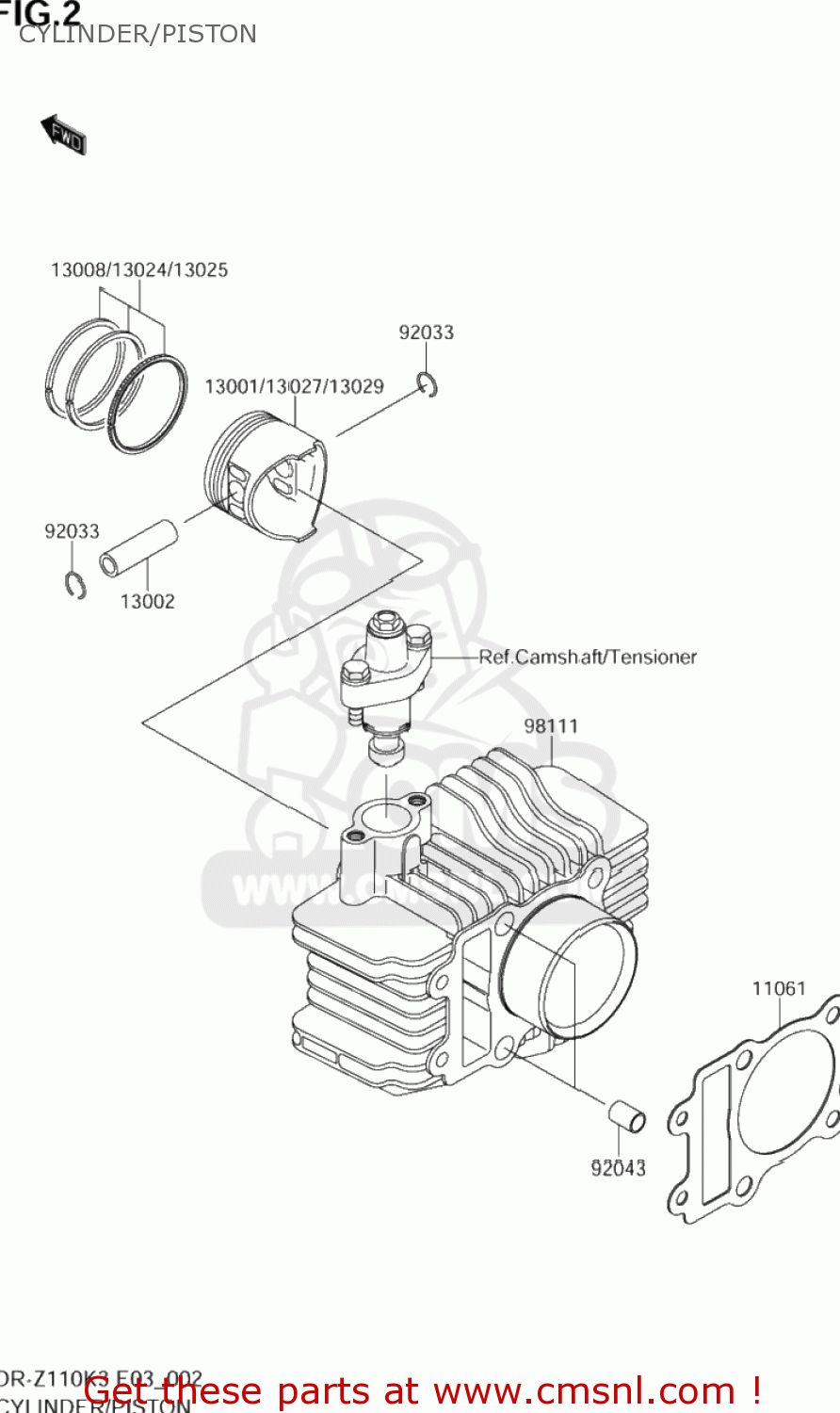

Cylinder/piston diagram DR-Z110 2003 (K3) USA (E03) DRZ110 DR Z110

prices are in EUR

ref

part #

description

quantity

11061

K110610124
ref: 11061

GASKET (NAS)

€ 2.50

13001

K130011512
ref: 13001

PISTON-ENGINE,STD

€ 0.00

13002

K130021123
ref: 13002
K1300-20031

PIN-PISTON

€ 6.00

13008

K130081189
ref: 13008

RING-SET-PISTON,STD

€ 36.00

13024

K130241119
ref: 13024

RING-SET-PISTON LL,O/S 1.00

€ 0.00

13025

K130251148
ref: 13025

RING-SET-PISTON L,O/S 0.50

€ 36.50

13027

K130271198
ref: 13027

PISTON-ENGINE LL,O/S 1.00

€ 0.00

13029

K130291255
ref: 13029

PISTON-ENGINE L,O/S 0.50

€ 40.00

92033

K920331072
ref: 92033

RING-SNAP

€ 2.50

92043

K920431264
ref: 92043

PIN,8.2X10X14

€ 2.50

98111

K981111083
ref: 98111

CYLINDER-COMP-ENGINE

€ 0.00

CYLINDER/PISTON
