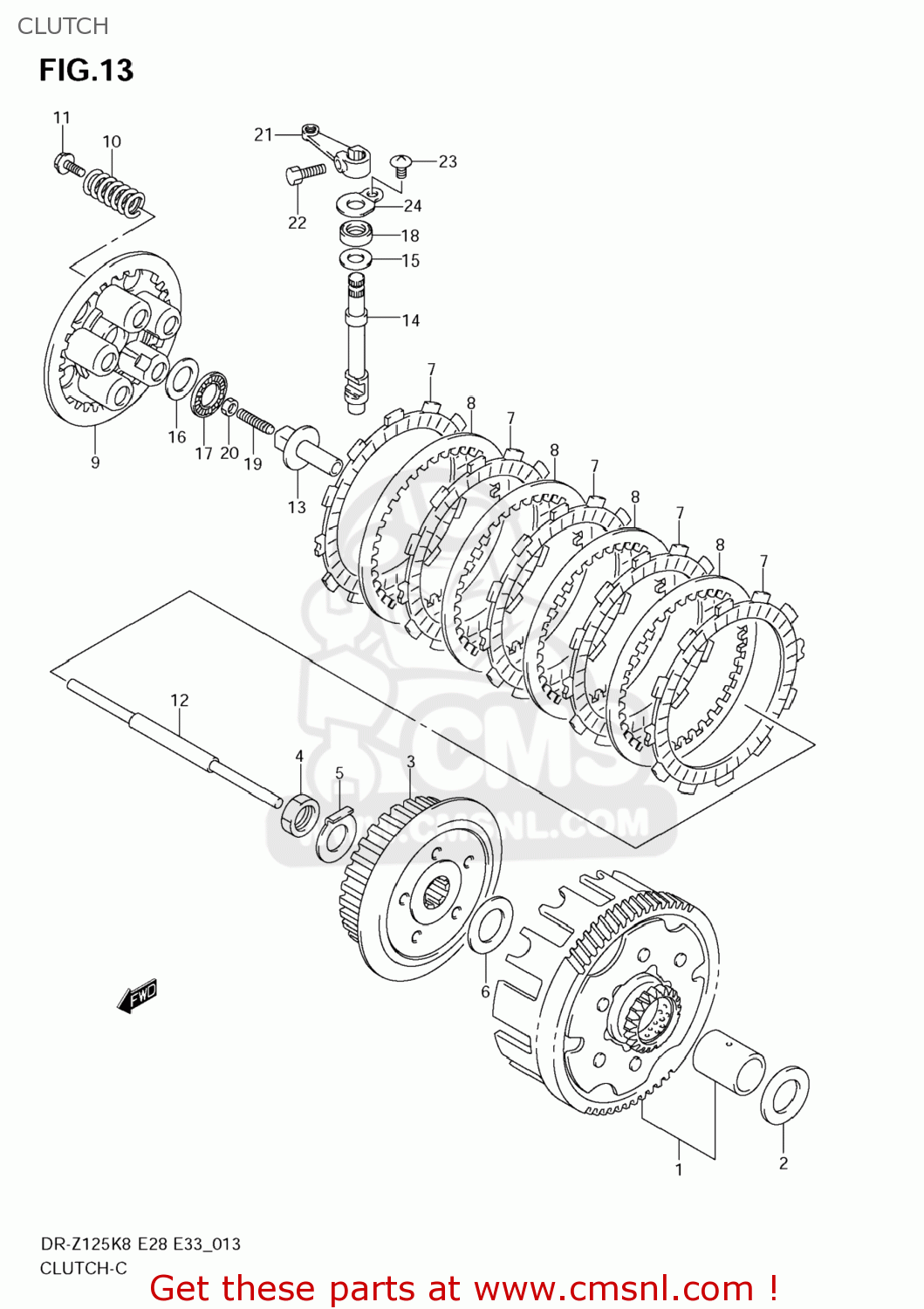

CLUTCH

ref

part #

description

quantity

1

2120044812
ref: 1

GEAR ASSY,PRI DRIVEN(NT:59)

€ 166.00

2

0821120353
ref: 2

WASHER

€ 2.50

3

2141105200
ref: 3

HUB,CLUTCH SLEEVE

€ 47.00

4

0914016001
ref: 4

NUT

€ 4.50

5

0916916003
ref: 5

WASHER

€ 2.00

6

0821120352
ref: 6

WASHER

€ 3.00

7

2144125C01
ref: 7

PLATE,CLUTCH DRIVE (NAS)

€ 12.00

8

2145119A00
ref: 8

PLATE,CLUTCH DRIVEN (NAS)

€ 4.50

9

2146214103
ref: 9

DISC,CLUTCH PRESSURE

€ 16.00

10

0944015021
ref: 10

SPRING

€ 4.50

11

0911605020
ref: 11

BOLT(5X16)

€ 2.50

12

2311005203
ref: 12

ROD,CLUTCH PUSH

€ 11.00

13

2312138201
ref: 13

PIECE,CLUTCH PUSH

€ 17.00

14

2312205200
ref: 14

CAMSHAFT,CLUTCH RELEASE

€ 31.00

15

0918110195
ref: 15

SHIM(10X20X1)

€ 2.00

16

0916015045
ref: 16

WASHER(15.5X28X1)

€ 4.00

17

0926315003
ref: 17

BEARING(15X28X2)

€ 7.00

18

0928210012
ref: 18

SEAL,OIL(10X20X6)

€ 7.50

19

0913406010
ref: 19

SCREW(6X25)

€ 3.00

20

0914006023
ref: 20

NUT

€ 2.00

21

2327146010
ref: 21

ARM,CLUTCH RELEASE

€ 14.50

22

015000616A
ref: 22

BOLT

€ 2.00

23

021420610A
ref: 23

SCREW

€ 2.00

24

2311705200
ref: 24

RETAINER,CL RLSE OIL SEAL

€ 3.50

all assemblies
