FRONT FENDER

DR-Z125L 2010 (L0) USA (E03) DRZ125L DR Z125L

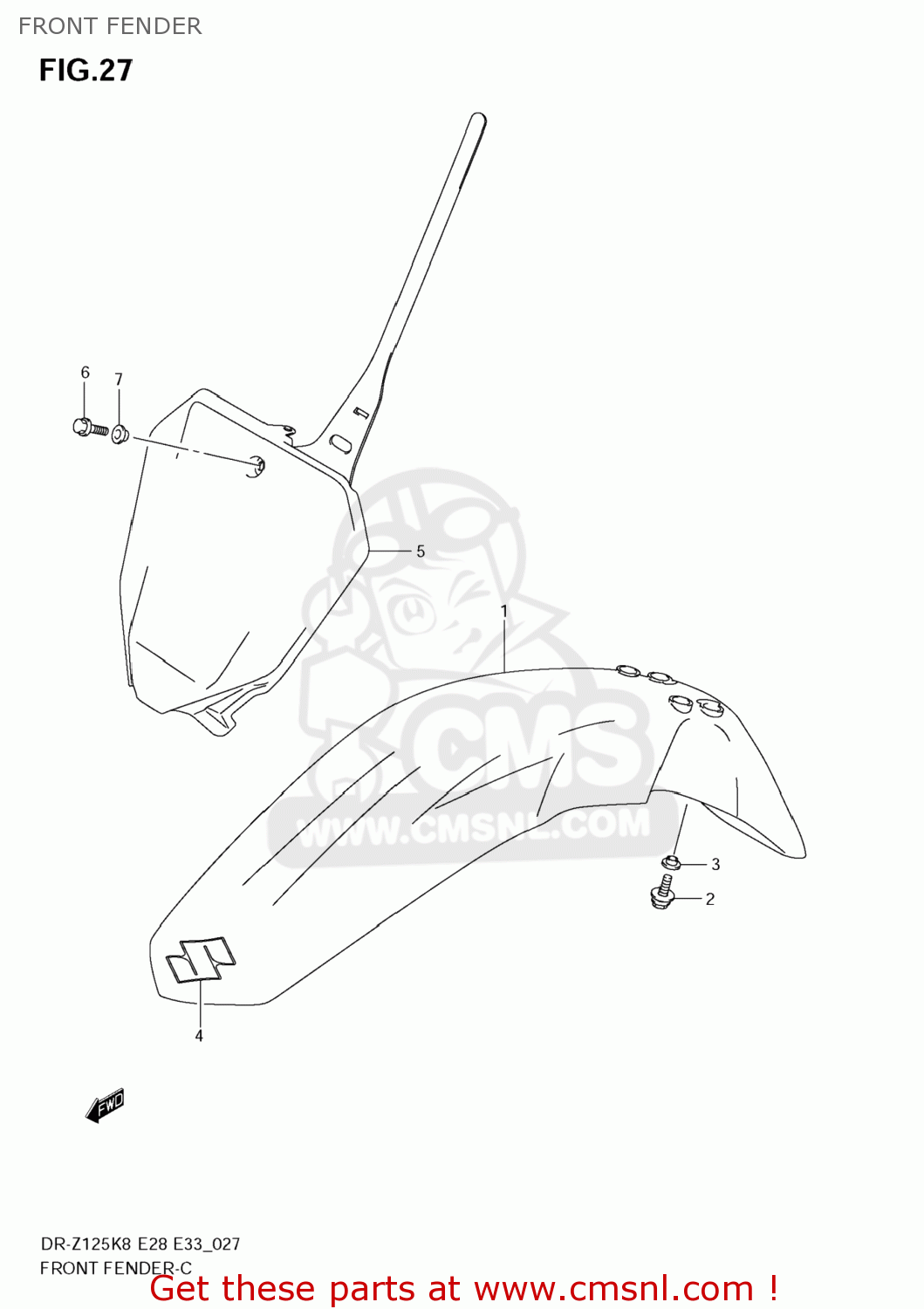

Front fender diagram DR-Z125L 2010 (L0) USA (E03) DRZ125L DR Z125L

FRONT FENDER DR-Z125L 2010 (L0) USA (E03) DRZ125L DR Z125L

FRONT FENDER DR-Z125L 2010 (L0) USA (E03) DRZ125L DR Z125L

prices are in EUR

ref

part #

description

quantity

1-1

5311108G50YU1
ref: 1-1

FENDER,FR

€ 66.00

1-2

5311108G50019
ref: 1-2

FENDER,FR

€ 80.00

2

0911606170
ref: 2

BOLT(6X16)

€ 3.00

3

0916906073
ref: 3

WASHER

€ 4.00

4

6864143EK0YCF
ref: 4

EMBLEM,S

€ 8.00

5

9491108G0030H
ref: 5

PLATE,NUMBER FR

€ 33.50

6

015470616A
ref: 6

BOLT

€ 2.00

7

0916906071
ref: 7

WASHER

€ 2.50
