FUEL TANK COVER (MODEL K9)

DR-Z125L 2010 (L0) USA (E03) DRZ125L DR Z125L

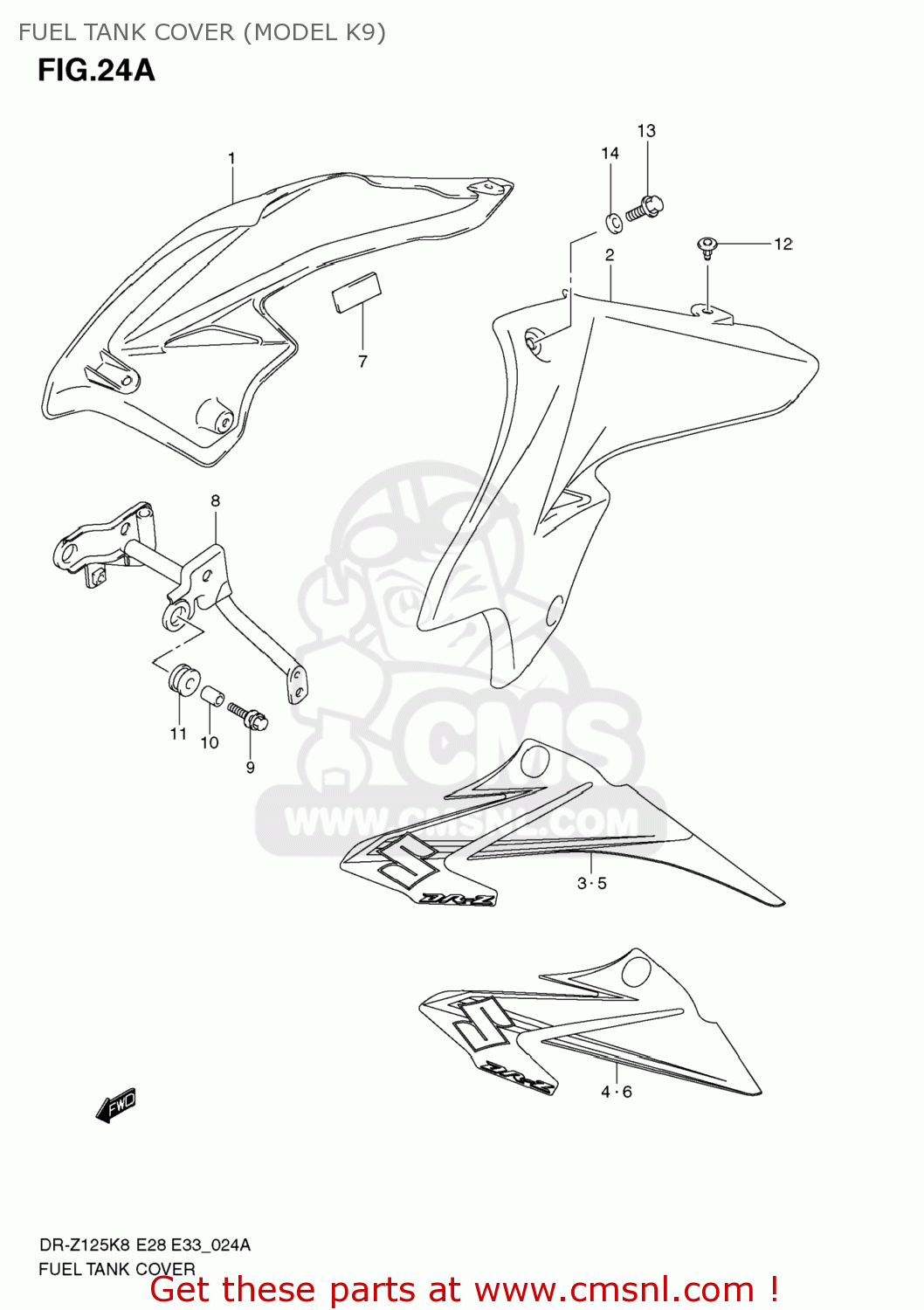

Fuel tank cover (model k9) diagram DR-Z125L 2010 (L0) USA (E03) DRZ125L DR Z125L

prices are in EUR

ref

part #

description

quantity

1-1

4427108GA0YU1
ref: 1-1

COVER,FUEL TANK,R

€ 26.50

1-2

4427108GA0019
ref: 1-2

COVER,FUEL TANK,R

€ 35.00

2-1

4428108GA0YU1
ref: 2-1

COVER,FUEL TANK,L

€ 26.50

2-2

4428108GA0019
ref: 2-2

COVER,FUEL TANK,L

€ 35.00

6811508GC0FYF
ref: 3

TAPE,FUEL TANK COVER,R

€ 80.50

6811508GB0GGL
ref: 4

TAPE,FUEL TANK COVER,R

€ 80.50

6811608GC0FYF
ref: 5

TAPE,FUEL TANK COVER,L

€ 80.50

6811608GB0GGL
ref: 6

TAPE,FUEL TANK COVER,L

€ 80.50

4429414H00
ref: 7

CUSHION,FUEL TANK COVER

€ 3.00

4416008GA0
ref: 8

BRACKET,FUEL TANK FR

€ 83.00

0911606186
ref: 9

BOLT(6X25)

€ 2.50

0918006268
ref: 10

SPACER(6.5X9X13.5)

€ 2.00

4451204F00
ref: 11

CUSHION,FUEL TANK SIDE

€ 3.00

09409083085ES
ref: 12

CLIP(BLACK)

€ 2.00

015470616A
ref: 13

BOLT

€ 2.00

0916906053
ref: 14

WASHER

€ 2.00

FUEL TANK COVER (MODEL K9)
