ELECTRICAL

DR-Z125L 2010 (L0) USA (E03) DRZ125L DR Z125L

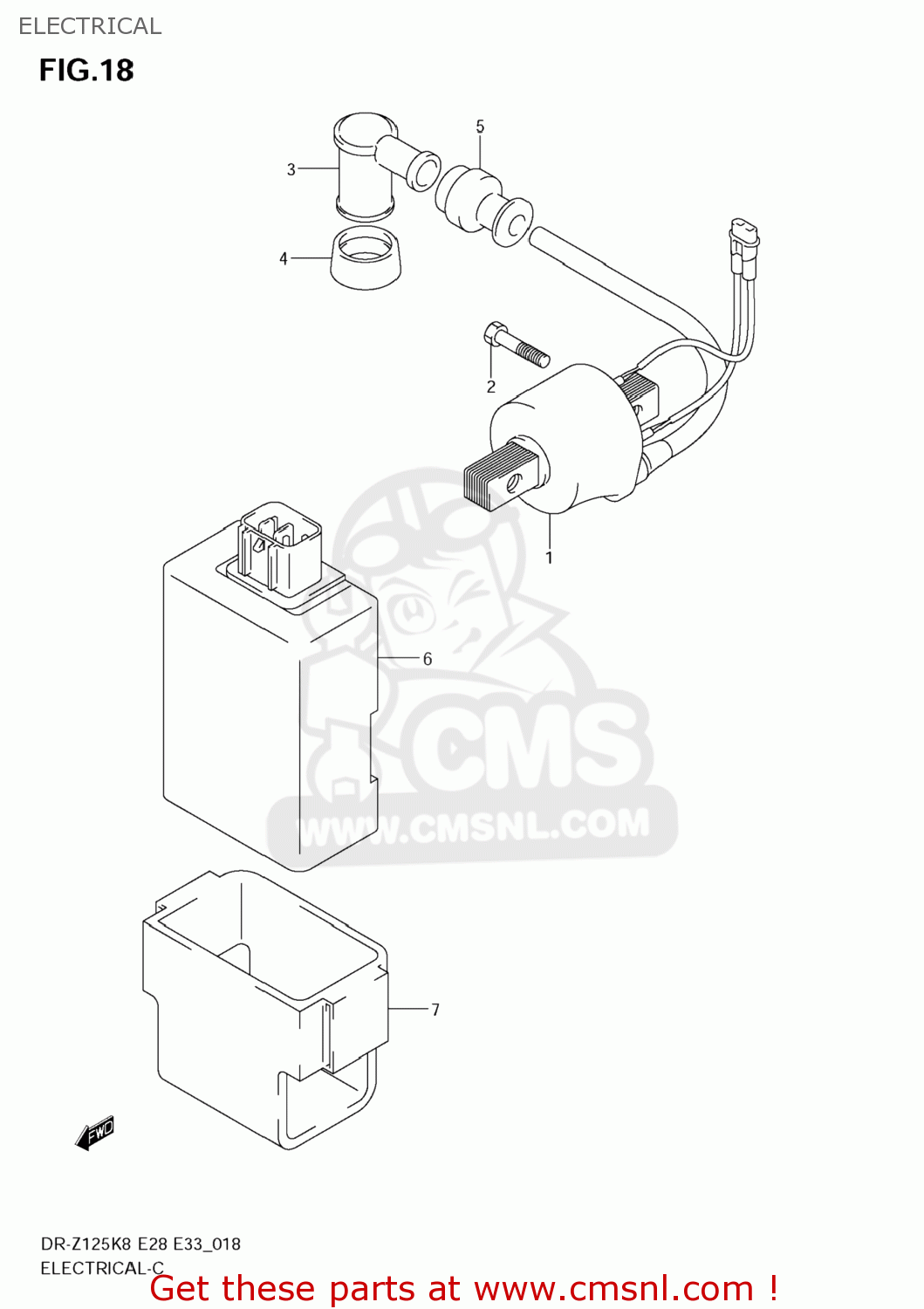

Electrical diagram DR-Z125L 2010 (L0) USA (E03) DRZ125L DR Z125L

ELECTRICAL DR-Z125L 2010 (L0) USA (E03) DRZ125L DR Z125L

ELECTRICAL DR-Z125L 2010 (L0) USA (E03) DRZ125L DR Z125L

prices are in EUR

ref

part #

description

quantity

1

3341008G00
ref: 1

COIL ASSY,IGNITION

€ 65.00

2

015470620B
ref: 2

BOLT

€ 2.50

3

3351022010
ref: 3
33510-97313

CAP ASSY,SPARK PLUG

€ 16.50

4

3354147D00
ref: 4

SEAL,SPARK PLUG

€ 7.00

5

3354238B00
ref: 5

SEAL,HIGH TENSION CORD

€ 4.50

6

3290008G00
ref: 6

CDI UNIT

€ 286.50

7

3298008G00
ref: 7

CUSHION,CDI UNIT

€ 8.50
