FRONT MASTER CYLINDER (DR-Z125L)

DR-Z125L 2010 (L0) USA (E03) DRZ125L DR Z125L

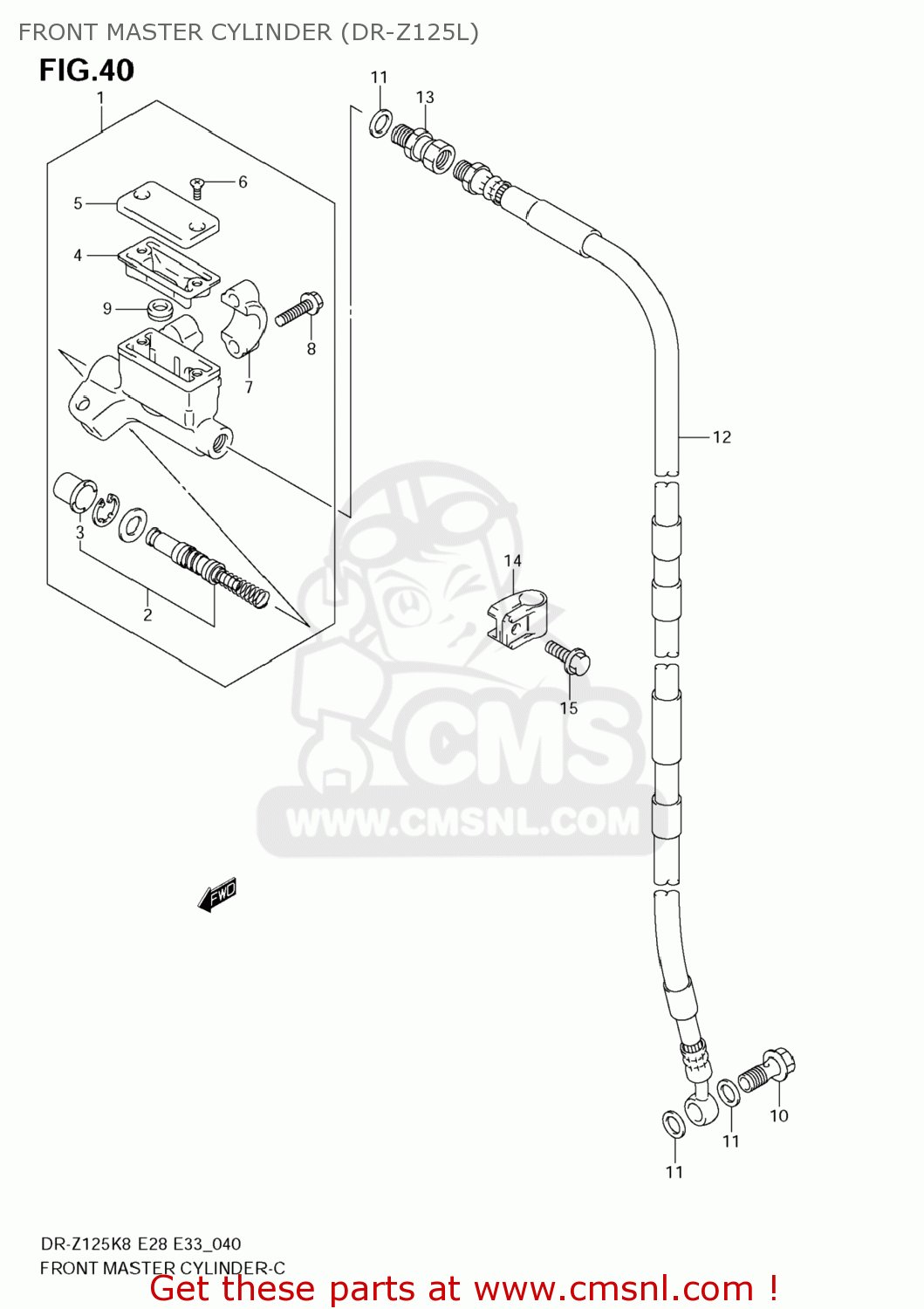

Front master cylinder (dr-z125l) diagram DR-Z125L 2010 (L0) USA (E03) DRZ125L DR Z125L

prices are in EUR

ref

part #

description

quantity

5960027C01
ref: 1

CYLINDER ASSY,FR MASTER

€ 231.00

5960027820
ref: 2

PISTON & CUP SET

€ 30.00

5966644300
ref: 3

BOOT

€ 6.00

5966714500
ref: 4

DIAPHRAGM

€ 6.50

5966927C01
ref: 5

CAP

€ 10.00

6968949300
ref: 6

SCREW

€ 1.50

5967127C00
ref: 7

HOLDER

€ 9.50

5967527C00
ref: 8

BOLT

€ 2.50

5974814500
ref: 9

SEPARATOR

€ 6.00

0936010062
ref: 10

BOLT UNION

€ 5.00

0916110009
ref: 11

WASHER(10X15X1.5)

€ 2.00

5948008G01
ref: 12

HOSE,FR BRAKE

€ 110.00

5929014501
ref: 13

ADAPTOR,BRAKE HOSE

€ 18.50

5924303B01
ref: 14

CLAMP,FR BRAKE

€ 3.50

015470616A
ref: 15

BOLT

€ 2.00
