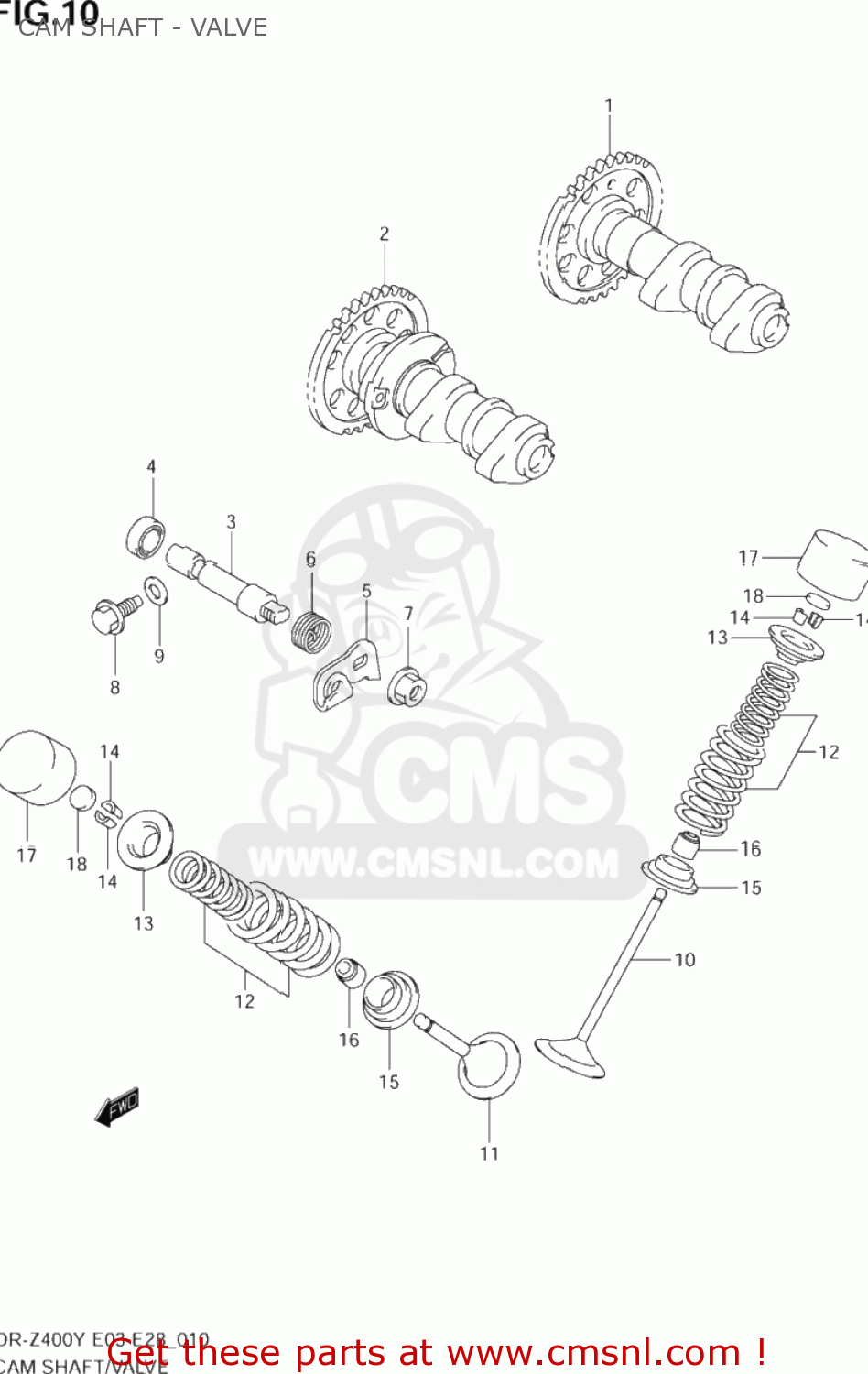

CAM SHAFT - VALVE - DR-Z400 2001 (K1) USA (E03) DRZ400 DR Z400

ref

part #

description

quantity

1-1

1271029F00
ref: 1-1

CAMSHAFT,INTAKE

€ 212.00

1-2

1271029F10
ref: 1-2

CAMSHAFT,INTAKE

€ 212.00

2-1

1272029F00
ref: 2-1
12720-29F01

CAMSHAFT COMP,EXHAUST

€ 386.00

2-2

1272029F20
ref: 2-2
12720-29F21

CAMSHAFT COMP,EXHAUST

€ 386.00

3

1294129F00
ref: 3

SHAFT,DECOMP

€ 21.50

4

0928210014
ref: 4

SEAL,OIL(10X17X6)

€ 6.50

5

1294214D01
ref: 5

LEVER,DECOMPRESSION SHAFT

€ 3.00

6

0944817032
ref: 6

SPRING

€ 3.00

7

0831610083
ref: 7
08316-1008B

NUT

€ 3.00

8

0913506022
ref: 8
09135-06027

BOLT 6X12

€ 3.00

9

0916806023
ref: 9

GASKET(5.8X13X1.2) (NAS)

€ 2.00

10

1291129F00
ref: 10

VALVE,INTAKE

€ 27.50

11

1291229F00
ref: 11

VALVE,EXHAUST

€ 40.50

12

1292029F00
ref: 12

SPRING SET,VALVE

€ 13.50

13

1293102F10
ref: 13

RETAINER,VALVE SPRING

€ 13.00

14

1293224F00
ref: 14

COTTER VALVE

€ 2.00

15

1293338400
ref: 15

SEAT,VALVE SPRING

€ 4.50

16

0928905011
ref: 16

SEAL,OIL(5X10X9.7)

€ 6.00

17

1289102F00
ref: 17

TAPPET

€ 42.50

18-1

1289241C00230
ref: 18-1

SHIM,TAPPET(T:2.3)

€ 7.50

18-10

1289241C00275
ref: 18-10

SHIM,TAPPET(T:2.75)

€ 7.50

18-11

1289241C00280
ref: 18-11

SHIM,TAPPET(T:2.8)

€ 7.50

18-12

1289241C00285
ref: 18-12

SHIM,TAPPET(T:2.85)

€ 7.50

18-13

1289241C00290
ref: 18-13

SHIM,TAPPET(T:2.9)

€ 7.50

18-14

1289241C00295
ref: 18-14

SHIM,TAPPET(T:2.95)

€ 7.00

18-15

1289241C00300
ref: 18-15

SHIM,TAPPET(T:3.0)

€ 7.00

18-16

1289241C00305
ref: 18-16

SHIM,TAPPET(T:3.05)

€ 7.50

18-17

1289241C00310
ref: 18-17

SHIM,TAPPET(T:3.1)

€ 7.50

18-18

1289241C00315
ref: 18-18

SHIM,TAPPET(T:3.15)

€ 7.50

18-19

1289241C00320
ref: 18-19

SHIM,TAPPET(T:3.2)

€ 7.50

18-2

1289241C00235
ref: 18-2

SHIM,TAPPET(T:2.35)

€ 7.00

18-20

1289241C00325
ref: 18-20

SHIM,TAPPET(T:3.25)

€ 7.00

18-21

1289241C00330
ref: 18-21

SHIM,TAPPET(T:3.3)

€ 7.00

18-22

1289241C00335
ref: 18-22

SHIM,TAPPET(T:3.35)

€ 7.00

18-23

1289241C00340
ref: 18-23

SHIM,TAPPET(T:3.4)

€ 7.00

18-24

1289241C00345
ref: 18-24

SHIM,TAPPET(T:3.45)

€ 7.00

18-25

1289241C00350
ref: 18-25

SHIM,TAPPET(T:3.5)

€ 7.00

18-3

1289241C00240
ref: 18-3

SHIM,TAPPET(T:2.4)

€ 7.00

18-4

1289241C00245
ref: 18-4

SHIM,TAPPET(T:2.45)

€ 7.00

18-5

1289241C00250
ref: 18-5

SHIM,TAPPET(T:2.5)

€ 7.00

18-6

1289241C00255
ref: 18-6

SHIM,TAPPET(T:2.55)

€ 7.50

18-7

1289241C00260
ref: 18-7

SHIM,TAPPET(T:2.6)

€ 8.00

18-8

1289241C00265
ref: 18-8

SHIM,TAPPET(T:2.65)

€ 7.00

18-9

1289241C00270
ref: 18-9

SHIM,TAPPET(T:2.7)

€ 8.00

19

1280041810
ref: 19

SHIM SET,TAPPET

€ 793.00

19

1280041810
ref: 19

SHIM SET,TAPPET

€ 793.00

19

1280041810
ref: 19

SHIM SET,TAPPET

€ 793.00

20

9900069471
ref: 20

CASE,TAPPET SHIM

€ 103.50

CAM SHAFT - VALVE

all assemblies
