SEAT (MODEL Y/K1)

DR-Z400 2001 (K1) USA (E03) DRZ400 DR Z400

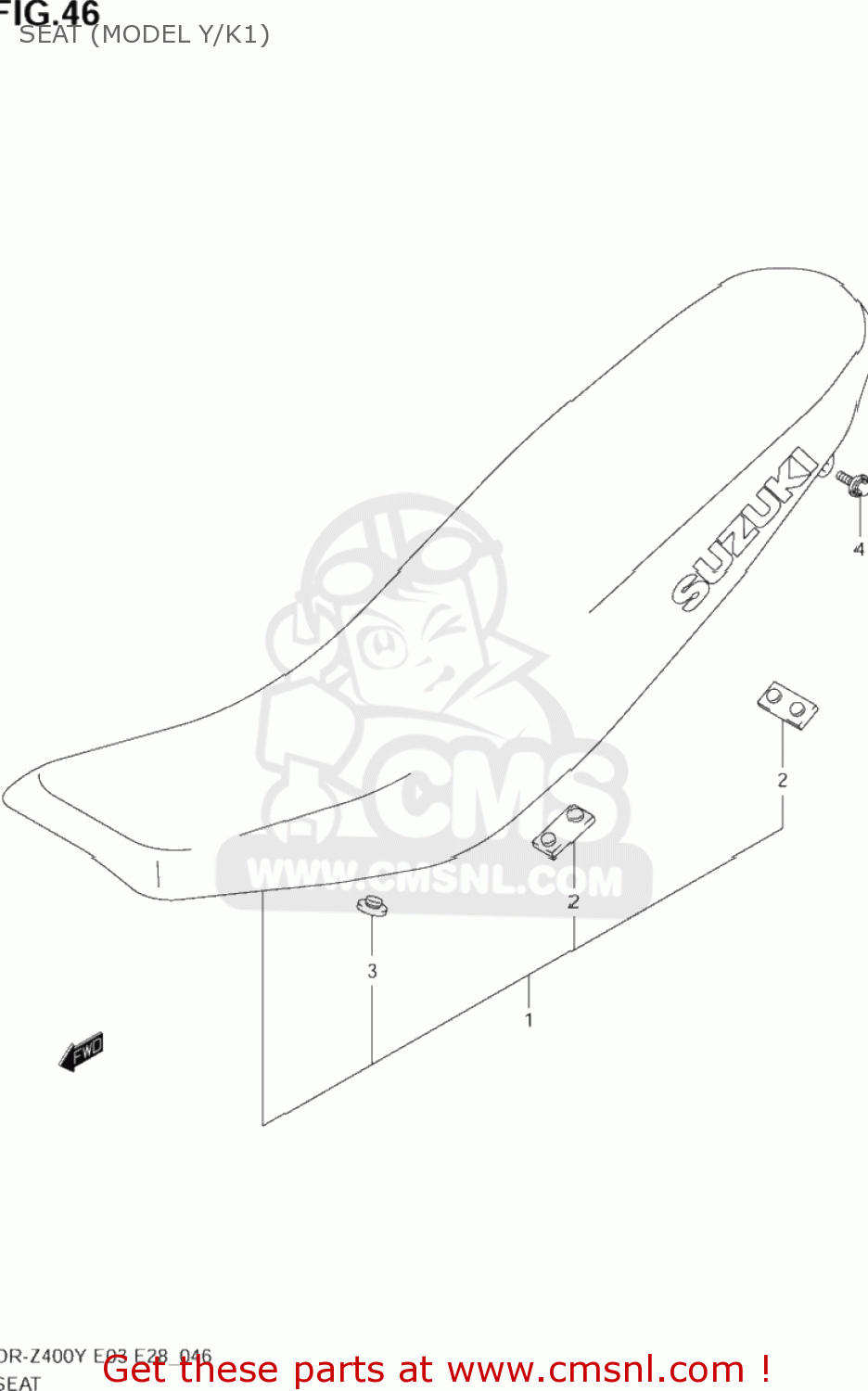

Seat (model y/k1) diagram DR-Z400 2001 (K1) USA (E03) DRZ400 DR Z400

SEAT (MODEL Y/K1) DR-Z400 2001 (K1) USA (E03) DRZ400 DR Z400

SEAT (MODEL Y/K1) DR-Z400 2001 (K1) USA (E03) DRZ400 DR Z400

prices are in EUR

ref

part #

description

quantity

1-1

4510029F00CT6
ref: 1-1
45100-29F01-CT6

SEAT ASSEMBLY

€ 265.50

1-2

4510029F00DY1
ref: 1-2
45100-29F01-DY1

SEAT ASSY

€ 265.50

2-1

4514912C00
ref: 2-1

CUSHION,SEAT(40X20X6)

€ 3.00

2-2

4514931300
ref: 2-2

CUSHION,SEAT(40X20X15)

€ 2.00

3

0932110022
ref: 3

CUSHION

€ 2.00

4

0911606182
ref: 4

BOLT(6X20)

€ 3.00
