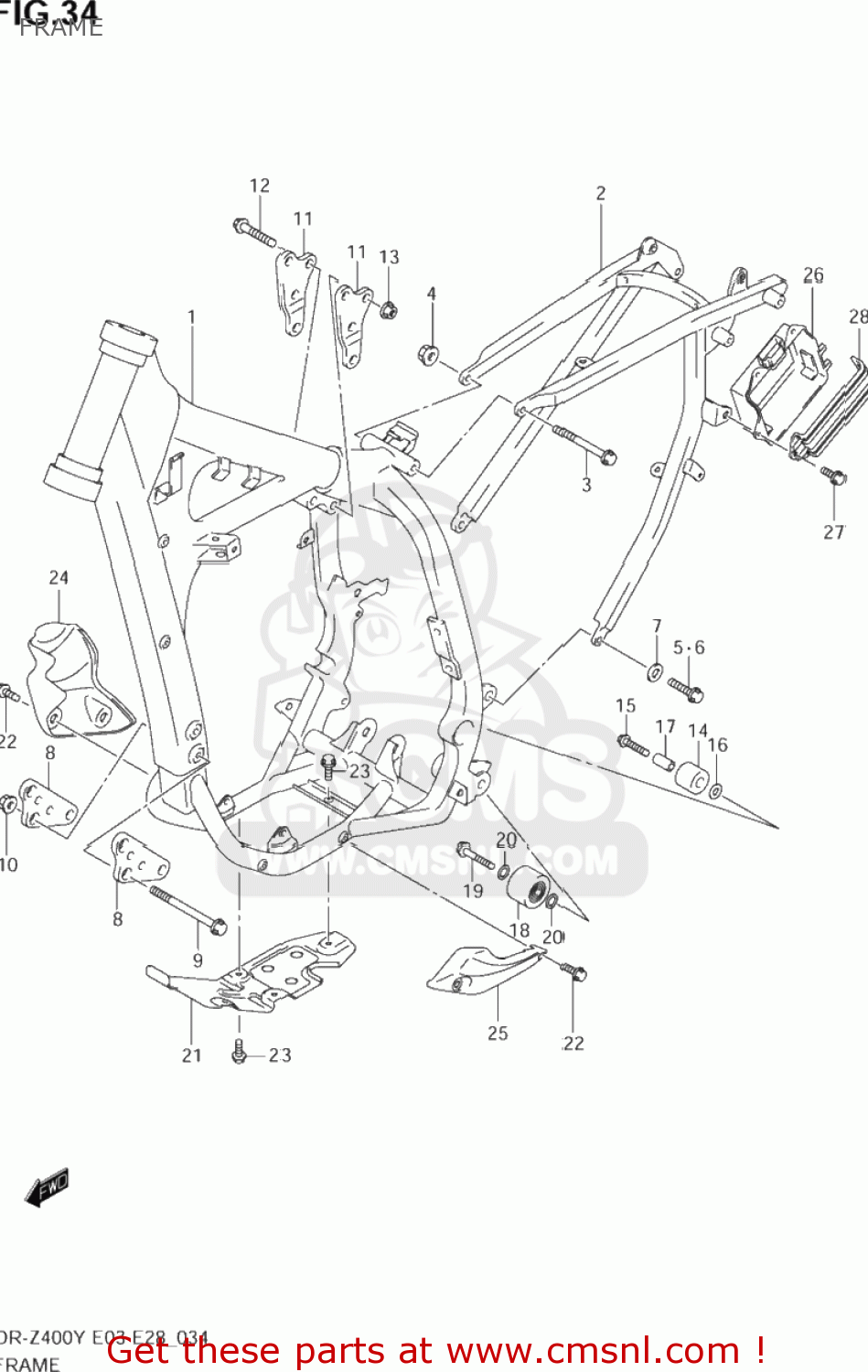

FRAME

ref

part #

description

quantity

1-1

4110029F0024K
ref: 1-1

FRAME COMP

€ 1,599.50

1-2

4110029F0017U
ref: 1-2

FRAME(GRAY)

€ 2,059.50

1-3

4110029F00YU8
ref: 1-3

FRAME (GRAY)

€ 1,207.00

2-1

4120029F00
ref: 2-1

RAIL COMP,SEAT

€ 532.50

2-2

4120029F10
ref: 2-2

RAIL COMP,SEAT

€ 595.50

3

0910308098
ref: 3

BOLT(8X115)

€ 3.00

4

0831931087
ref: 4

NUT

€ 2.50

5

0910408035
ref: 5

BOLT(8X18)

€ 2.00

6

0910308364
ref: 6

BOLT(8X20)

€ 2.00

7

0916008120
ref: 7

WASHER(8.5X18X2)

€ 2.50

8

4191129F00
ref: 8

PLATE,ENG MTG FR

€ 25.00

9

0910308363
ref: 9

BOLT(8X90)

€ 7.50

10

0831931087
ref: 10

NUT

€ 2.50

11

4199329F10
ref: 11

PLATE,HEAD MTG RR

€ 19.00

12

0910308081
ref: 12

BOLT(8X50)

€ 3.50

13

0831931087
ref: 13

NUT

€ 2.50

14

4391113E10
ref: 14

ROLLER,CHAIN CONTROL UPR

€ 17.00

15

0910308083
ref: 15

BOLT(8X41)

€ 3.50

16

0821108201
ref: 16

WASHER

€ 2.00

17

0918008215
ref: 17

SPACER(8.6X12.2X26.5)

€ 4.00

18

4391027C11
ref: 18

ROLLER,CHAIN

€ 36.50

19

0910308083
ref: 19

BOLT(8X41)

€ 3.50

20

0918108111
ref: 20

SHIM(8X12X1)

€ 2.00

21

4251029F00
ref: 21

PROTECTOR,ENGINE

€ 81.50

22

0911108087
ref: 22

BOLT(8X16.5)

€ 3.00

23

0155006123
ref: 23
01550-0612A

BOLT

€ 2.50

24

4252129F00
ref: 24
42520-29810

GUARD,WATER PUMP

€ 13.50

25

4253129F00
ref: 25
42530-29810

GUARD,MAG COVER

€ 13.50

26

4154129F00
ref: 26

HOLDER,BATTERY

€ 28.50

27

0911106072
ref: 27

BOLT(6X17.8)

€ 2.00

28

4156129F00
ref: 28

BAND,BATTERY HOLDER

€ 11.00
