CRANKSHAFT (MODEL Y)

DR-Z400 2001 (K1) USA (E03) DRZ400 DR Z400

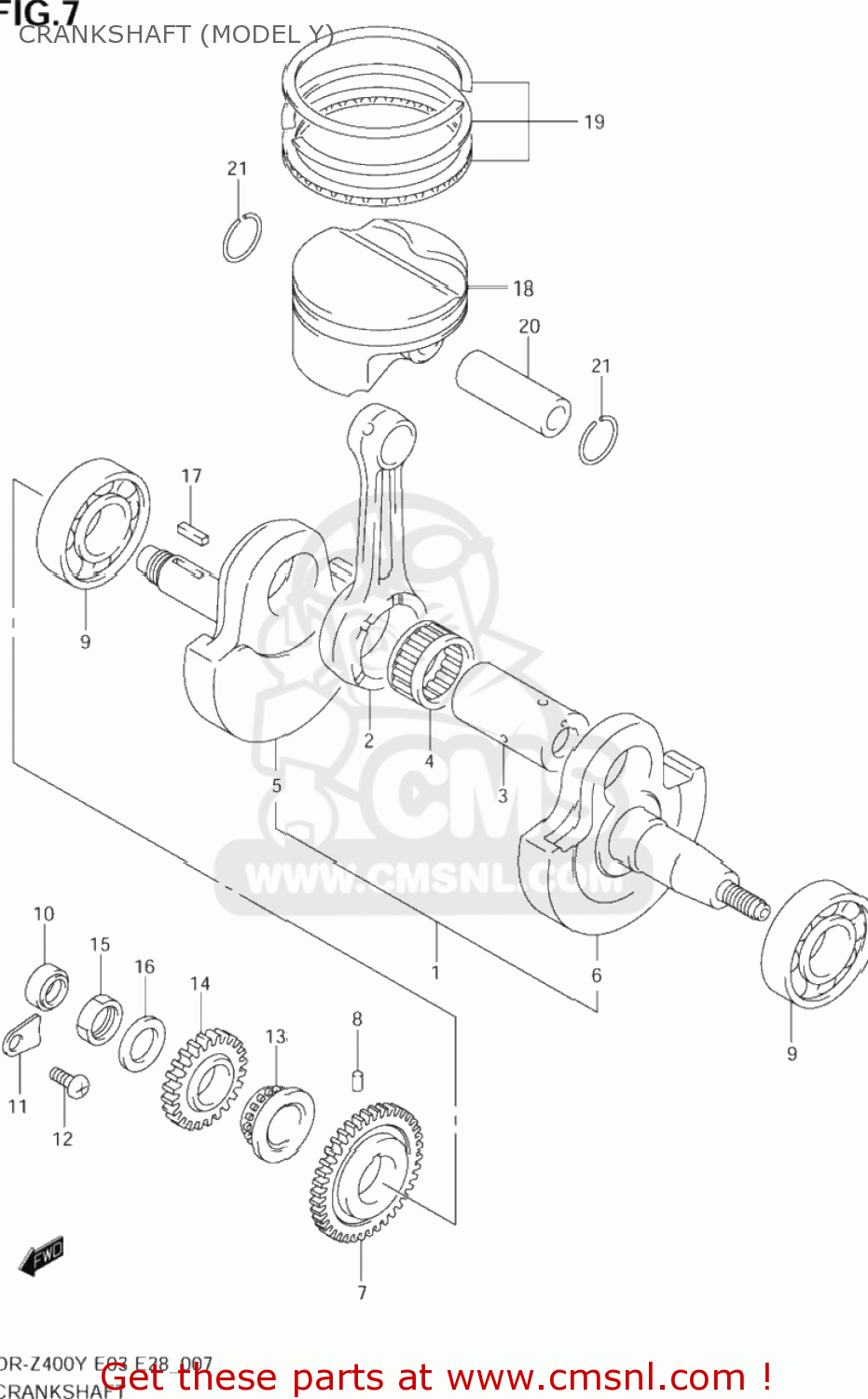

Crankshaft (model y) diagram DR-Z400 2001 (K1) USA (E03) DRZ400 DR Z400

CRANKSHAFT (MODEL Y) DR-Z400 2001 (K1) USA (E03) DRZ400 DR Z400

CRANKSHAFT (MODEL Y) DR-Z400 2001 (K1) USA (E03) DRZ400 DR Z400

prices are in EUR

ref

part #

description

quantity

1-1

1220029F01
ref: 1-1

CRANKSHAFT ASSY

€ 704.50

1-2

1220029F21
ref: 1-2

CRANKSHAFT ASSY

€ 770.00

2

1216029F010B0
ref: 2
12160-29F02-0B0

CONNECTING ROD COMP

€ 106.50

3

1221029F00
ref: 3
12210-29F01

PIN COMP,CRANK

€ 48.00

4

09263350370B0
ref: 4

BEARING(35X43X22)

€ 58.50

5

1222129F20
ref: 5
12221-29F30

CRANKSHAFT,RIGHT

€ 177.00

6-1

1226129F00
ref: 6-1

CRANKSHAFT,L

€ 245.00

6-2

1226129F10
ref: 6-2
12261-07G00

CRANKSHAFT,LEFT

€ 200.50

7

1266129F00
ref: 7

GEAR,CRANK BALANCER DRIVE

€ 85.50

8

0926105005
ref: 8

PIN(5X8)

€ 1.50

9

0926230100
ref: 9

BEARING(30X72X18)

€ 61.50

10

0928214003
ref: 10

SEAL,OIL(14X24X6)

€ 8.00

11

2474218A00
ref: 11

RETAINER,BEARING

€ 2.00

12

0211206123
ref: 12
02112-0612A

SCREW

€ 1.50

13

1273129F00
ref: 13

SPROCKET,CAM CHAIN DRIVE

€ 77.00

14

2111129F00
ref: 14

GEAR,PRIMARY DRIVE

€ 75.50

15

0914018012
ref: 15

NUT

€ 8.00

16

0916418007
ref: 16
09164-18001

WASHER

€ 3.00

17

0942105002
ref: 17

KEY

€ 4.50

18

1211129F000F0
ref: 18

PISTON

€ 99.00

19

1214029F00
ref: 19

RING SET,PISTON

€ 57.50

20

1215124F10
ref: 20

PIN,PISTON

€ 15.50

21

0938120004
ref: 21

CIRCLIP,PISTON PIN

€ 2.00
