REAR WHEEL

DR-Z400 2001 (K1) USA (E03) DRZ400 DR Z400

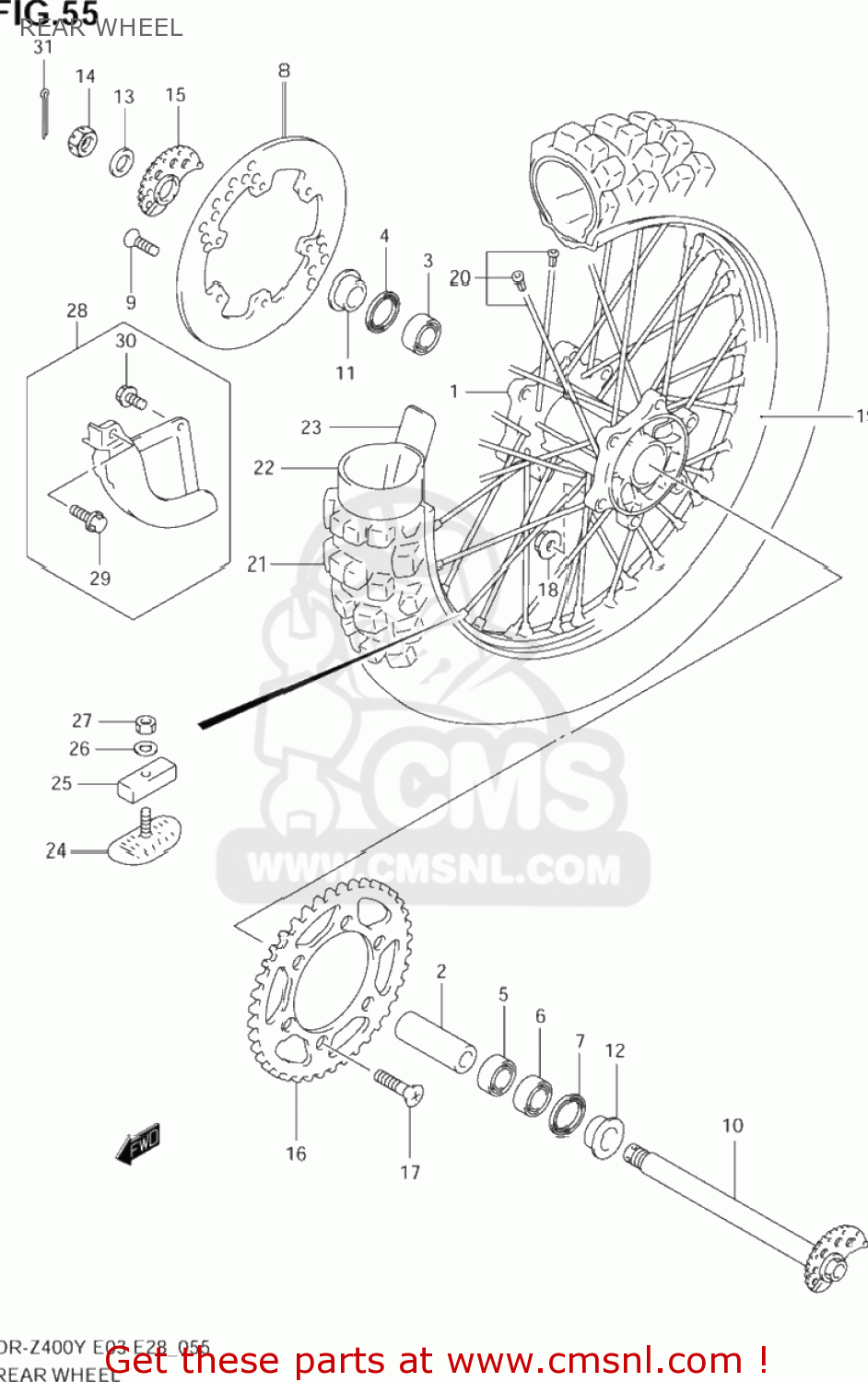

Rear wheel diagram DR-Z400 2001 (K1) USA (E03) DRZ400 DR Z400

REAR WHEEL DR-Z400 2001 (K1) USA (E03) DRZ400 DR Z400
REAR WHEEL DR-Z400 2001 (K1) USA (E03) DRZ400 DR Z400
REAR WHEEL DR-Z400 2001 (K1) USA (E03) DRZ400 DR Z400
prices are in EUR
ref
part #
description
quantity
1
6411129F00
ref: 1
HUB,RR WHEEL
6411129F00
€ 183.50
2
6473129F00
ref: 2
SPACER,RR HUB BEARING
6473129F00
€ 20.50
3
0813360047
ref: 3
BEARING
0813360047
€ 21.00
4
6484128E00
ref: 4
SEAL(29X42X6)
6484128E00
€ 8.50
5
0813360047
ref: 5
BEARING
0813360047
€ 21.00
6
0812362047
ref: 6
BEARING
0812362047
€ 17.00
7
0928329006
ref: 7
SEAL,OIL(29X47X6)
0928329006
€ 9.50
8
6921143D00
ref: 8
DISC,RR BRAKE
6921143D00
€ 160.00
9
0912006011
ref: 9
09120-06014
SCREW
€ 2.50
10
6471029F10
ref: 10
AXLE,RR
€ 0.00
11
6475128E20
ref: 11
SPACER,RR AXLE
6475128E20
€ 13.00
12
6475128E20
ref: 12
SPACER,RR AXLE
6475128E20
€ 13.00
13
0916019022
ref: 13
WASHER(19X32X3.2)
0916019022
€ 5.00
14
0831440183
ref: 14
08314-4018A
NUT
0831440183
€ 4.50
15
6141029F00
ref: 15
ADJUSTER,CHAIN,R
6141029F00
€ 13.50
16
6451129F00
ref: 16
SPROCKET,RR(NT:47-520)
6451129F00
€ 115.00
17
0912008010
ref: 17
BOLT(8X30.5)
0912008010
€ 2.50
18
0831931087
ref: 18
NUT
0831931087
€ 2.50
19
6531129F10
ref: 19
RIM,RR WHEEL(18X2.15 AL)
€ 435.50
20
6532029F10
ref: 20
SPOKE SET,RR WHEEL
6532029F10
€ 84.50
21
6511029F00
ref: 21
TIRE,RR(110/100 18 64M)
€ 187.50
21
6511029F00
ref: 21
TIRE,RR(110/100 18 64M)
€ 187.50
22
6520029F00
ref: 22
TUBE ASSY,WHEEL INNER
€ 43.00
23
6526144AF0
ref: 23
PROTECTOR,WHL INR TUBE
€ 4.50
24
6527028E00
ref: 24
STOPPER,BEAD(2.15)
6527028E00
€ 38.00
25
6527127C00
ref: 25
CUSHION,BEAD STOPPER
6527127C00
€ 5.50
26
0832201083
ref: 26
08322-0108A
WASHER
0832201083
€ 1.50
27
0831000083
ref: 27
08310-0008A
NUT
0831000083
€ 1.50
28
6920028C00
ref: 28
COVER SET,RR BRAKE DISC
6920028C00
€ 29.50
29
0155006203
ref: 29
01550-0620A
BOLT
0155006203
€ 2.50
30
0155006123
ref: 30
01550-0612A
BOLT
0155006123
€ 2.50
31
0411140308
ref: 31
04111-4030A
PIN,COTTER
0411140308
€ 1.50
