HEADLAMP (MODEL Y/K1)

DR-Z400 2001 (K1) USA (E03) DRZ400 DR Z400

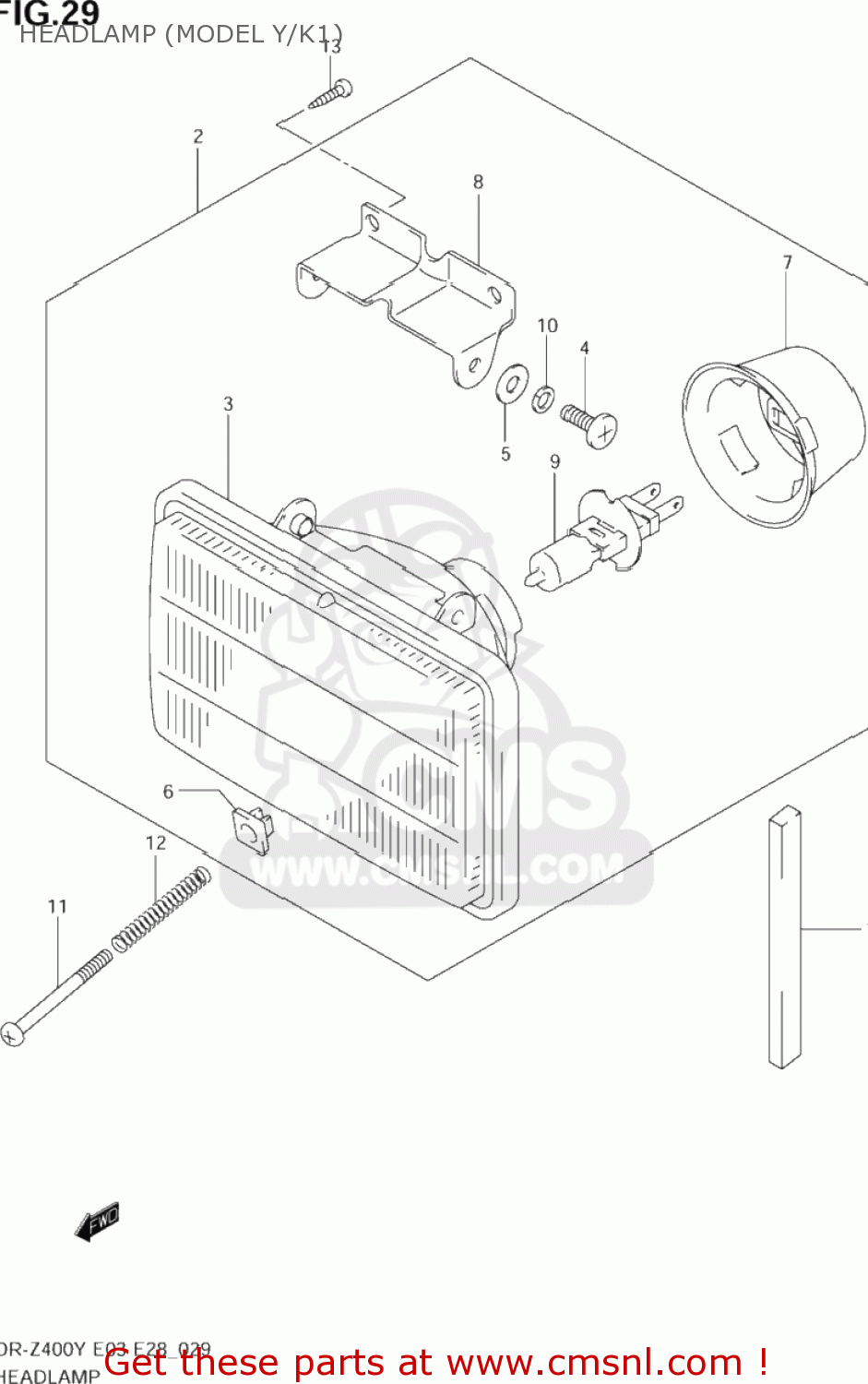

Headlamp (model y/k1) diagram DR-Z400 2001 (K1) USA (E03) DRZ400 DR Z400

HEADLAMP (MODEL Y/K1) DR-Z400 2001 (K1) USA (E03) DRZ400 DR Z400
HEADLAMP (MODEL Y/K1) DR-Z400 2001 (K1) USA (E03) DRZ400 DR Z400
HEADLAMP (MODEL Y/K1) DR-Z400 2001 (K1) USA (E03) DRZ400 DR Z400
prices are in EUR
ref
part #
description
quantity
1
3365220C00
ref: 1
PROTECTOR(50X50X5)
3365220C00
€ 2.50
2
3510005D10
ref: 2
HEADLAMP ASSY
3510005D10
€ 150.00
3
3512105D01
ref: 3
UNIT,LAMP
3512105D01
€ 80.00
4
3513616700
ref: 4
SCREW
3513616700
€ 3.00
5
3513805D00
ref: 5
WASHER
€ 1.50
6
3513512E20
ref: 6
NUT,ADJUSTING
3513512E20
€ 2.50
7
3517305D00
ref: 7
COVER,SOCKET
3517305D00
€ 15.00
8
3523005D00
ref: 8
BRACKET,LAMP
3523005D00
€ 9.00
9
0947112160
ref: 9
BULB(12V55W)
0947112160
€ 24.50
10
0832101057
ref: 10
08321-0105A
WASHER,LOCK
0832101057
€ 2.00
11
0912504501
ref: 11
SCREW(4X45)
0912504501
€ 3.00
12
3515430B00
ref: 12
SPRING,HEAD LAMP ADJUSTER
3515430B00
€ 1.50
13
0351104103
ref: 13
03511-0410A
SCREW
€ 1.50
