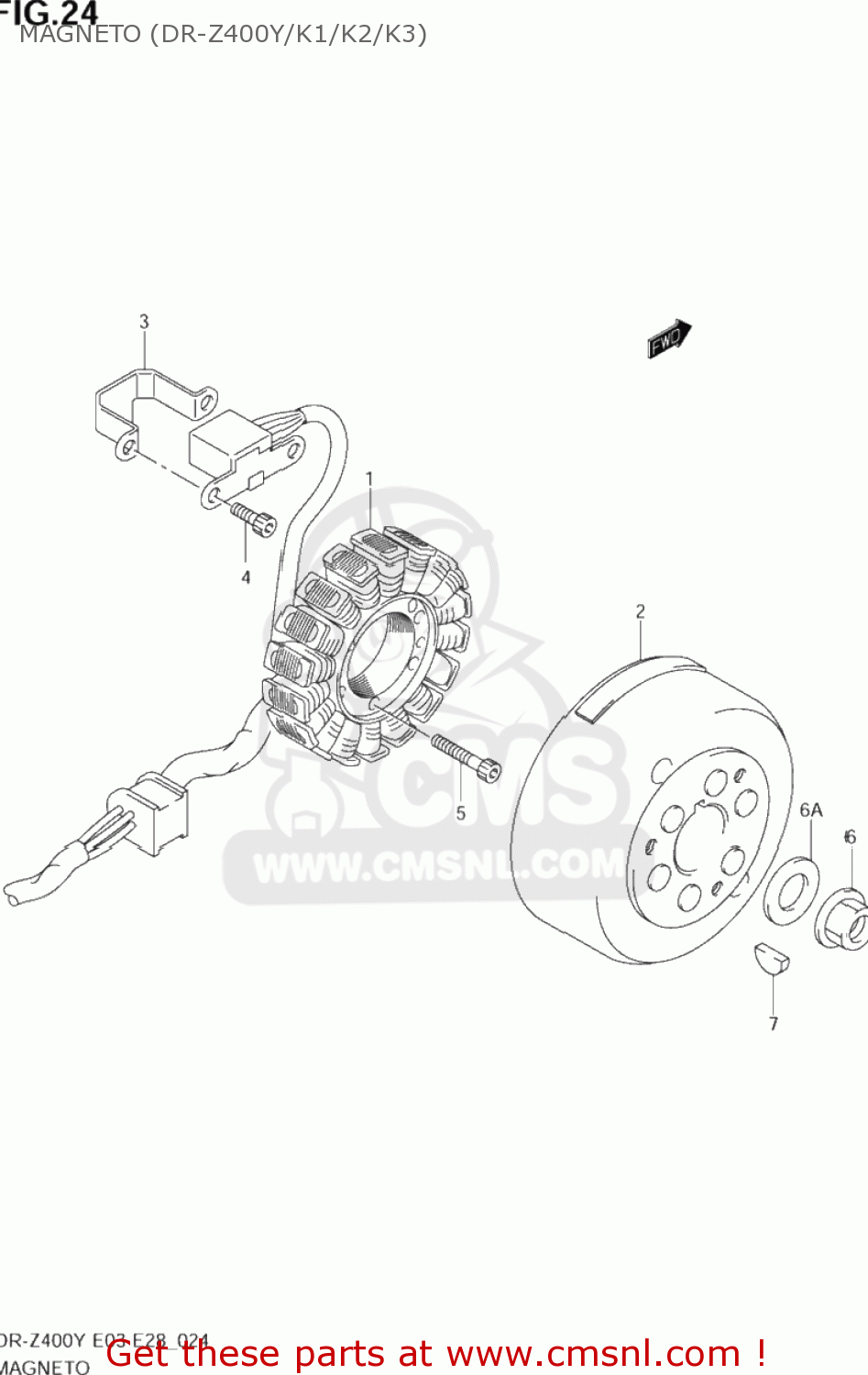

MAGNETO (DR-Z400Y/K1/K2/K3)

DR-Z400 2001 (K1) USA (E03) DRZ400 DR Z400

Magneto (dr-z400y/k1/k2/k3) diagram DR-Z400 2001 (K1) USA (E03) DRZ400 DR Z400

MAGNETO (DR-Z400Y/K1/K2/K3) DR-Z400 2001 (K1) USA (E03) DRZ400 DR Z400

MAGNETO (DR-Z400Y/K1/K2/K3) DR-Z400 2001 (K1) USA (E03) DRZ400 DR Z400

prices are in EUR

ref

part #

description

quantity

1

3210129F10
ref: 1

STARTER ASSY

€ 637.00

2

3210229F10
ref: 2

ROTOR ASSY

€ 462.50

3

3237114D01
ref: 3

CLAMP,MAGNETO LEAD WIRE

€ 3.50

4

0713005123
ref: 4
07130-0512B

BOLT

€ 2.50

5

0713005203
ref: 5
07130-0520B

SCREW

€ 1.50

6

0915912055
ref: 6

NUT

€ 3.50

6A

0916012051
ref: 6A

WASHER(12X27X2)

€ 1.50

7

0834131039
ref: 7

KEY

€ 2.00
