CAMSHAFT/VALVE

DR-Z400S 2012 (L2) USA (E03) DRZ400S DR Z400S

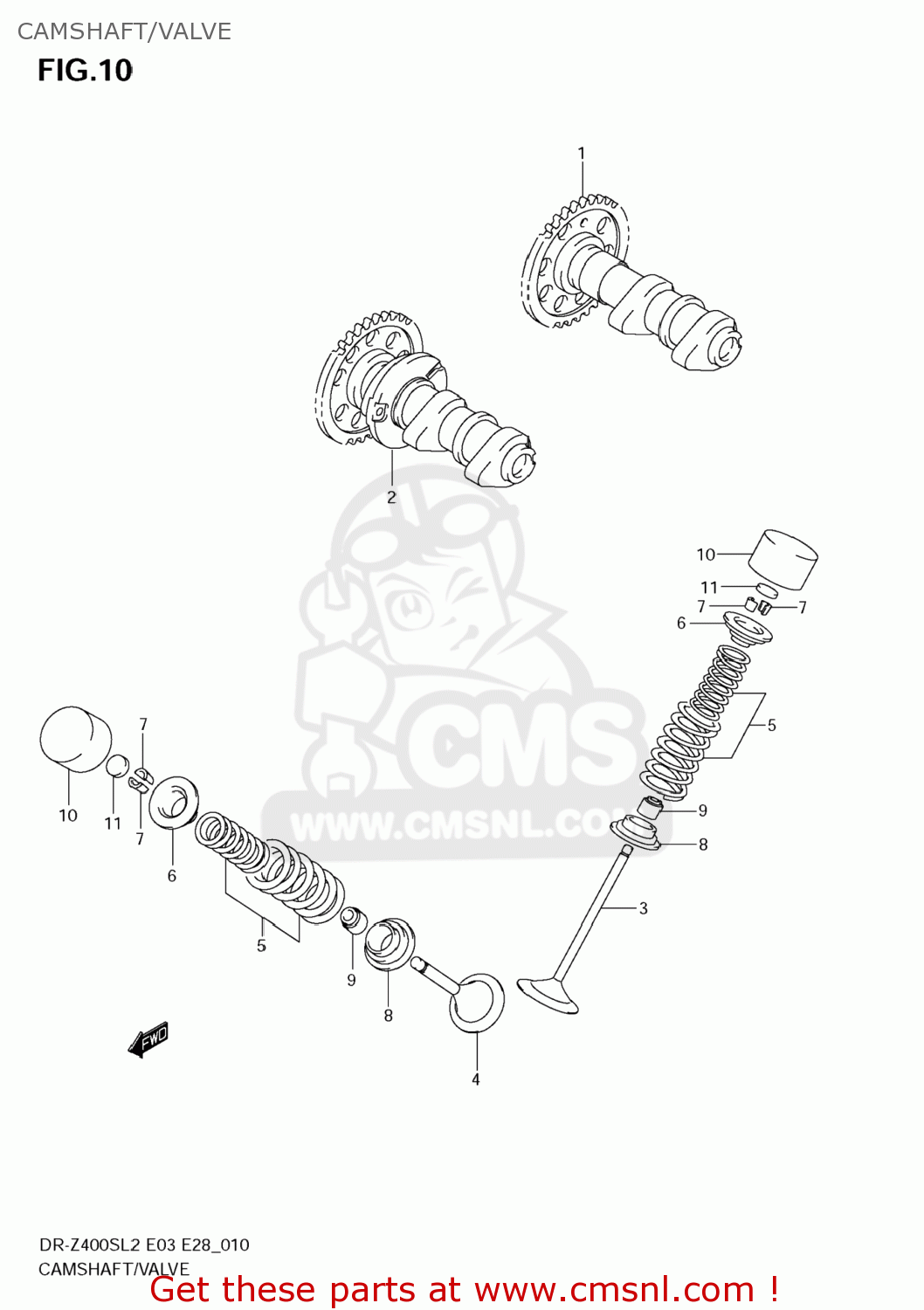

Camshaft/valve diagram DR-Z400S 2012 (L2) USA (E03) DRZ400S DR Z400S

CAMSHAFT/VALVE DR-Z400S 2012 (L2) USA (E03) DRZ400S DR Z400S
CAMSHAFT/VALVE DR-Z400S 2012 (L2) USA (E03) DRZ400S DR Z400S
CAMSHAFT/VALVE DR-Z400S 2012 (L2) USA (E03) DRZ400S DR Z400S
prices are in EUR
ref
part #
description
quantity
1
1271029F10
ref: 1
CAMSHAFT,INTAKE
€ 212.00
2
1272029F21
ref: 2
CAMSHAFT,EXHAUST
€ 386.00
3
1291129F00
ref: 3
VALVE,INTAKE
1291129F00
€ 27.50
4
1291229F00
ref: 4
VALVE,EXHAUST
1291229F00
€ 40.50
5
1292029F00
ref: 5
SPRING SET,VALVE
1292029F00
€ 13.50
6
1293102F10
ref: 6
RETAINER,VALVE SPRING
1293102F10
€ 13.00
7
1293224F00
ref: 7
COTTER VALVE
1293224F00
€ 2.00
8
1293338400
ref: 8
SEAT,VALVE SPRING
1293338400
€ 4.50
9
0928905011
ref: 9
SEAL,OIL(5X10X9.7)
0928905011
€ 6.00
10
1289102F00
ref: 10
TAPPET
1289102F00
€ 42.50
11-1
1289241C00230
ref: 11-1
SHIM,TAPPET(T:2.3)
1289241C00230
€ 7.50
11-10
1289241C00275
ref: 11-10
SHIM,TAPPET(T:2.75)
1289241C00275
€ 7.50
11-11
1289241C00280
ref: 11-11
SHIM,TAPPET(T:2.8)
1289241C00280
€ 7.50
11-12
1289241C00285
ref: 11-12
SHIM,TAPPET(T:2.85)
1289241C00285
€ 7.50
11-13
1289241C00290
ref: 11-13
SHIM,TAPPET(T:2.9)
1289241C00290
€ 7.50
11-14
1289241C00295
ref: 11-14
SHIM,TAPPET(T:2.95)
1289241C00295
€ 7.00
11-15
1289241C00300
ref: 11-15
SHIM,TAPPET(T:3.0)
1289241C00300
€ 7.00
11-16
1289241C00305
ref: 11-16
SHIM,TAPPET(T:3.05)
1289241C00305
€ 7.50
11-17
1289241C00310
ref: 11-17
SHIM,TAPPET(T:3.1)
1289241C00310
€ 7.50
11-18
1289241C00315
ref: 11-18
SHIM,TAPPET(T:3.15)
1289241C00315
€ 7.50
11-19
1289241C00320
ref: 11-19
SHIM,TAPPET(T:3.2)
1289241C00320
€ 7.50
11-2
1289241C00235
ref: 11-2
SHIM,TAPPET(T:2.35)
1289241C00235
€ 7.00
11-20
1289241C00325
ref: 11-20
SHIM,TAPPET(T:3.25)
1289241C00325
€ 7.00
11-21
1289241C00330
ref: 11-21
SHIM,TAPPET(T:3.3)
1289241C00330
€ 7.00
11-22
1289241C00335
ref: 11-22
SHIM,TAPPET(T:3.35)
1289241C00335
€ 7.00
11-23
1289241C00340
ref: 11-23
SHIM,TAPPET(T:3.4)
1289241C00340
€ 7.00
11-24
1289241C00345
ref: 11-24
SHIM,TAPPET(T:3.45)
€ 7.00
11-25
1289241C00350
ref: 11-25
SHIM,TAPPET(T:3.5)
1289241C00350
€ 7.00
11-3
1289241C00240
ref: 11-3
SHIM,TAPPET(T:2.4)
€ 7.00
11-4
1289241C00245
ref: 11-4
SHIM,TAPPET(T:2.45)
1289241C00245
€ 7.00
11-5
1289241C00250
ref: 11-5
SHIM,TAPPET(T:2.5)
1289241C00250
€ 7.00
11-6
1289241C00255
ref: 11-6
SHIM,TAPPET(T:2.55)
1289241C00255
€ 7.50
11-7
1289241C00260
ref: 11-7
SHIM,TAPPET(T:2.6)
1289241C00260
€ 8.00
11-8
1289241C00265
ref: 11-8
SHIM,TAPPET(T:2.65)
1289241C00265
€ 7.00
11-9
1289241C00270
ref: 11-9
SHIM,TAPPET(T:2.7)
1289241C00270
€ 8.00
12
1280041810
ref: 12
SHIM SET,TAPPET
€ 793.00
12
1280041810
ref: 12
SHIM SET,TAPPET
€ 793.00
12
1280041810
ref: 12
SHIM SET,TAPPET
€ 793.00
13
9900069471
ref: 13
CASE,TAPPET SHIM
9900069471
€ 103.50
13
9900069471
ref: 13
CASE,TAPPET SHIM
9900069471
€ 103.50
