FRONT FENDER

DR-Z400S 2012 (L2) USA (E03) DRZ400S DR Z400S

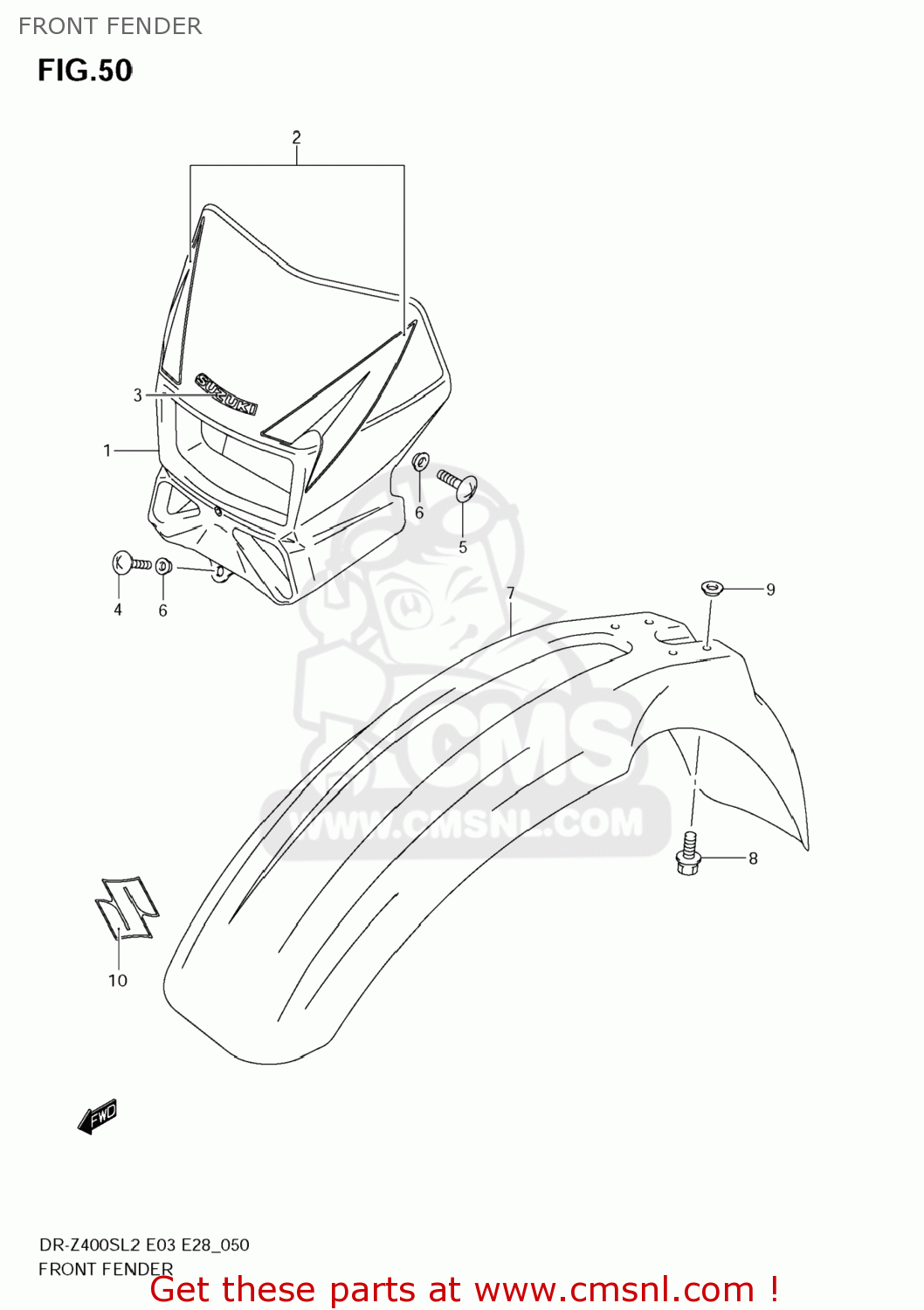

Front fender diagram DR-Z400S 2012 (L2) USA (E03) DRZ400S DR Z400S

prices are in EUR

ref

part #

description

quantity

1-1

5181129F50019
ref: 1-1

COVER,HEADLAMP

€ 54.50

1-2

5181129F5030H
ref: 1-2

COVER,HEADLAMP

€ 61.50

2-1

6872029FD0HMC
ref: 2-1

TAPE SET,HEADLAMP HOUSING

€ 20.50

2-1

6872029FD0HMC
ref: 2-1

TAPE SET,HEADLAMP HOUSING

€ 20.50

2-2

6872029FD0HMD
ref: 2-2

TAPE SET,HEADLAMP HOUSING

€ 20.50

2-2

6872029FD0HMD
ref: 2-2

TAPE SET,HEADLAMP HOUSING

€ 20.50

6828101H00YD8
ref: 3

EMBLEM,SUZUKI

€ 7.50

021420512B
ref: 4

SCREW

€ 1.50

021420612B
ref: 5

SCREW

€ 2.00

0916906071
ref: 6

WASHER

€ 2.50

7-1

5311127C22019
ref: 7-1

FENDER,FR

€ 53.00

7-2

5311127C2230H
ref: 7-2

FENDER,FR

€ 87.00

0911606170
ref: 8

BOLT(6X16)

€ 3.00

0916906073
ref: 9

WASHER

€ 4.00

6815107G10YD8
ref: 10

EMBLEM,S

€ 10.50

FRONT FENDER

all assemblies
