TRANSMISSION

DR-Z400S 2012 (L2) USA (E03) DRZ400S DR Z400S

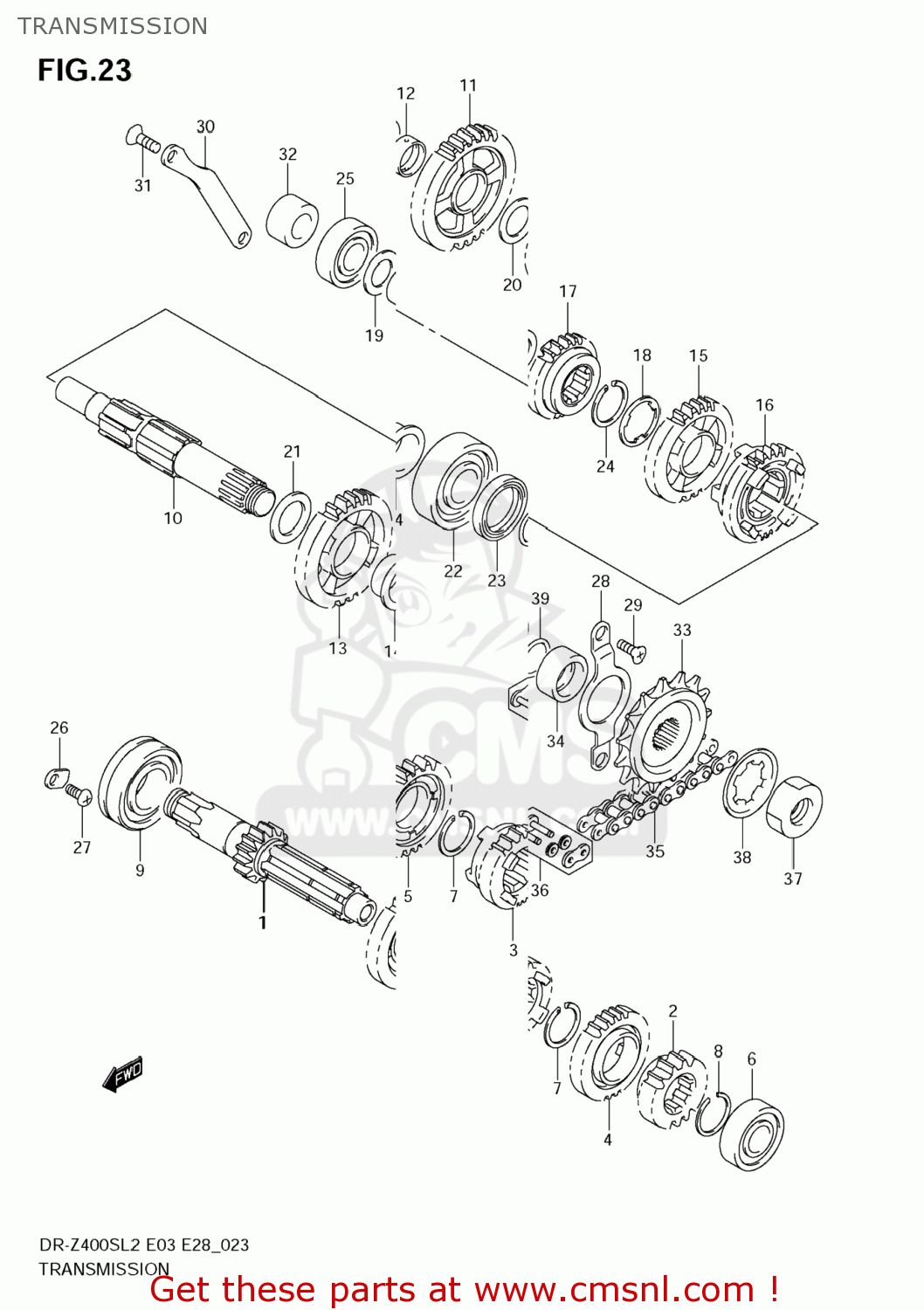

Transmission diagram DR-Z400S 2012 (L2) USA (E03) DRZ400S DR Z400S

TRANSMISSION DR-Z400S 2012 (L2) USA (E03) DRZ400S DR Z400S
TRANSMISSION DR-Z400S 2012 (L2) USA (E03) DRZ400S DR Z400S
TRANSMISSION DR-Z400S 2012 (L2) USA (E03) DRZ400S DR Z400S
prices are in EUR
ref
part #
description
quantity
1
2412005D20
ref: 1
SHAFT,COUNTER(NT:14)
2412005D20
€ 167.50
2
2422128C20
ref: 2
GEAR,2ND DRIVE(NT:15)
2422128C20
€ 72.50
3
2423105D02
ref: 3
GEAR,3RD DRIVE(NT:16)
2423105D02
€ 82.00
4
2424105D01
ref: 4
GEAR,4TH DRIVE(NT:22)
2424105D01
€ 72.50
5
2425105D00
ref: 5
GEAR,5TH DRIVE(NT:22)
2425105D00
€ 68.00
6
0926217027
ref: 6
BEARING(17X40X12)
0926217027
€ 25.00
7
0938025010
ref: 7
CIRCLIP
0938025010
€ 3.00
8
0938025013
ref: 8
CIRCLIP
0938025013
€ 3.00
9
0926225003
ref: 9
BEARING(25X52X15)
0926225003
€ 20.50
10
2413005D21
ref: 10
SHAFT,DRIVE
2413005D21
€ 131.00
11
2431105D00
ref: 11
GEAR,1ST DRIVEN(NT:32)
2431105D00
€ 73.00
12
2431229F00
ref: 12
BUSH,1ST DRIVEN GEAR
2431229F00
€ 11.50
13
2432128C02
ref: 13
GEAR,2ND DRIVEN(NT:26)
2432128C02
€ 65.00
14
2432244E10
ref: 14
BUSH,2ND DRIVEN GEAR
2432244E10
€ 19.50
15
2433105D01
ref: 15
GEAR,3RD DRIVEN(NT:22)
€ 77.00
16
2434105D01
ref: 16
GEAR,4TH DRIVEN(NT:24)
2434105D01
€ 82.00
17
2435105D20
ref: 17
GEAR,5TH DRIVEN(NT:19)
2435105D20
€ 73.00
18
0916725012
ref: 18
WASHER,LOCK
0916725012
€ 3.50
19
0918117223
ref: 19
SHIM(17X30X1)
0918117223
€ 3.00
20
0918120195
ref: 20
SHIM(20X30X1)
0918120195
€ 3.00
21
0918122223
ref: 21
SHIM(22X34X1)
0918122223
€ 3.00
22
0926222024
ref: 22
BEARING(22X56X16)
0926222024
€ 40.00
23
0928330053
ref: 23
SEAL,OIL(30X40X6)
0928330053
€ 8.00
24
0938025010
ref: 24
CIRCLIP
0938025010
€ 3.00
25
0926217023
ref: 25
BEARING(17X40X12)
0926217023
€ 14.00
26
2474121A00
ref: 26
RETAINER
2474121A00
€ 2.00
27
0912506122
ref: 27
SCREW(6X12)
0912506122
€ 1.50
28
2475129F00
ref: 28
RETAINER,DRIVE SHAFT OIL SEAL
2475129F00
€ 5.00
29
0912606007
ref: 29
SCREW(6X14)
0912606007
€ 2.50
30
2626429F00
ref: 30
RETAINER,KICK IDLE GEAR
2626429F00
€ 7.00
31
021220616A
ref: 31
SCREW
€ 2.00
32
0918017055
ref: 32
SPACER(17X30.5X16.3)
0918017055
€ 8.00
33
2751029E10
ref: 33
SPROCKET,ENGINE(15T)
2751029E10
€ 29.50
34
2753129F00
ref: 34
SPACER,ENGINE SPROCKET
2753129F00
€ 15.00
35
2760029F10112
ref: 35
CHAIN ASSEMBLY,DRIVE RK520
€ 124.00
35
2760029F10112
ref: 35
CHAIN ASSEMBLY,DRIVE RK520
€ 124.00
36
2762029F10
ref: 36
JOINT SET,CHAIN
2762029F10
€ 16.50
37
0914018006
ref: 37
NUT
0914018006
€ 4.50
38
0916722012
ref: 38
WASHER,LOCK
0916722012
€ 1.50
39
0928021008
ref: 39
O RING(D:2.5,ID:21)
0928021008
€ 2.00
