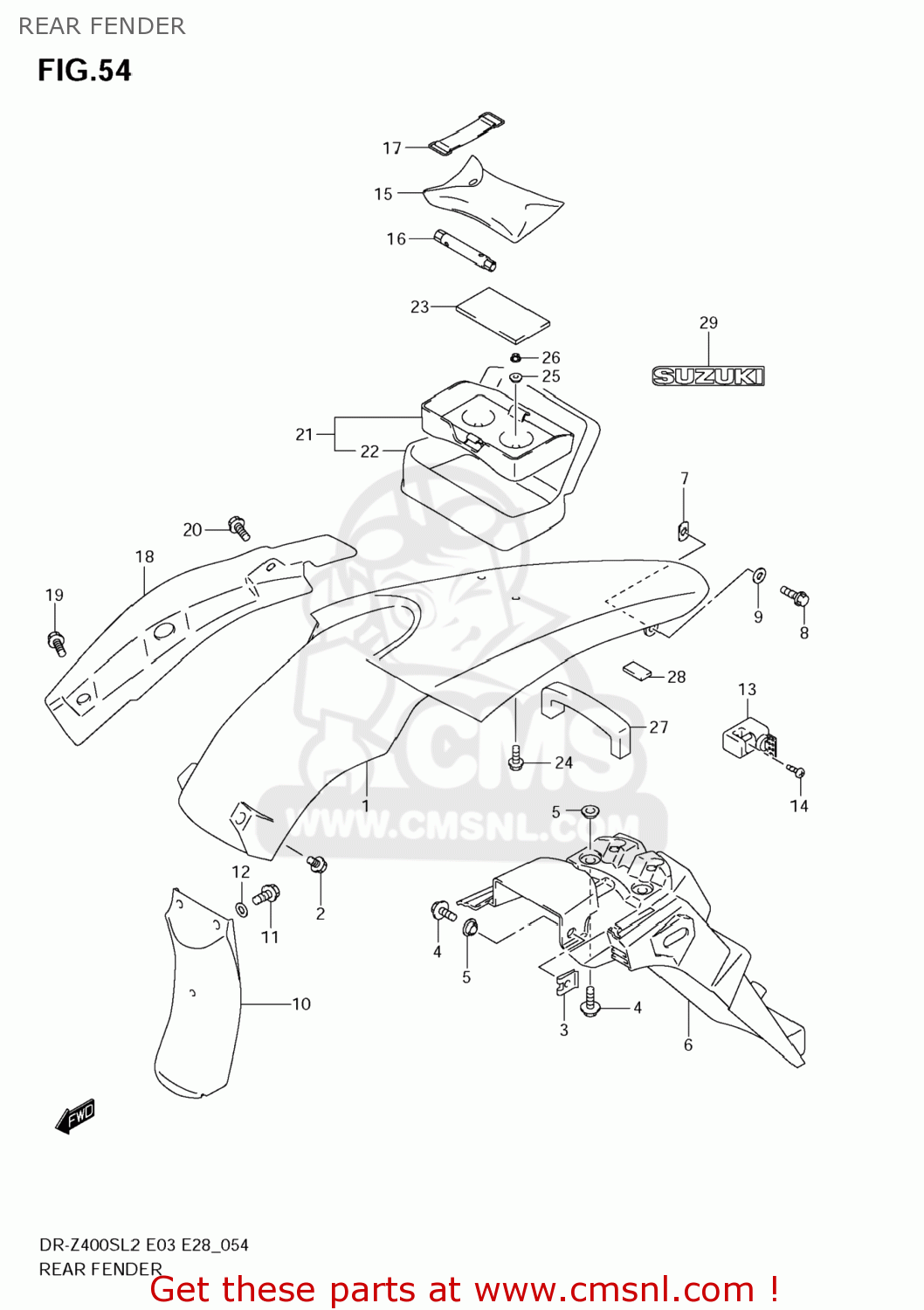

REAR FENDER

ref

part #

description

quantity

1-1

6311329FA0019
ref: 1-1

FENDER,RR

€ 37.00

1-2

6311329FA030H
ref: 1-2

FENDER,RR

€ 37.00

2

0911306001
ref: 2

BOLT(6X16)

€ 3.00

3

6331213E01
ref: 3

PLATE,RR FENDER

€ 4.00

4

0911606115
ref: 4

BOLT(6X20)

€ 2.00

5

0916906073
ref: 5

WASHER

€ 4.00

6

6331129F30
ref: 6

EXTENSION,RR FENDER

€ 61.00

7

9448424F00
ref: 7

NUT,COWL

€ 4.00

7

9448424F00
ref: 7

NUT,COWL

€ 4.00

8

015500512B
ref: 8

BOLT

€ 2.50

9

0916905024
ref: 9

WASHER

€ 2.00

10

6341129F00
ref: 10

MUDGUARD,RR FENDER FR

€ 10.00

11

015470616B
ref: 11

BOLT

€ 2.50

12

0916906045
ref: 12
09169-06055

WASHER

€ 2.50

13

9570041821
ref: 13

LOCK SET,HELMET

€ 88.00

14

0913906089
ref: 14

SCREW(6X14)

€ 2.50

15

0980021042
ref: 15

TOOL ASSY

€ 48.50

16

0981600186
ref: 16

SPARK PLUG WRENCH(8X10)

€ 8.50

17

0946200008
ref: 17

BAND

€ 4.50

18

6311429F00
ref: 18

MUDGUARD,RR FENDER,R

€ 16.50

19

0911106081
ref: 19

BOLT(6X18)

€ 4.50

20

0911106107
ref: 20

BOLT(6X12)

€ 3.00

21

9490029FB1
ref: 21

BAG ASSY,SEAT TAIL

€ 106.00

22

9491029FB0
ref: 22

BAG,SEAT TAIL

€ 55.00

23

9491544E00
ref: 23

CUSHION,RR BAG

€ 6.50

24

015500620B
ref: 24

BOLT

€ 2.50

25

0916906063
ref: 25

WASHER

€ 3.50

26

0915906078
ref: 26

NUT

€ 2.50

27

4716129B00
ref: 27

SEALER,SIDE COVER L

€ 3.50

28

3365137000
ref: 28

PROTECTOR(170X95X3.0)

€ 5.00

29-1

6872113A00CT5
ref: 29-1

EMBLEM,SUZUKI

€ 7.50

29-1

6872113A00CT5
ref: 29-1

EMBLEM,SUZUKI

€ 7.50

29-2

6872113A00FH7
ref: 29-2

EMBLEM,SUZUKI

€ 10.00

29-2

6872113A00FH7
ref: 29-2

EMBLEM,SUZUKI

€ 10.00

all assemblies
