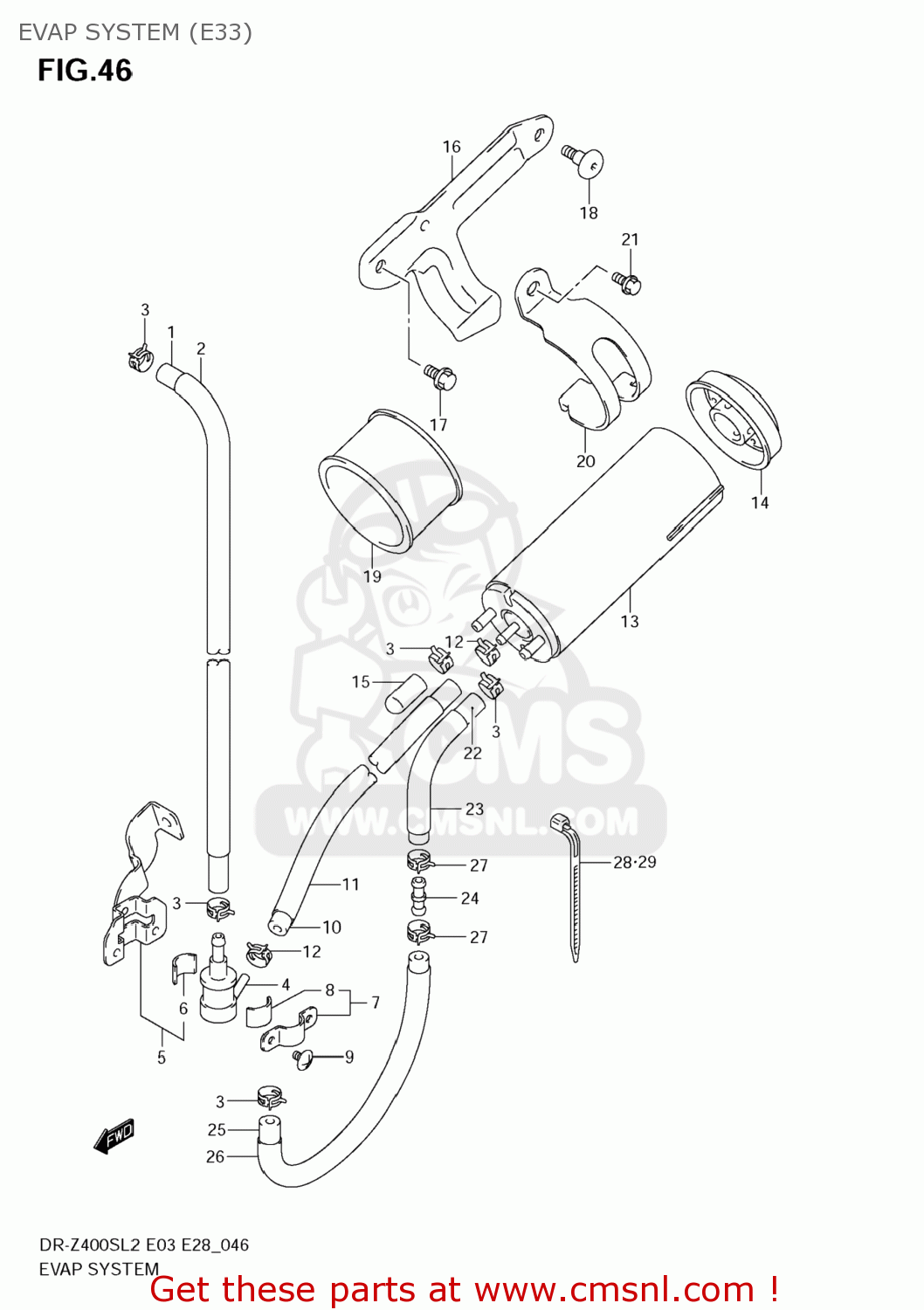

EVAP SYSTEM (E33)

ref

part #

description

quantity

1

4443429F10
ref: 1

HOSE,TANK & BREATHER VALVE

€ 20.50

2

0935114152600
ref: 2

PROTECTOR(14.5X15.5X600)

€ 9.00

3

0940111413
ref: 3

CLIP

€ 2.50

4

4424017C00
ref: 4

VALVE,FUEL TANK BREATHER

€ 40.00

5

4489029F00
ref: 5

BRACKET,BREATHER VALVE

€ 0.00

6

4489424A00
ref: 6

CUSHION

€ 1.50

7

4489224A00
ref: 7

PLATE,FUEL TANK BREATHER NO.2

€ 3.00

8

4489424A00
ref: 8

CUSHION

€ 1.50

8

4489424A00
ref: 8

CUSHION

€ 1.50

9

021420408B
ref: 9

SCREW

€ 1.50

10

4443529F10
ref: 10

HOSE,BREATHER VALVE & CANISTER

€ 36.50

10

4443529F10
ref: 10

HOSE,BREATHER VALVE & CANISTER

€ 36.50

11

093511415200B
ref: 11

HOSE

€ 0.00

12

0940112404
ref: 12

CLIP

€ 2.50

13

1721026E00
ref: 13

CANISTER ASSY,CHARCOAL

€ 261.50

14

1721148E00
ref: 14

CAP,CANISTER

€ 14.50

15

0925107003
ref: 15

CAP,OD:11.5

€ 2.00

16

4488129F00
ref: 16

BRACKET,CANISTER

€ 0.00

17

015500816B
ref: 17

BOLT

€ 3.00

18

0911606165
ref: 18

BOLT(6X16)

€ 2.50

19

4488326E00
ref: 19

CUSHION,CANISTER

€ 9.00

20

4488229F00
ref: 20

HOLDER,CANISTER

€ 0.00

21

015500612B
ref: 21

BOLT

€ 2.50

22

4443629F10
ref: 22

HOSE,CSTR PURGE

€ 22.00

23

0935114152600
ref: 23

PROTECTOR(14.5X15.5X600)

€ 9.00

24

0936406005
ref: 24

UNION

€ 4.00

25

4443729F10
ref: 25

HOSE,CSTR & CARB PURGE NO.2

€ 29.00

25

4443729F10
ref: 25

HOSE,CSTR & CARB PURGE NO.2

€ 29.00

26

0935114152600
ref: 26

PROTECTOR(14.5X15.5X600)

€ 9.00

27

0940111413
ref: 27

CLIP

€ 2.50

28

0940714407
ref: 28

CLAMP(L:145)

€ 4.00

29

0940714403
ref: 29

CLAMP(L:125)

€ 2.50

all assemblies
