HANDLE SWITCH

DR-Z400S 2012 (L2) USA (E03) DRZ400S DR Z400S

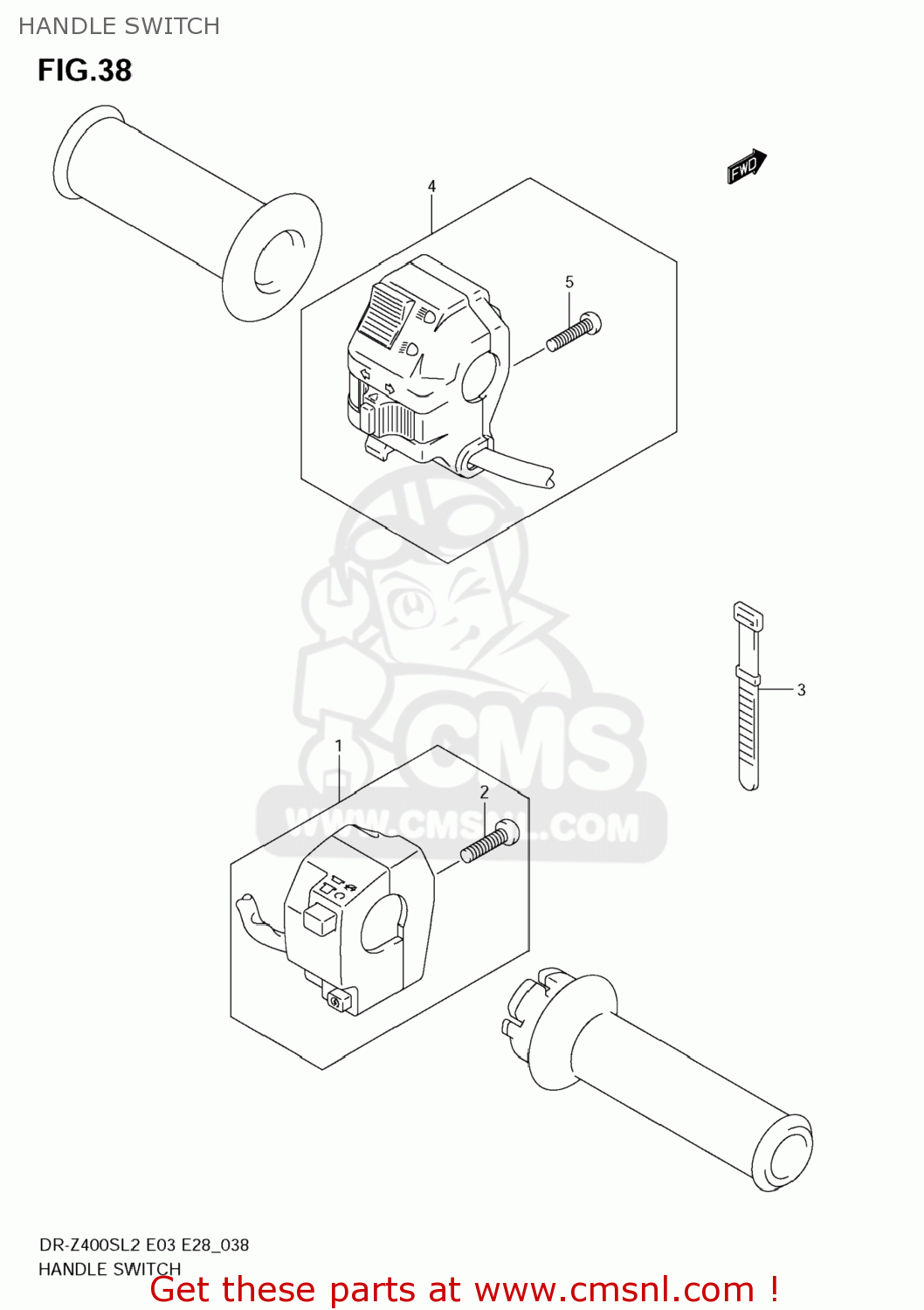

Handle switch diagram DR-Z400S 2012 (L2) USA (E03) DRZ400S DR Z400S

HANDLE SWITCH DR-Z400S 2012 (L2) USA (E03) DRZ400S DR Z400S

HANDLE SWITCH DR-Z400S 2012 (L2) USA (E03) DRZ400S DR Z400S

prices are in EUR

ref

part #

description

quantity

1

3720029F30
ref: 1

SWITCH ASSY,HANDLE,R

€ 75.50

2

021120525B
ref: 2

SCREW

€ 1.50

3

0940712402
ref: 3

CLAMP(L:120)

€ 3.00

4

3740029F40
ref: 4

SWITCH ASSY,HANDLE,L

€ 94.50

5

021120530B
ref: 5

SCREW

€ 1.50
