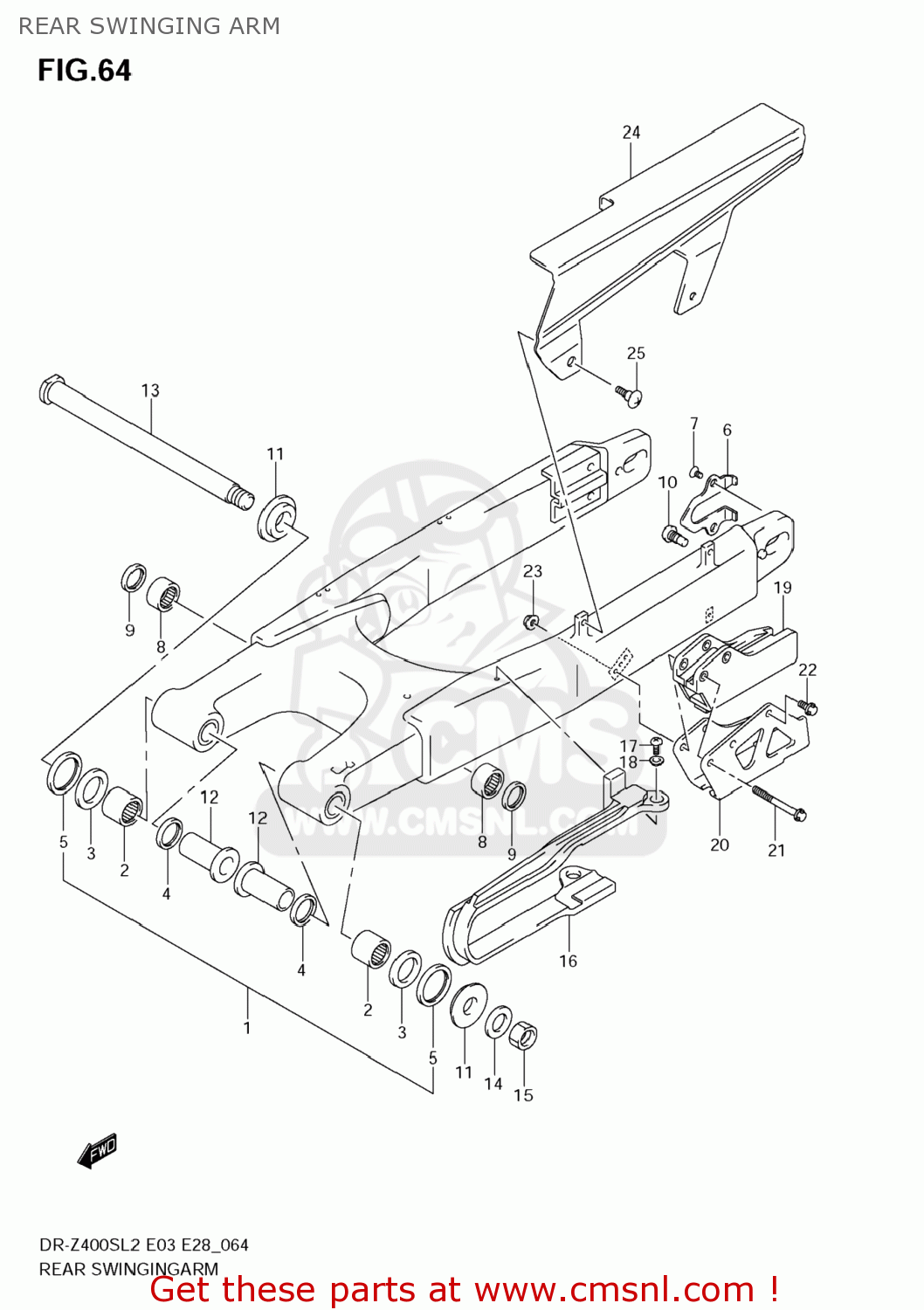

REAR SWINGING ARM

ref

part #

description

quantity

1

6100029F10
ref: 1

SWING ARM ASSEMBLY,REAR

€ 1,300.50

2

0926322017
ref: 2

BEARING(22X29X30)

€ 18.50

3

0926322064
ref: 3

BEARING(22X35X2)

€ 19.00

4

0928522001
ref: 4

SEAL,OIL(22X29X4)

€ 5.00

5

6126236E00
ref: 5

SEAL,RR SWGARM PIVOT OUTER

€ 3.50

5

6126236E00
ref: 5

SEAL,RR SWGARM PIVOT OUTER

€ 3.50

6

6112829E00
ref: 6

PLATE,RR SWING ARM AXLE

€ 8.50

7

0912605009
ref: 7

SCREW(5X8)

€ 2.50

8

0926320086
ref: 8

BEARING(20X27X15)

€ 12.50

9

6262414500
ref: 9

SEAL,CUSHION LEVER DUST

€ 3.50

10

6143113E00
ref: 10

STOPPER,CHAIN ADJUSTER

€ 7.00

11

6125044E00
ref: 11

SPACER,SWINGINGARM PIVOT OUTER

€ 8.00

11

6125044E00
ref: 11

SPACER,SWINGINGARM PIVOT OUTER

€ 8.00

12

6125236E00
ref: 12

SPACER,SWGARM PIVOT INNER

€ 20.00

12

6125236E00
ref: 12

SPACER,SWGARM PIVOT INNER

€ 20.00

13

6121129F00
ref: 13

SHAFT,RR SWINGINGARM PIVOT

€ 34.50

14

083220116B
ref: 14

WASHER

€ 2.00

15

0915916007
ref: 15

NUT

€ 10.50

16

6127329F00
ref: 16

BUFFER,CHAIN TOUCH DEFENSE

€ 43.50

17

021120508B
ref: 17

SCREW

€ 2.00

18

0916905022
ref: 18

WASHER

€ 3.50

19

6134137F00
ref: 19

GUIDE,CHAIN

€ 43.00

20

6134236E30
ref: 20

PLATE,CHAIN GUIDE

€ 31.00

21

015470650B
ref: 21

BOLT

€ 3.50

22

015470612B
ref: 22

BOLT

€ 2.00

23

083193106B
ref: 23

NUT

€ 2.50

24

6131034E00
ref: 24

CASE,CHAIN

€ 44.00

25

0913906083
ref: 25

SCREW(6X16)

€ 2.50
