FRONT FORK DAMPER

DR-Z400S 2012 (L2) USA (E03) DRZ400S DR Z400S

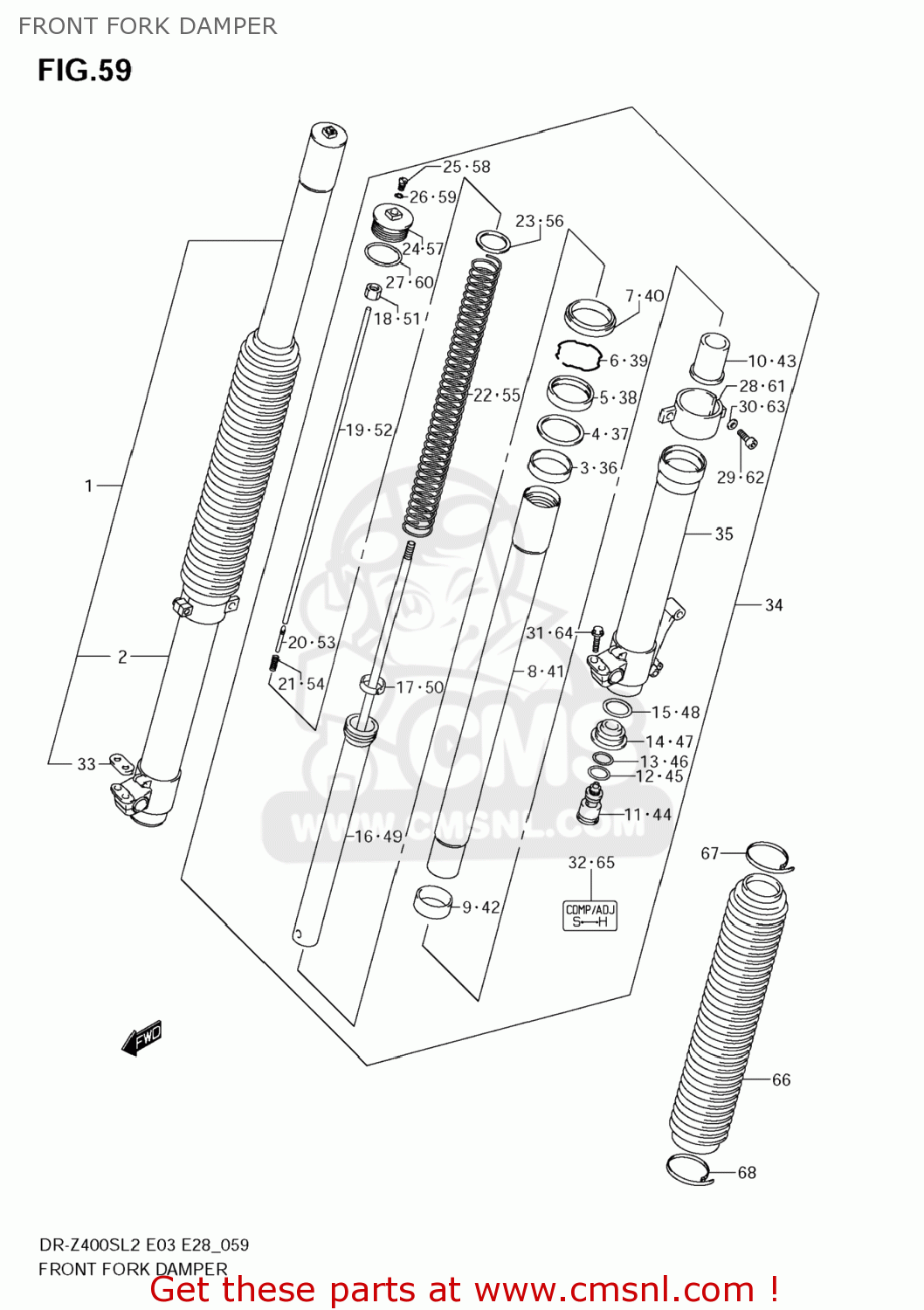

Front fork damper diagram DR-Z400S 2012 (L2) USA (E03) DRZ400S DR Z400S

FRONT FORK DAMPER DR-Z400S 2012 (L2) USA (E03) DRZ400S DR Z400S
FRONT FORK DAMPER DR-Z400S 2012 (L2) USA (E03) DRZ400S DR Z400S
FRONT FORK DAMPER DR-Z400S 2012 (L2) USA (E03) DRZ400S DR Z400S
prices are in EUR
ref
part #
description
quantity
1
5110329F60
ref: 1
DAMPER ASSY,FR FORK,R
€ 1,146.50
2
5113029F60
ref: 2
TUBE,OUTER,R
€ 749.00
3
5116736E80
ref: 3
BUSH,GUIDE
5116736E80
€ 14.00
4
5115836E00
ref: 4
SPACER,SEAL
5115836E00
€ 5.00
5
5115336E00
ref: 5
SEAL,OIL
5115336E00
€ 19.00
6
5115636E00
ref: 6
RING,STOPPER
5115636E00
€ 4.50
7
5117336E00
ref: 7
SEAL,DUST
5117336E00
€ 19.50
8
5111029F00
ref: 8
TUBE,INNER
€ 489.00
9
5112136E40
ref: 9
BUSH,SLIDE
5112136E40
€ 19.00
10
5119529F00
ref: 10
PIECE,OIL LOCK
€ 53.00
11
5117029F00
ref: 11
BOLT,CTR
€ 196.50
12
5117529F00
ref: 12
O RING
5117529F00
€ 3.50
13
5117429F00
ref: 13
O RING
5117429F00
€ 3.50
14
5120529F00
ref: 14
PLATE,END
€ 44.00
15
5111727C40
ref: 15
O RING
5111727C40
€ 3.50
16
5119029F00
ref: 16
ROD,FR DAMPER
€ 490.00
17
5112229F00
ref: 17
BUSH,SLIDE
€ 14.50
18
5182733E00
ref: 18
NUT
€ 11.00
19
5119129F00
ref: 19
ROD,PUSH
€ 13.50
20
5119205D80
ref: 20
NEEDLE
5119205D80
€ 11.00
21
5119328E00
ref: 21
SPRING,PUSH ROD
5119328E00
€ 3.50
22
5117129F60
ref: 22
SPRING,FR(K=8.63N/0.88KG)
€ 69.00
23
5119236E00
ref: 23
JOINT,SPRING
5119236E00
€ 5.50
24
5135129F00
ref: 24
BOLT,FORK
5135129F00
€ 117.50
25
5135728E30
ref: 25
BOLT,PLUG
5135728E30
€ 8.00
26
5135828E30
ref: 26
O RING,PLUG
5135828E30
€ 2.50
27
5111736E00
ref: 27
O RING
5111736E00
€ 3.50
28
5120329F00
ref: 28
HOLDER,BOOT
5120329F00
€ 31.00
29
0713005207
ref: 29
BOLT
0713005207
€ 2.00
30
0916005044
ref: 30
WASHER(5.5X10X1)
0916005044
€ 1.50
31
5132127C40
ref: 31
BOLT,HANDLE HOLDER(8X35)
5132127C40
€ 3.00
32
5114929E40
ref: 32
LABEL
5114929E40
€ 3.50
33
5151629F00
ref: 33
COVER,AXLE HOLDER
5151629F00
€ 7.00
34
5110429F60
ref: 34
DAMPER ASSY,FR FORK,L
€ 1,146.50
35
5114029F60
ref: 35
TUBE,OUTER,L
€ 814.00
36
5116736E80
ref: 36
BUSH,GUIDE
5116736E80
€ 14.00
37
5115836E00
ref: 37
SPACER,SEAL
5115836E00
€ 5.00
38
5115336E00
ref: 38
SEAL,OIL
5115336E00
€ 19.00
39
5115636E00
ref: 39
RING,STOPPER
5115636E00
€ 4.50
40
5117336E00
ref: 40
SEAL,DUST
5117336E00
€ 19.50
41
5111029F00
ref: 41
TUBE,INNER
€ 489.00
42
5112136E40
ref: 42
BUSH,SLIDE
5112136E40
€ 19.00
43
5119529F00
ref: 43
PIECE,OIL LOCK
€ 53.00
44
5117029F00
ref: 44
BOLT,CTR
€ 196.50
45
5117529F00
ref: 45
O RING
5117529F00
€ 3.50
46
5117429F00
ref: 46
O RING
5117429F00
€ 3.50
47
5120529F00
ref: 47
PLATE,END
€ 44.00
48
5111727C40
ref: 48
O RING
5111727C40
€ 3.50
49
5119029F00
ref: 49
ROD,FR DAMPER
€ 490.00
50
5112229F00
ref: 50
BUSH,SLIDE
€ 14.50
51
5182733E00
ref: 51
NUT
€ 11.00
52
5119129F00
ref: 52
ROD,PUSH
€ 13.50
53
5119205D80
ref: 53
NEEDLE
5119205D80
€ 11.00
54
5119328E00
ref: 54
SPRING,PUSH ROD
5119328E00
€ 3.50
55
5117129F60
ref: 55
SPRING,FR(K=8.63N/0.88KG)
€ 69.00
56
5119236E00
ref: 56
JOINT,SPRING
5119236E00
€ 5.50
57
5135129F00
ref: 57
BOLT,FORK
5135129F00
€ 117.50
58
5135728E30
ref: 58
BOLT,PLUG
5135728E30
€ 8.00
59
5135828E30
ref: 59
O RING,PLUG
5135828E30
€ 2.50
60
5111736E00
ref: 60
O RING
5111736E00
€ 3.50
61
5120329F00
ref: 61
HOLDER,BOOT
5120329F00
€ 31.00
62
0713005207
ref: 62
BOLT
0713005207
€ 2.00
63
0916005044
ref: 63
WASHER(5.5X10X1)
0916005044
€ 1.50
64
5132127C40
ref: 64
BOLT,HANDLE HOLDER(8X35)
5132127C40
€ 3.00
65
5114929E40
ref: 65
LABEL
5114929E40
€ 3.50
66
5157129F00019
ref: 66
BOOT
5157129F00019
€ 57.50
67
5157529F00
ref: 67
BAND,BOOT UPR
5157529F00
€ 10.50
68
5157629F00
ref: 68
BAND,BOOT LWR
5157629F00
€ 6.50
