AIR CLEANER

DR-Z400SM 2014 (L4) USA (E03) DRZ400SM DR Z400SM

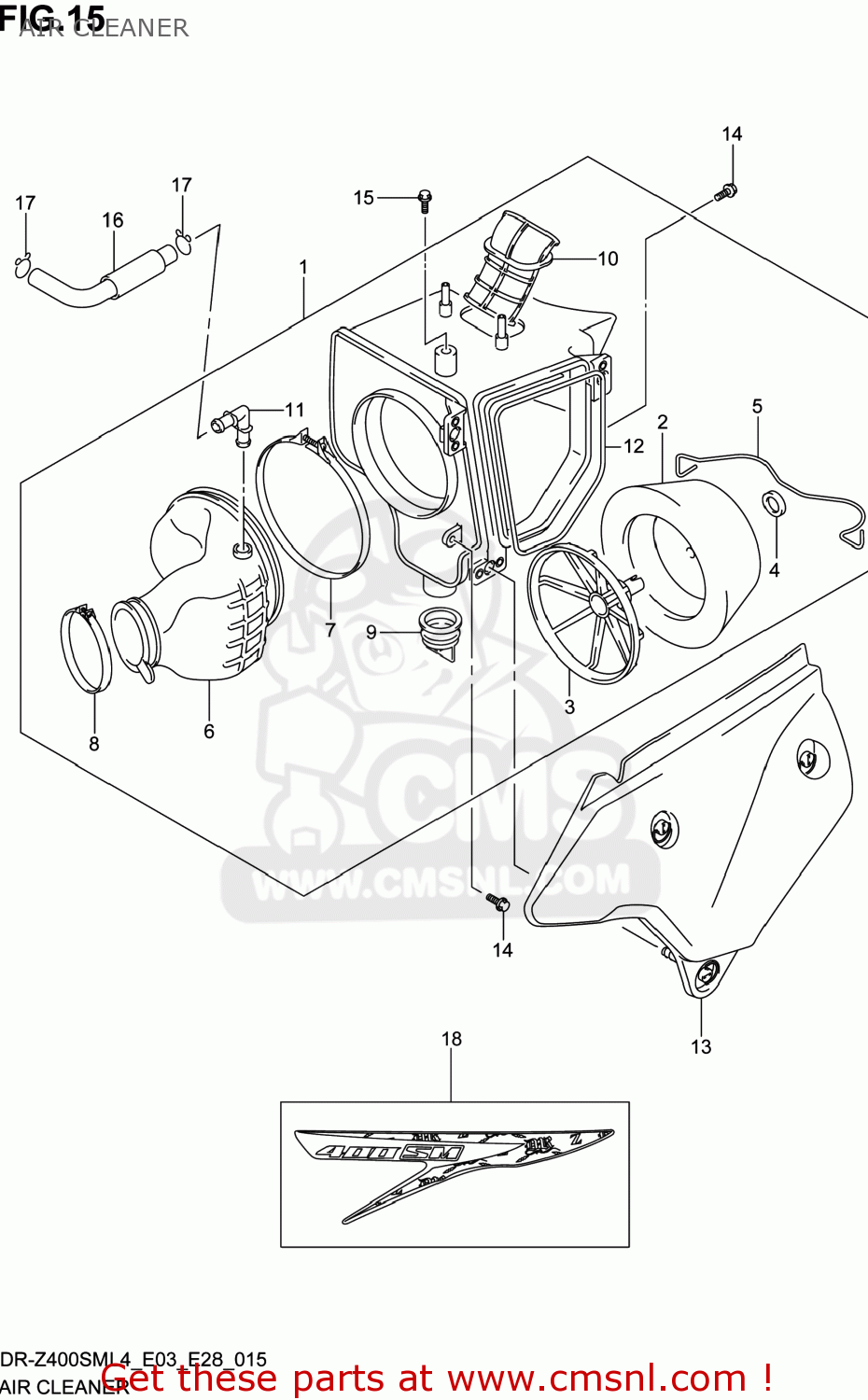

Air cleaner diagram DR-Z400SM 2014 (L4) USA (E03) DRZ400SM DR Z400SM

prices are in EUR

ref

part #

description

quantity

1370129FB2
ref: 1

CLEANER,AIR

€ 0.00

1378044E00
ref: 2

FILTER ASSY

€ 50.00

1379144E00
ref: 3

HOLDER,FILTER

€ 12.00

1379644E00
ref: 4

SPACER

€ 3.00

1394129F00
ref: 5

SPRING

€ 26.00

1388129FB0
ref: 6

TUBE,OUTLET

€ 56.50

1382629F00
ref: 7

CLAMP

€ 6.50

0940264203
ref: 8

CLAMP

€ 6.00

1387229F00
ref: 9

VALVE

€ 8.00

1389129FA0
ref: 10

TUBE,INLET

€ 25.00

1385814D20
ref: 11

JOINT

€ 6.00

1374629F00
ref: 12

GASKET,AIR CLEANER (NAS)

€ 4.50

13-1

1374029FB1019
ref: 13-1

CAP COMP,AIR CLEANER

€ 117.50

13-2

1374029FB130H
ref: 13-2

CAP COMP,AIR CLEANER

€ 134.00

015470616A
ref: 14

BOLT

€ 2.00

0911106054
ref: 15

BOLT(6X14.6)

€ 1.50

1385029FA1
ref: 16

TUBE,BREATHER

€ 9.50

0940114101
ref: 17

CLIP

€ 2.00

18-1

6814529FF0HMS
ref: 18-1

TAPE,AIR CLNR CAP

€ 29.50

18-2

6814529FG0HMT
ref: 18-2

TAPE,AIR CLNR CAP

€ 29.50

AIR CLEANER

all assemblies
