SPEEDOMETER (DR-Z400SML4 E33)

DR-Z400SM 2014 (L4) USA (E03) DRZ400SM DR Z400SM

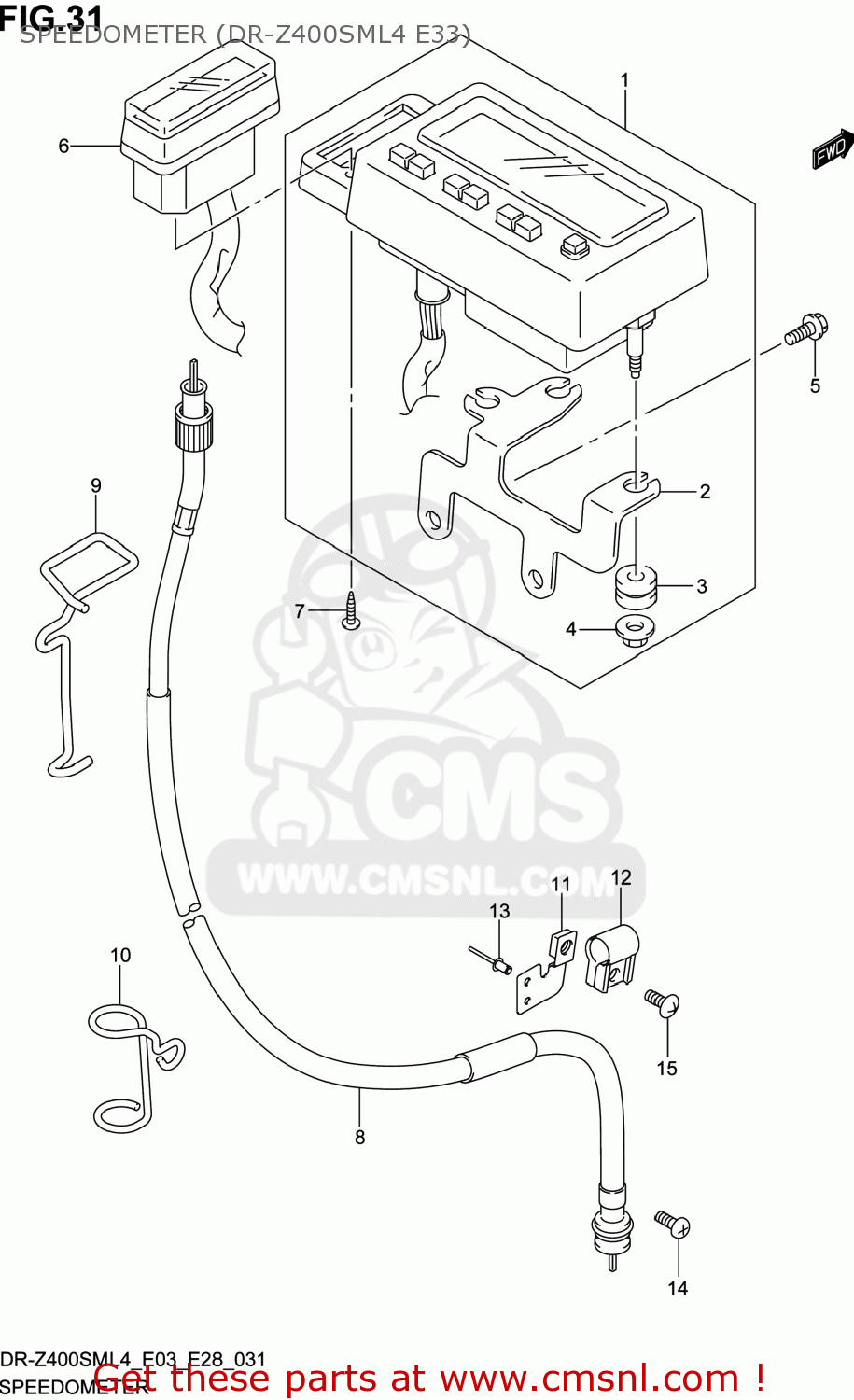

Speedometer (dr-z400sml4 e33) diagram DR-Z400SM 2014 (L4) USA (E03) DRZ400SM DR Z400SM

SPEEDOMETER (DR-Z400SML4 E33) DR-Z400SM 2014 (L4) USA (E03) DRZ400SM DR Z400SM

SPEEDOMETER (DR-Z400SML4 E33) DR-Z400SM 2014 (L4) USA (E03) DRZ400SM DR Z400SM

prices are in EUR

ref

part #

description

quantity

1

3410029F40
ref: 1

SPEEDOMETER ASSY

€ 952.00

2

3495029F00
ref: 2

BRACKET

€ 30.00

3

3499643410
ref: 3

CUSHION,METER

€ 3.00

4

083161005A
ref: 4

NUT

€ 2.50

5

015500616A
ref: 5

BOLT

€ 2.50

6

3638029F00
ref: 6

BOX ASSY,PILOT LAMP

€ 128.50

7

035110420B
ref: 7

SCREW

€ 2.00

8

3491029F20
ref: 8

CABLE ASSY,SPEEDOMETER

€ 28.50

9

3493829F10
ref: 9

GUIDE,SPEEDOMETER CABLE NO.3

€ 9.50

10

3493829F20
ref: 10

GUIDE,METER CABLE NO.1

€ 6.50

11

3493829F30
ref: 11

GUIDE,METER CABLE NO.2

€ 4.50

12

5862107A20
ref: 12

CLAMP,BRAKE HOSE

€ 3.50

13

0922903011
ref: 13

RIVET

€ 2.00

14

021120516B
ref: 14

SCREW

€ 2.00

15

021420512B
ref: 15

SCREW

€ 1.50
