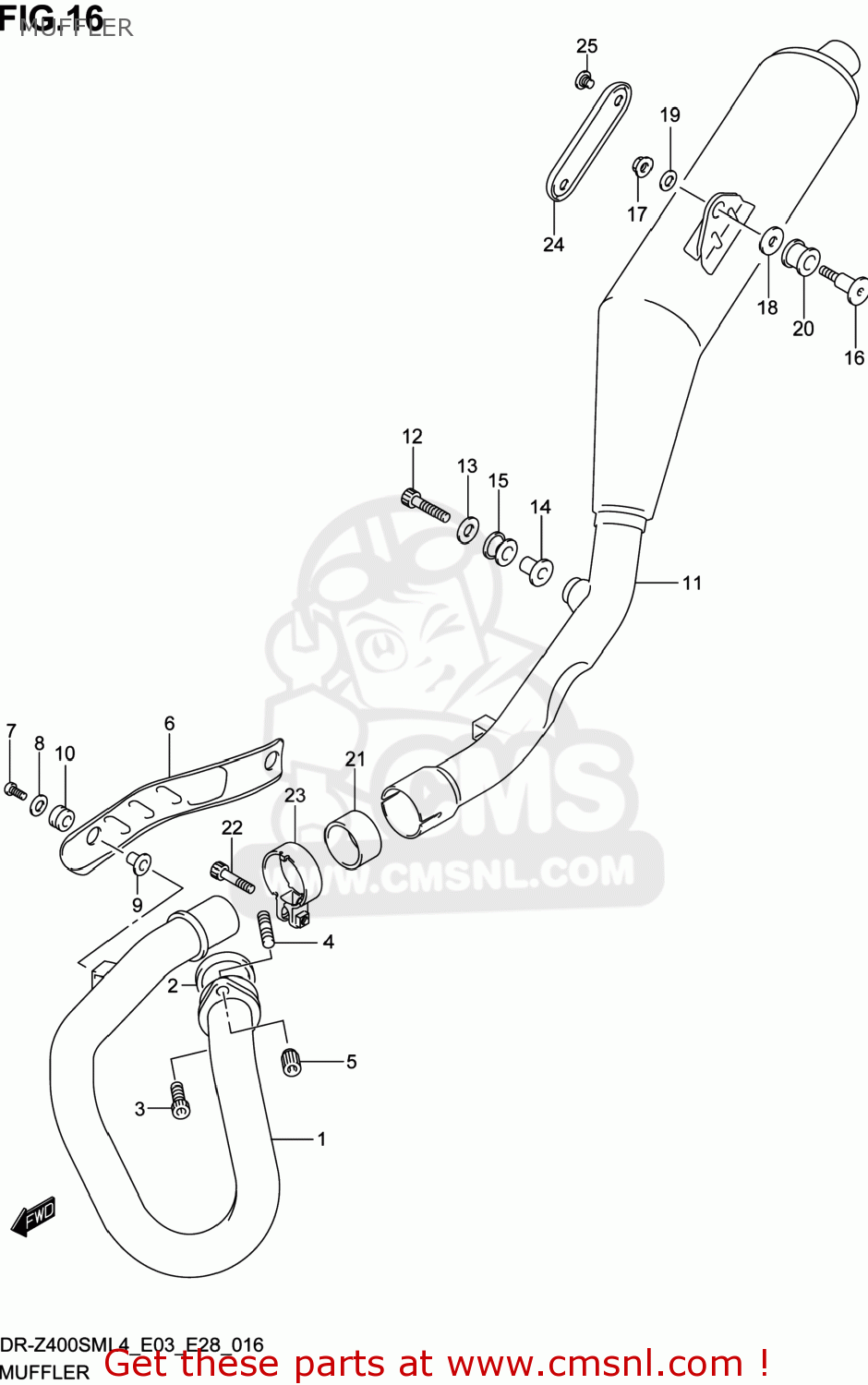

MUFFLER

ref

part #

description

quantity

1

1415029F10
ref: 1

PIPE,EXHAUST

€ 148.50

2

1418129E02
ref: 2

GASKET,EXHAUST PIPE

€ 14.00

3

071300825A
ref: 3

BOLT

€ 3.00

4

014210816A
ref: 4

BOLT,STUD

€ 2.00

5

0915908112
ref: 5

NUT

€ 4.50

6

1418029F30
ref: 6

COVER,EXHAUST PIPE

€ 37.00

7

0913906109
ref: 7

SCREW(6X16)

€ 3.00

8

0916006056
ref: 8

WASHER(6.5X18X1)

€ 2.00

9

1418507G00
ref: 9

SPACER,EXHAUST PIPE COVER

€ 2.00

10

0932008066
ref: 10

CUSHION

€ 7.50

11

1431029FA0H01
ref: 11

BODY,MUFFLER

€ 413.00

12

0910608133
ref: 12

BOLT(8X35)

€ 3.50

13

0916008151
ref: 13

WASHER(8.5X26X1.6)

€ 2.00

14

0918008151
ref: 14

SPACER(8.6X12X17.5)

€ 6.00

15

0932012043
ref: 15

CUSHION

€ 8.00

16

1441929F00
ref: 16

BOLT,MUF SPRT RR

€ 6.00

17

083193108A
ref: 17

NUT

€ 2.50

18

0916008503
ref: 18

WASHER(8.5X30X2.3)

€ 2.00

19

083220108A
ref: 19

WASHER

€ 2.00

20

0932012048
ref: 20

CUSHION

€ 5.00

21

1477129F10
ref: 21

CONNECTOR,MUFFLER JOINT

€ 12.50

22

071200840A
ref: 22

BOLT

€ 3.50

23

1445929F10
ref: 23

CLAMP,MUFFLER CONNECTOR

€ 10.50

24

1478229F00
ref: 24

COVER,MUFFLER

€ 14.50

25

1478929F01
ref: 25

SCREW

€ 2.50

all assemblies
