REAR SHOCK ABSORBER (DR-Z400SML4 E28)

DR-Z400SM 2014 (L4) USA (E03) DRZ400SM DR Z400SM

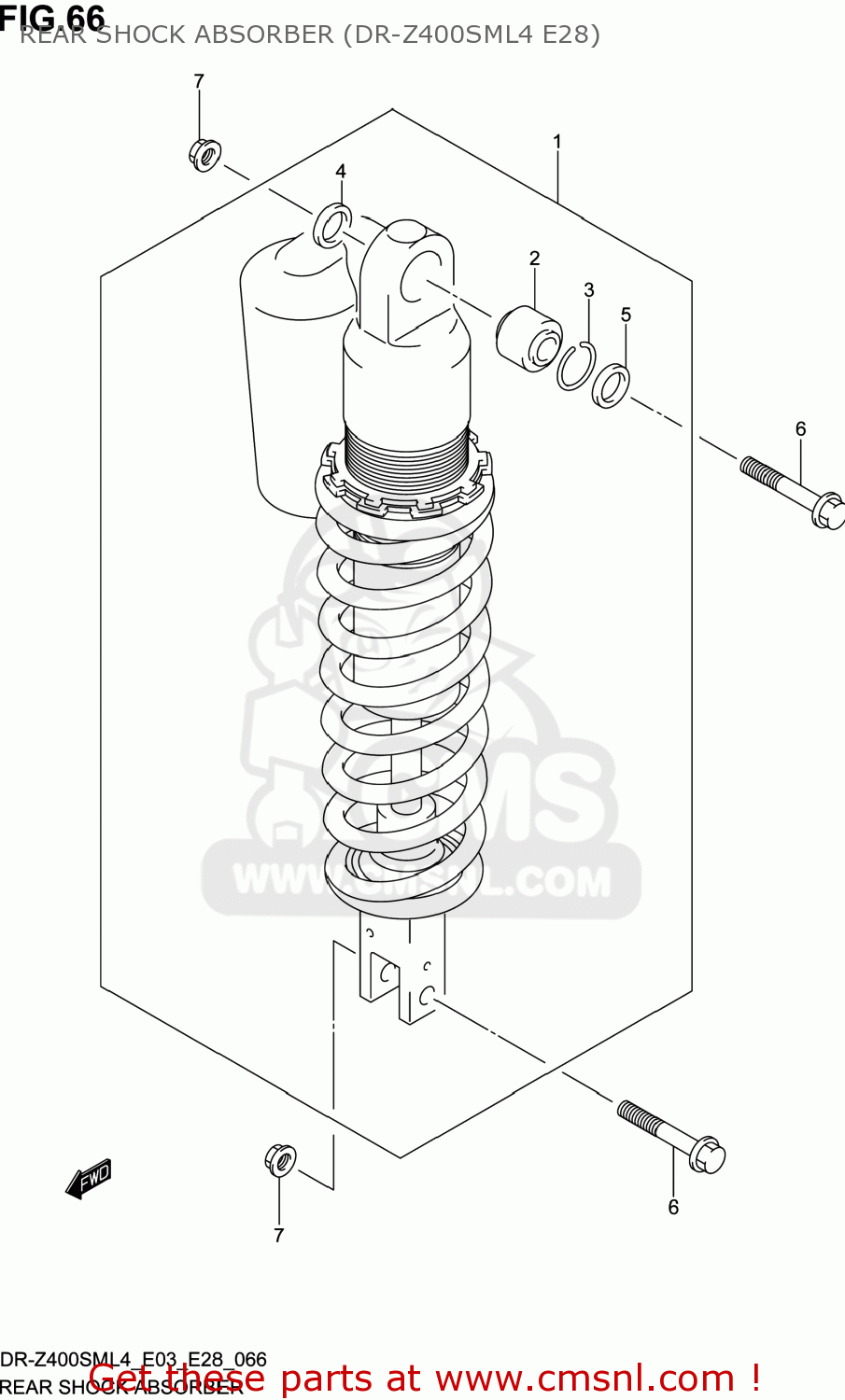

Rear shock absorber (dr-z400sml4 e28) diagram DR-Z400SM 2014 (L4) USA (E03) DRZ400SM DR Z400SM

prices are in EUR

ref

part #

description

quantity

1-1

6210029FH0YKS
ref: 1-1

ABSORBER ASSY,RR SHOCK

€ 0.00

1-1

6210029FH0YKS
ref: 1-1

ABSORBER ASSY,RR SHOCK

€ 0.00

1-2

6210029FH028W
ref: 1-2

ABSORBER ASSY,RR SHOCK

€ 0.00

1-2

6210029FH028W
ref: 1-2

ABSORBER ASSY,RR SHOCK

€ 0.00

6217536E00
ref: 2

BEARING,RR SHOCK ABSORBER

€ 55.50

6227727C40
ref: 3

RING,STOPPER

€ 2.00

6222636E00
ref: 4

SEAL,DUST UPR,R

€ 5.00

6222636E10
ref: 5

SEAL,DUST UPR,L

€ 5.00

0910310149
ref: 6

BOLT(10X47.5)

€ 3.50

0915910115
ref: 7

NUT

€ 4.00
