FUEL TANK (DR-Z400SML4 E03)

DR-Z400SM 2014 (L4) USA (E03) DRZ400SM DR Z400SM

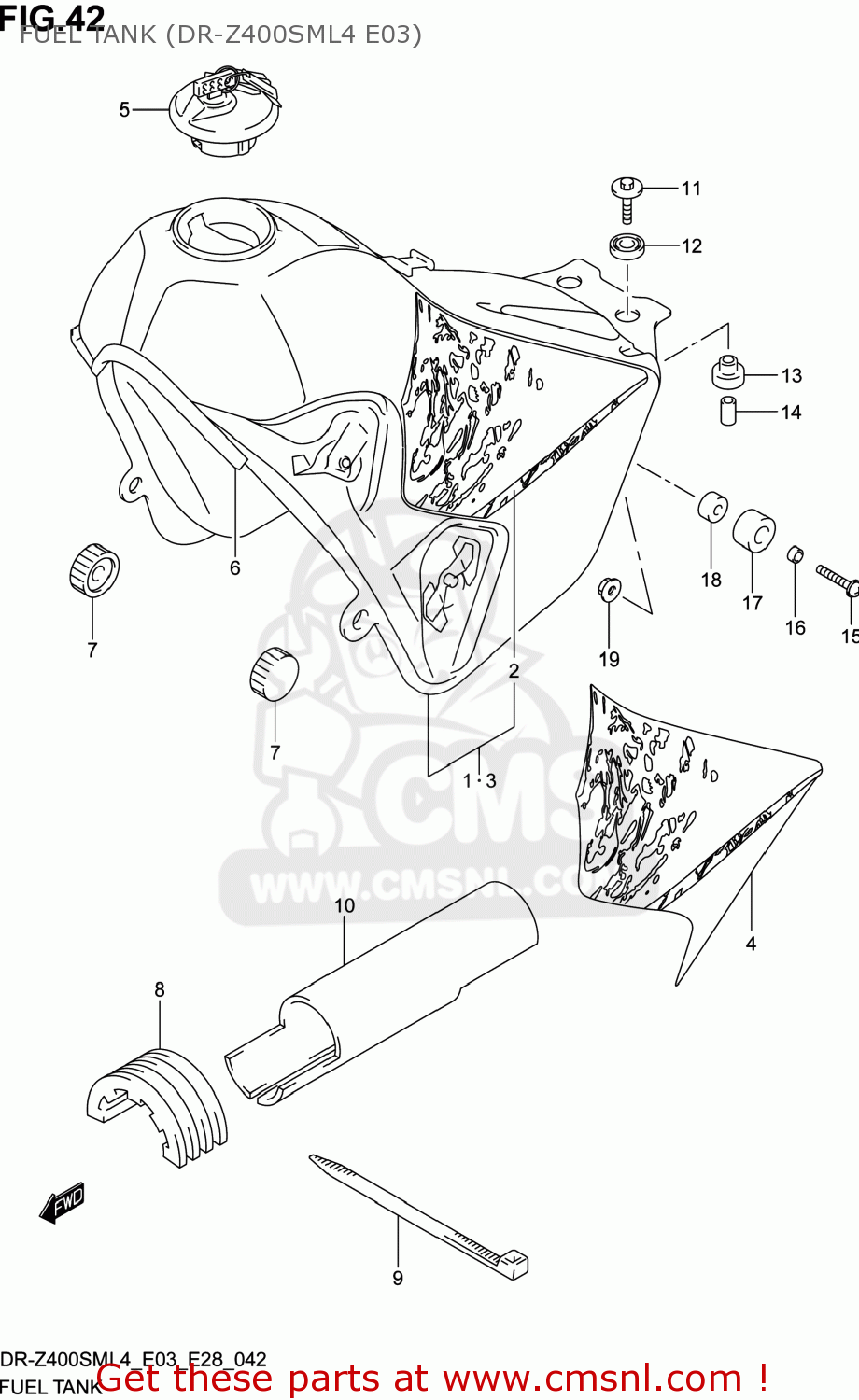

Fuel tank (dr-z400sml4 e03) diagram DR-Z400SM 2014 (L4) USA (E03) DRZ400SM DR Z400SM

prices are in EUR

ref

part #

description

quantity

4920029F70019
ref: 1

TANK ASSY,FUEL(BLACK)

€ 518.00

6812029F50HMS
ref: 2

TAPE SET,FUEL TANK

€ 37.00

4920029F90019
ref: 3

TANK ASSY,FUEL(BLACK)

€ 518.00

6812029F60HMT
ref: 4

TAPE SET,FUEL TANK

€ 95.50

4420029820
ref: 5

CAP SET,FUEL TANK

€ 112.50

6824104X50300
ref: 6

MOLDING

€ 6.00

0932910016
ref: 7

CUSHION

€ 3.00

4454129F00
ref: 8

CUSHION,FUEL TANK

€ 21.50

0940730402
ref: 9

CLAMP(L:300)

€ 3.50

4419429F00
ref: 10

SHIELD,FUEL TANK

€ 38.50

0911606214
ref: 11

BOLT(6X30)

€ 2.00

0932014022
ref: 12

CUSHION

€ 4.00

0932010020
ref: 13

CUSHION

€ 4.00

0918006271
ref: 14

SPACER(6.5X9X18)

€ 2.00

021121630B
ref: 15

SCREW

€ 2.00

0918006215
ref: 16

SPACER(6.5X20X9)

€ 5.00

4514914D00
ref: 17

CUSHION

€ 3.00

0918006306
ref: 18

SPACER(6.5X9X5)

€ 2.00

083193106B
ref: 19

NUT

€ 2.50
