SEAT

DR-Z400SM 2014 (L4) USA (E03) DRZ400SM DR Z400SM

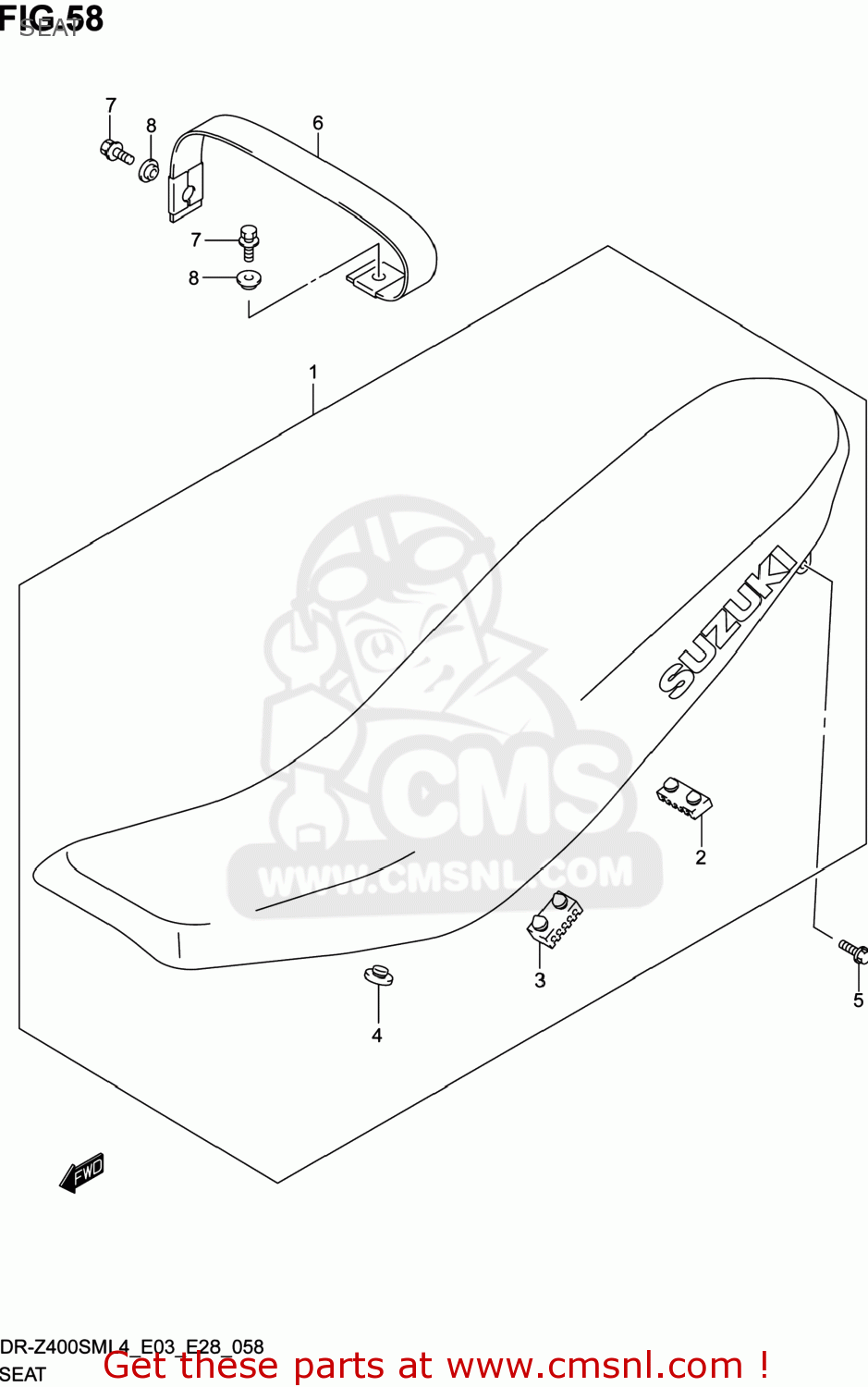

Seat diagram DR-Z400SM 2014 (L4) USA (E03) DRZ400SM DR Z400SM

SEAT DR-Z400SM 2014 (L4) USA (E03) DRZ400SM DR Z400SM

SEAT DR-Z400SM 2014 (L4) USA (E03) DRZ400SM DR Z400SM

prices are in EUR

ref

part #

description

quantity

1

4510029FE0BYD
ref: 1

SEAT ASSY

€ 224.00

2

4514912C00
ref: 2

CUSHION,SEAT(40X20X6)

€ 3.00

2

4514912C00
ref: 2

CUSHION,SEAT(40X20X6)

€ 3.00

3

4514931300
ref: 3

CUSHION,SEAT(40X20X15)

€ 2.00

4

0932110022
ref: 4

CUSHION

€ 2.00

5

0911606182
ref: 5

BOLT(6X20)

€ 3.00

6

4518029F00T5N
ref: 6

BAND ASSY,SEAT(GRAY)

€ 47.00

7

0911606150
ref: 7

BOLT(6X25)

€ 2.50

8

0916906063
ref: 8

WASHER

€ 3.50
