FRONT FORK DAMPER

DR-Z400SM 2014 (L4) USA (E03) DRZ400SM DR Z400SM

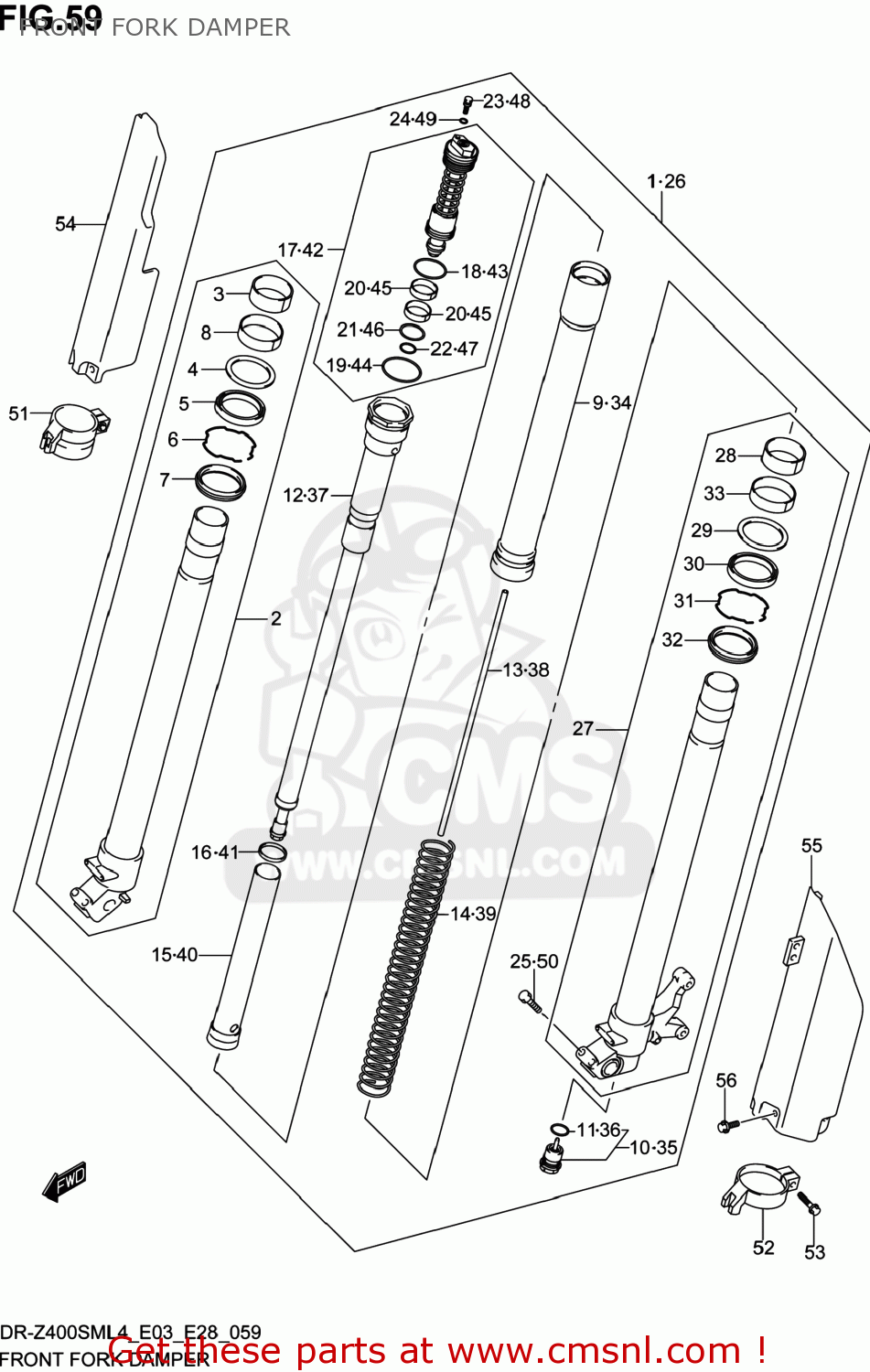

Front fork damper diagram DR-Z400SM 2014 (L4) USA (E03) DRZ400SM DR Z400SM

FRONT FORK DAMPER DR-Z400SM 2014 (L4) USA (E03) DRZ400SM DR Z400SM
FRONT FORK DAMPER DR-Z400SM 2014 (L4) USA (E03) DRZ400SM DR Z400SM
FRONT FORK DAMPER DR-Z400SM 2014 (L4) USA (E03) DRZ400SM DR Z400SM
prices are in EUR
ref
part #
description
quantity
1
5110329F70
ref: 1
DAMPER ASSY,FR FORK,R
5110329F70
€ 1,637.50
2
5111029F70
ref: 2
TUBE,INNER,R
€ 477.50
3
5116736F00
ref: 3
BUSH,GUIDE
5116736F00
€ 14.50
4
5115836F00
ref: 4
SPACER,SEAL
5115836F00
€ 5.50
5
5115337F80
ref: 5
SEAL,OIL
5115337F80
€ 14.00
6
5115627C40
ref: 6
RING,OIL SEAL STOPPER
5115627C40
€ 4.00
7
5117337F80
ref: 7
SEAL,DUST
5117337F80
€ 18.00
8
5112136F00
ref: 8
BUSH,SLIDE
5112136F00
€ 12.00
9
5113029F70
ref: 9
TUBE,OUTER
€ 765.00
10
5117037F70
ref: 10
BOLT,CTR
€ 117.00
11
5117736E20
ref: 11
O RING
5117736E20
€ 3.00
12
5119029F70
ref: 12
DAMPER
€ 780.00
13
5119129F70
ref: 13
ROD,PUSH
€ 14.00
14
5117129F70
ref: 14
SPRING,FR
€ 91.00
15
5119837F70
ref: 15
COLLAR,SPRING
€ 40.50
16
5117829F70
ref: 16
SPRING SEAT
5117829F70
€ 12.50
17
5135129F70
ref: 17
BOLT,FORK
€ 254.00
18
5111737F80
ref: 18
O RING
5111737F80
€ 4.00
19
5111837F80
ref: 19
O RING
5111837F80
€ 4.50
20
5112328E30
ref: 20
BUSH,FORK BOLT SLIDE
5112328E30
€ 10.50
21
5117436E40
ref: 21
O RING
5117436E40
€ 3.00
22
5117536E20
ref: 22
O RING
5117536E20
€ 2.50
23
5135736F20
ref: 23
BOLT,PLUG
5135736F20
€ 8.50
24
5135828E30
ref: 24
O RING,PLUG
5135828E30
€ 2.50
25
5116635F00
ref: 25
BOLT
5116635F00
€ 7.00
26
5110429F70
ref: 26
DAMPER ASSY,FR FORK,L
€ 1,637.50
27
5112029F70
ref: 27
TUBE,INNER,L
5112029F70
€ 475.00
28
5116736F00
ref: 28
BUSH,GUIDE
5116736F00
€ 14.50
29
5115836F00
ref: 29
SPACER,SEAL
5115836F00
€ 5.50
30
5115337F80
ref: 30
SEAL,OIL
5115337F80
€ 14.00
31
5115627C40
ref: 31
RING,OIL SEAL STOPPER
5115627C40
€ 4.00
32
5117337F80
ref: 32
SEAL,DUST
5117337F80
€ 18.00
33
5112136F00
ref: 33
BUSH,SLIDE
5112136F00
€ 12.00
34
5113029F70
ref: 34
TUBE,OUTER
€ 765.00
35
5117037F70
ref: 35
BOLT,CTR
€ 117.00
36
5117736E20
ref: 36
O RING
5117736E20
€ 3.00
37
5119029F70
ref: 37
DAMPER
€ 780.00
38
5119129F70
ref: 38
ROD,PUSH
€ 14.00
39
5117129F70
ref: 39
SPRING,FR
€ 91.00
40
5119837F70
ref: 40
COLLAR,SPRING
€ 40.50
41
5117829F70
ref: 41
SPRING SEAT
5117829F70
€ 12.50
42
5135129F70
ref: 42
BOLT,FORK
€ 254.00
43
5111737F80
ref: 43
O RING
5111737F80
€ 4.00
44
5111837F80
ref: 44
O RING
5111837F80
€ 4.50
45
5112328E30
ref: 45
BUSH,FORK BOLT SLIDE
5112328E30
€ 10.50
46
5117436E40
ref: 46
O RING
5117436E40
€ 3.00
47
5117536E20
ref: 47
O RING
5117536E20
€ 2.50
48
5135736F20
ref: 48
BOLT,PLUG
5135736F20
€ 8.50
49
5135828E30
ref: 49
O RING,PLUG
5135828E30
€ 2.50
50
5116635F00
ref: 50
BOLT
5116635F00
€ 7.00
51
5122036E61
ref: 51
GUIDE,PROTECTOR,R
5122036E61
€ 31.50
52
5121036E61
ref: 52
GUIDE,PROTECTOR,L
5121036E61
€ 29.00
53
0154706207
ref: 53
BOLT
0154706207
€ 2.50
54
5150129F70019
ref: 54
PROTECTOR,FR FORK,R
€ 71.00
55
5151129F70019
ref: 55
PROTECTOR,FR FORK,L
€ 71.00
56
0910306256
ref: 56
BOLT(6X10)
0910306256
€ 2.00
