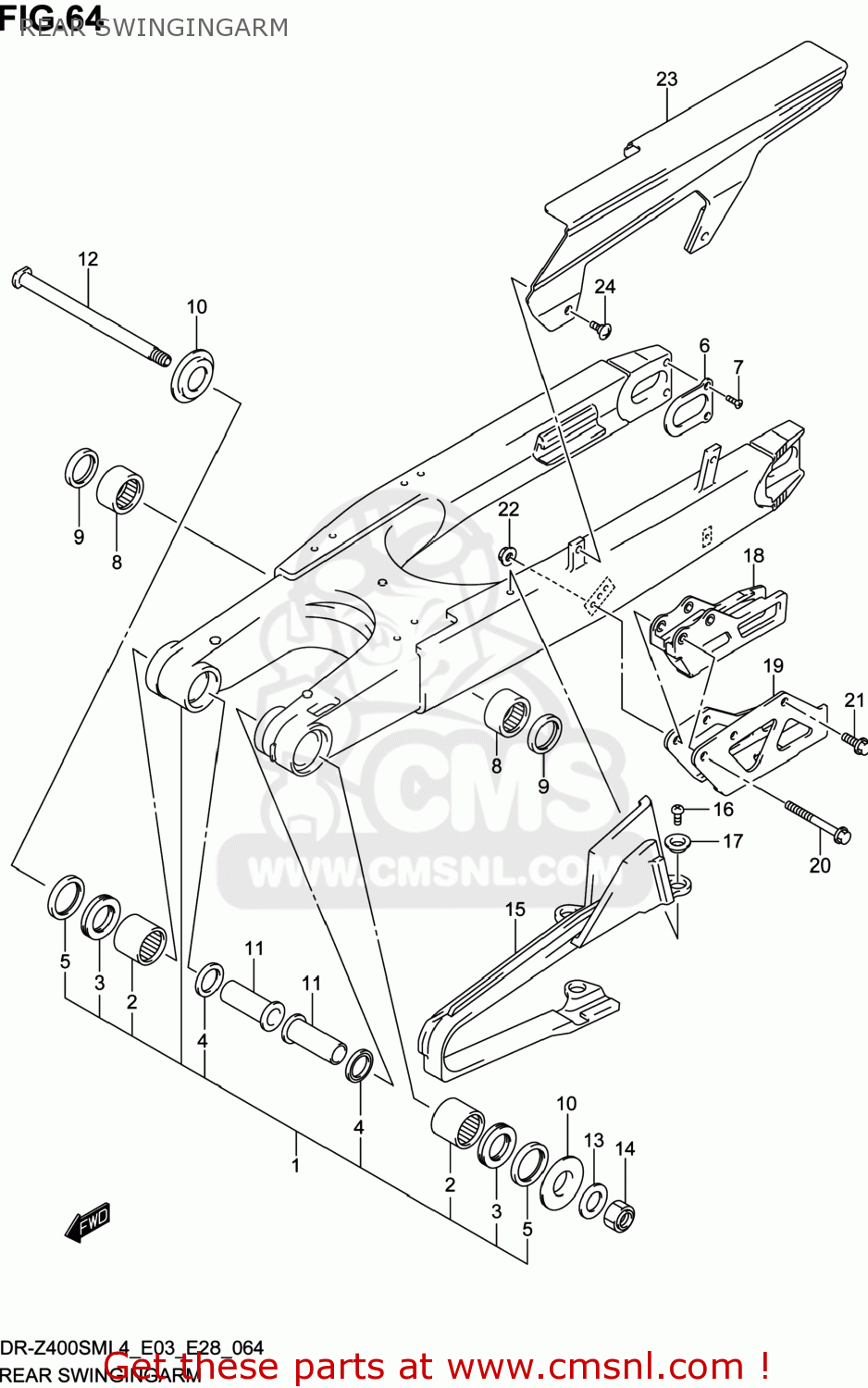

REAR SWINGINGARM

ref

part #

description

quantity

1

6100029F70
ref: 1

SWINGINGARM ASSY,RR

€ 1,133.50

2

0926322017
ref: 2

BEARING(22X29X30)

€ 18.50

3

0926322064
ref: 3

BEARING(22X35X2)

€ 19.00

4

0928522001
ref: 4

SEAL,OIL(22X29X4)

€ 5.00

5

6126236E00
ref: 5

SEAL,RR SWGARM PIVOT OUTER

€ 3.50

6

6112829F70
ref: 6

PLATE,SWGARM REAR

€ 0.00

7

0912005003
ref: 7

SCREW(5X10)

€ 2.00

8

0926320086
ref: 8

BEARING(20X27X15)

€ 12.50

9

6262414500
ref: 9

SEAL,CUSHION LEVER DUST

€ 3.50

10

6125044E00
ref: 10

SPACER,SWINGINGARM PIVOT OUTER

€ 8.00

11

6125236E00
ref: 11

SPACER,SWGARM PIVOT INNER

€ 20.00

12

6121129F00
ref: 12

SHAFT,RR SWINGINGARM PIVOT

€ 34.50

13

083220116B
ref: 13

WASHER

€ 2.00

14

0915916007
ref: 14

NUT

€ 10.50

15

6127329F20
ref: 15

BUFFER,CHAIN TOUCH DEFENSE

€ 43.50

16

021120508B
ref: 16

SCREW

€ 2.00

17

0916905022
ref: 17

WASHER

€ 3.50

18

6134135G00
ref: 18

GUIDE,CHAIN

€ 43.00

19

6134237F00
ref: 19

PLATE,CHAIN GUIDE

€ 31.00

20

015470650A
ref: 20

BOLT

€ 2.50

21

015470612A
ref: 21

BOLT

€ 2.00

22

083193106A
ref: 22

NUT

€ 2.50

23

6131034E00
ref: 23

CASE,CHAIN

€ 44.00

24

0913906083
ref: 24

SCREW(6X16)

€ 2.50
