AIR CLEANER

RM-Z250 2007 (K7) USA (E03) RMZ250 RM Z250

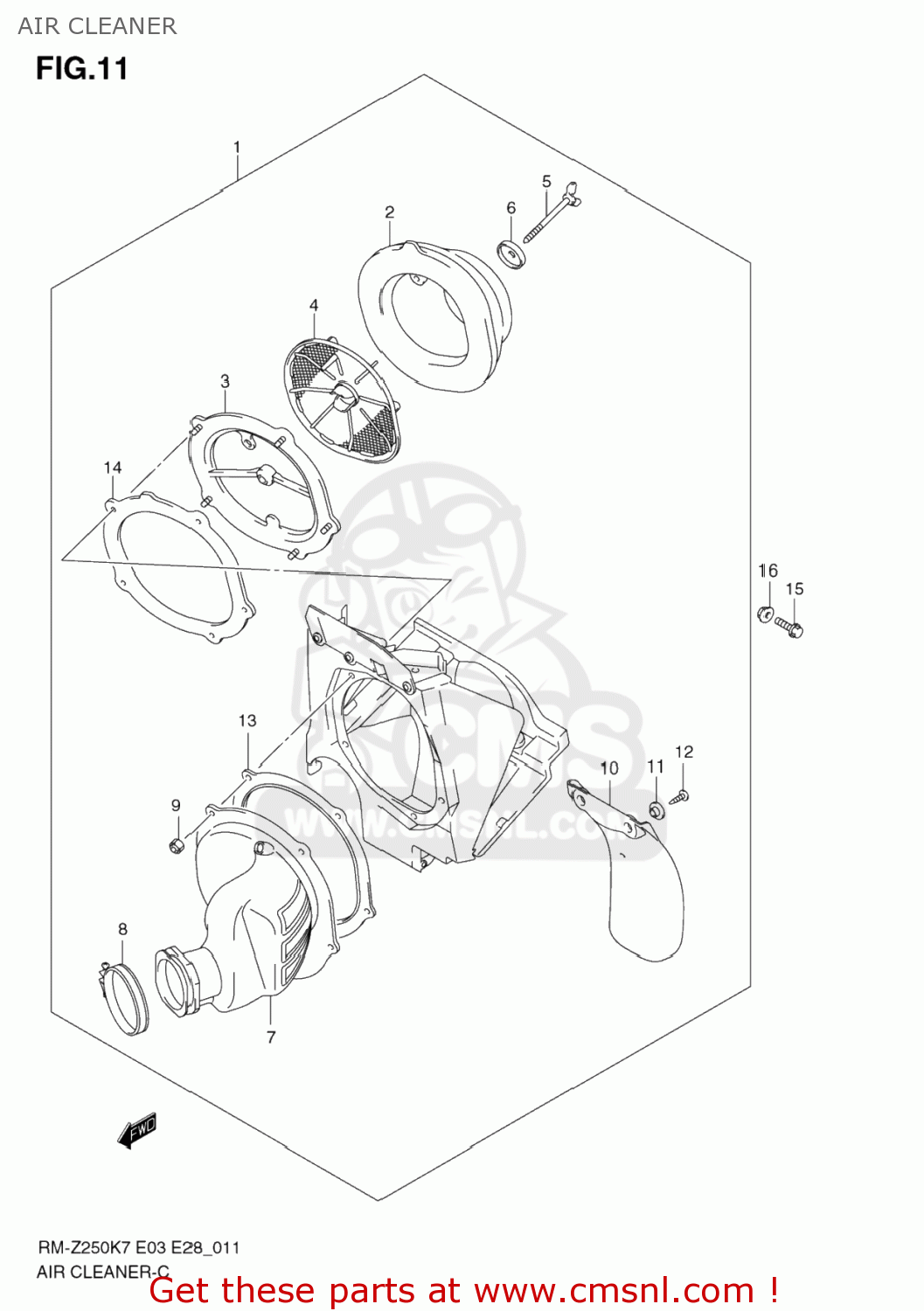

Air cleaner diagram RM-Z250 2007 (K7) USA (E03) RMZ250 RM Z250

prices are in EUR

ref

part #

description

quantity

1370010H00
ref: 1

CLEANER ASSY,AIR

€ 315.50

1378010H00
ref: 2

FILTER ASSY

€ 39.50

1379037F20
ref: 3

BASE,FILTER

€ 15.50

1379135G00
ref: 4

HOLDER,FILTER

€ 13.00

1383137F20
ref: 5

BOLT,WING

€ 5.50

1379213A01
ref: 6

WASHER,AIR CLEANER

€ 3.00

1388110H00
ref: 7

TUBE,OUTLET

€ 66.50

1382635G00
ref: 8

CLAMP

€ 6.00

083192105B
ref: 9

NUT

€ 2.00

1373836E01
ref: 10

MUDGUARD

€ 18.50

1383802B00
ref: 11

COLLAR

€ 2.50

1383135F00
ref: 12

SCREW

€ 2.00

1379537F20
ref: 13

PLATE

€ 12.00

1379637F20
ref: 14

GASKET (NAS)

€ 9.50

0910306256
ref: 15

BOLT(6X10)

€ 2.00

6923237F01
ref: 16

WASHER

€ 7.50
