TRANSMISSION

RM-Z250 2007 (K7) USA (E03) RMZ250 RM Z250

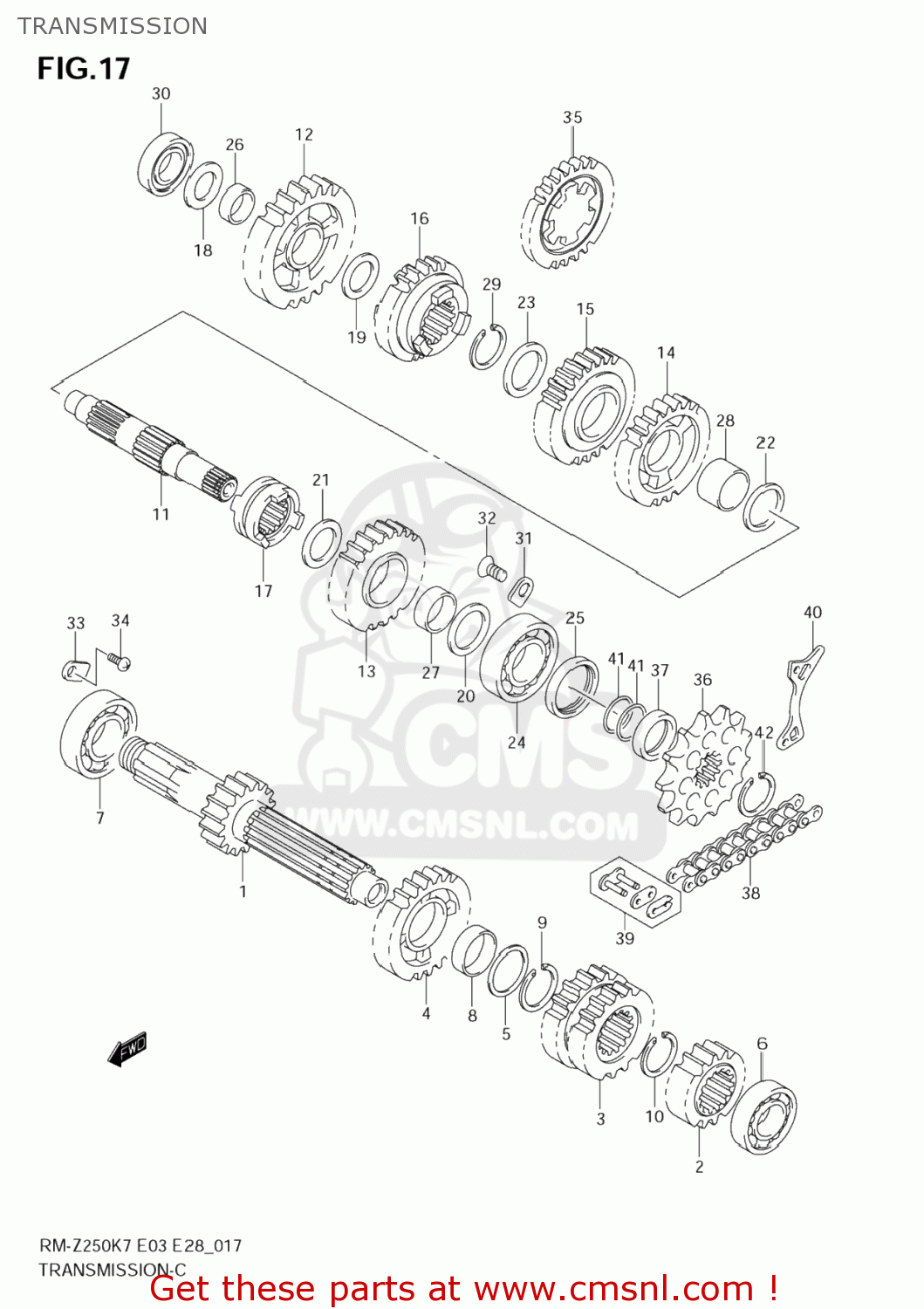

Transmission diagram RM-Z250 2007 (K7) USA (E03) RMZ250 RM Z250

TRANSMISSION RM-Z250 2007 (K7) USA (E03) RMZ250 RM Z250
TRANSMISSION RM-Z250 2007 (K7) USA (E03) RMZ250 RM Z250
TRANSMISSION RM-Z250 2007 (K7) USA (E03) RMZ250 RM Z250
prices are in EUR
ref
part #
description
quantity
1
2412010H00
ref: 1
24120-10H01
SHAFT,COUNTER,
2412010H00
€ 175.00
2
2422110H00
ref: 2
24221-10H01
GEAR,2ND DRIVE
€ 82.50
3
2423110H00
ref: 3
24231-10H10
GEAR,3RD & 4TH
€ 113.00
4
2425110H00
ref: 4
GEAR,5TH DRIVE(NT:22)
2425110H00
€ 86.50
5
0918124009
ref: 5
SHIM(24X29X1)
0918124009
€ 4.50
6
0926217040
ref: 6
BEARING(17X40X9.5)
0926217040
€ 17.50
7
0926222018
ref: 7
BEARING(22X50X14)
0926222018
€ 17.50
8
0930024004
ref: 8
BUSH(24X27X0.0)
0930024004
€ 17.50
9
0938024007
ref: 9
CIRCLIP
0938024007
€ 4.50
10
0938024007
ref: 10
CIRCLIP
0938024007
€ 4.50
11
2413110H00
ref: 11
24131-10H01
SHAFT,DRIVE
€ 151.00
12
2431110H01
ref: 12
GEAR,1ST DRIVEN(NT:28)
2431110H01
€ 98.50
13
2432110H00
ref: 13
24321-10H01
GEAR,2ND DRIVE
€ 103.00
14
2433110H00
ref: 14
GEAR,3RD DRIVEN(NT:25)
2433110H00
€ 103.00
15
2434110H00
ref: 15
GEAR,4TH DRIVEN(NT:26)
2434110H00
€ 103.00
16
2435110H00
ref: 16
GEAR,5TH DRIVEN(NT24)
2435110H00
€ 105.50
17
2441210H00
ref: 17
24412-10H01
DOG,SLIDING
€ 61.50
18
0918117195
ref: 18
SHIM(17X28X1)
0918117195
€ 3.00
19
0918120167
ref: 19
SHIM(20X28X1)
0918120167
€ 2.50
20
0918120195
ref: 20
SHIM(20X30X1)
0918120195
€ 3.00
21
0918122167
ref: 21
SHIM(22X30X1)
0918122167
€ 3.00
22
0918124008
ref: 22
SHIM(24X30X1)
0918124008
€ 3.00
23
0918124008
ref: 23
SHIM(24X30X1)
0918124008
€ 3.00
24
0926220147
ref: 24
BEARING(20X52X7.5)
0926220147
€ 66.50
25
0928928012
ref: 25
SEAL,OIL(28X38X7.5)
0928928012
€ 8.00
26
0930020037
ref: 26
BUSH(20X24X10)
0930020037
€ 12.50
27
0930022020
ref: 27
BUSH(22X25X12)
0930022020
€ 20.00
28
0930024003
ref: 28
BUSH(24X27X18)
0930024003
€ 25.50
29
0938024007
ref: 29
CIRCLIP
0938024007
€ 4.50
30
0926217023
ref: 30
BEARING(17X40X12)
0926217023
€ 14.00
31
2474120A00
ref: 31
RETAINER,COUNTER BEARING,R
2474120A00
€ 2.00
32
0912606011
ref: 32
SCREW(6X12)
0912606011
€ 2.00
33
2474121A00
ref: 33
RETAINER
2474121A00
€ 2.00
34
0912506110
ref: 34
BOLT(6X12)
0912506110
€ 2.50
35
2626010H00
ref: 35
GEAR,KICK STARTER IDLE
2626010H00
€ 194.50
36-1
2751114111
ref: 36-1
SPROCKET,ENGINE
2751114111
€ 19.00
36-2
2751114121
ref: 36-2
SPROCKET,ENGINE
2751114121
€ 27.50
37
2753143D00
ref: 37
SPACER,ENGINE SPROCKET
2753143D00
€ 20.00
38-1
2760043D01112
ref: 38-1
27600-43D02-114
CHAIN(DID520DMA2,112L)
2760043D01112
€ 72.50
38-1
2760043D01112
ref: 38-1
27600-43D02-114
CHAIN(DID520DMA2,112L)
2760043D01112
€ 72.50
38-2
2760010H00112
ref: 38-2
CHAIN(DID520DMA2,112L)
2760010H00112
€ 95.00
38-2
2760010H00112
ref: 38-2
CHAIN(DID520DMA2,112L)
2760010H00112
€ 95.00
39-1
2762043D01
ref: 39-1
JOINT SET,CHAIN
€ 5.00
39-1
2762043D01
ref: 39-1
JOINT SET,CHAIN
€ 5.00
39-2
2762010H00
ref: 39-2
JOINT SET,CHAIN
€ 9.00
39-2
2762010H00
ref: 39-2
JOINT SET,CHAIN
€ 9.00
40
2764110H00
ref: 40
27641-10H01
PLATE,FRONT CH
2764110H00
€ 9.00
41
0928020006
ref: 41
O RING(D:1.9,ID:19.8)
0928020006
€ 2.50
42
0938020007
ref: 42
CIRCLIP
0938020007
€ 3.00
