REAR MASTER CYLINDER

RM-Z250 2007 (K7) USA (E03) RMZ250 RM Z250

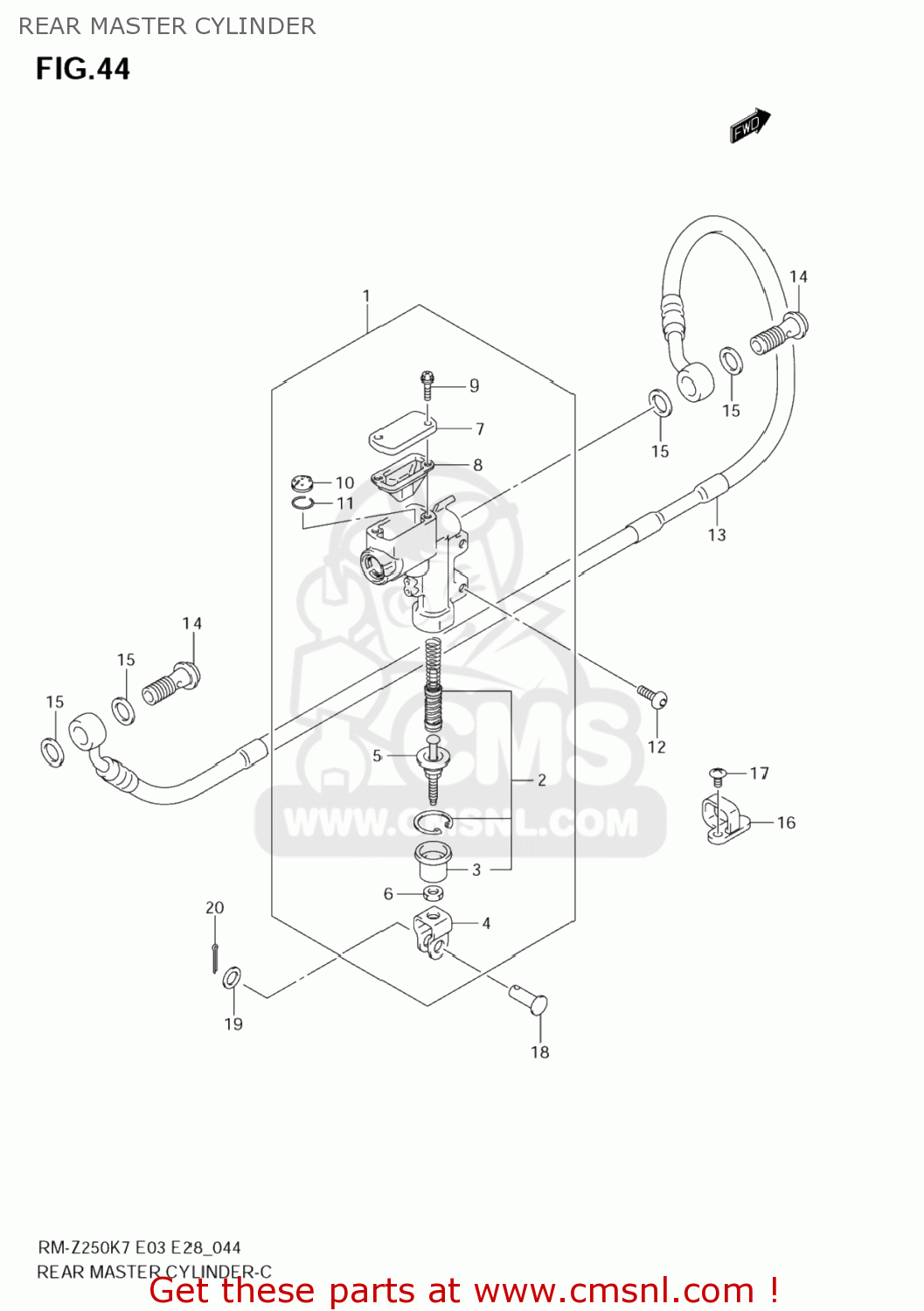

Rear master cylinder diagram RM-Z250 2007 (K7) USA (E03) RMZ250 RM Z250

REAR MASTER CYLINDER RM-Z250 2007 (K7) USA (E03) RMZ250 RM Z250
REAR MASTER CYLINDER RM-Z250 2007 (K7) USA (E03) RMZ250 RM Z250
REAR MASTER CYLINDER RM-Z250 2007 (K7) USA (E03) RMZ250 RM Z250
prices are in EUR
ref
part #
description
quantity
1-1
6960435G00
ref: 1-1
CYLINDER ASSY,RR MASTER
€ 254.00
1-2
6960428H00
ref: 1-2
CYLINDER ASSY,RR MASTER
6960428H00
€ 259.00
2
6960035810
ref: 2
PISTON / CUP S
6960035810
€ 29.00
3
6969100A00
ref: 3
BOOT
6969100A00
€ 3.50
4
6969235G00
ref: 4
YOKE
6969235G00
€ 14.00
5-1
6967035G00
ref: 5-1
ROD,PUSH
6967035G00
€ 19.50
5-2
6967028H00
ref: 5-2
ROD,PUSH
6967028H00
€ 17.50
6
5121277500
ref: 6
NUT
5121277500
€ 5.00
7
6966937F20
ref: 7
CAP
6966937F20
€ 29.50
8
6966737F20
ref: 8
DIAPHRAGM
6966737F20
€ 9.00
9
6968937F30
ref: 9
SCREW
6968937F30
€ 2.50
10
5974836E00
ref: 10
SEPARATOR
5974836E00
€ 5.00
11
6974436E00
ref: 11
RING
6974436E00
€ 2.00
12
0913906139
ref: 12
SCREW(6X16)
0913906139
€ 3.00
13
6948035G01
ref: 13
HOSE, REAR BRAKE
6948035G01
€ 90.50
14
0936010065
ref: 14
BOLT UNION
0936010065
€ 5.50
15
0916110009
ref: 15
WASHER(10X15X1.5)
0916110009
€ 2.00
16
6119627C30
ref: 16
GUIDE,RR BRAKE
6119627C30
€ 5.50
17
021420510B
ref: 17
SCREW
021420510B
€ 2.50
18
0920008048
ref: 18
PIN(8X20)
0920008048
€ 3.00
19
0916008090
ref: 19
WASHER(8.5X14X1.6)
0916008090
€ 2.50
20
041112015A
ref: 20
PIN
041112015A
€ 1.50
