CYLINDER

RM-Z250 2007 (K7) USA (E03) RMZ250 RM Z250

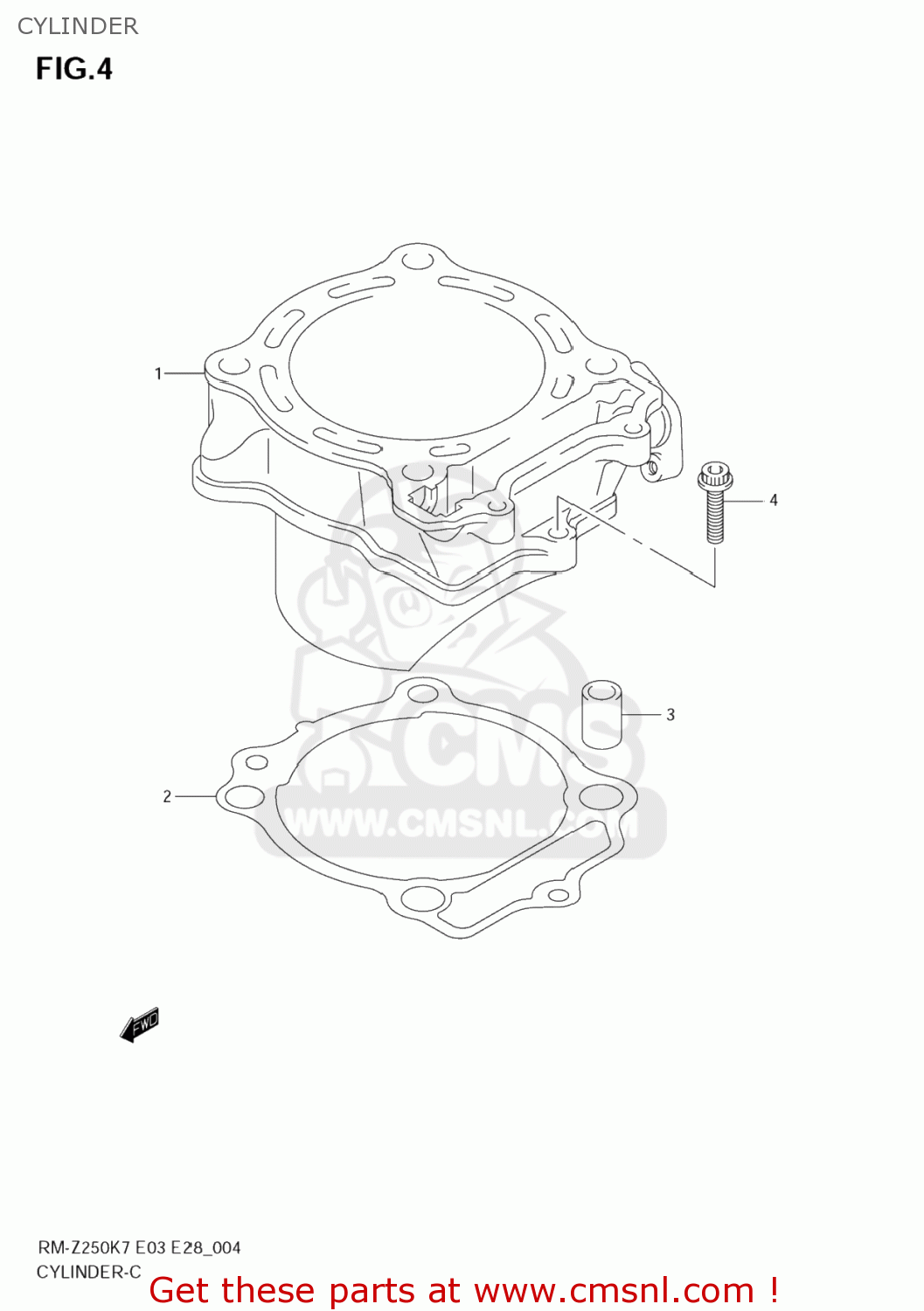

Cylinder diagram RM-Z250 2007 (K7) USA (E03) RMZ250 RM Z250

CYLINDER RM-Z250 2007 (K7) USA (E03) RMZ250 RM Z250

CYLINDER RM-Z250 2007 (K7) USA (E03) RMZ250 RM Z250

prices are in EUR

ref

part #

description

quantity

1

1121110H000F0
ref: 1

CYLINDER

€ 570.50

2

1124110H00
ref: 2

GASKET,CYLINDER (NAS)

€ 11.00

3

0421113189
ref: 3

PIN

€ 2.50

4

071200625B
ref: 4

BOLT

€ 2.50
