CARBURETOR

RM-Z250 2007 (K7) USA (E03) RMZ250 RM Z250

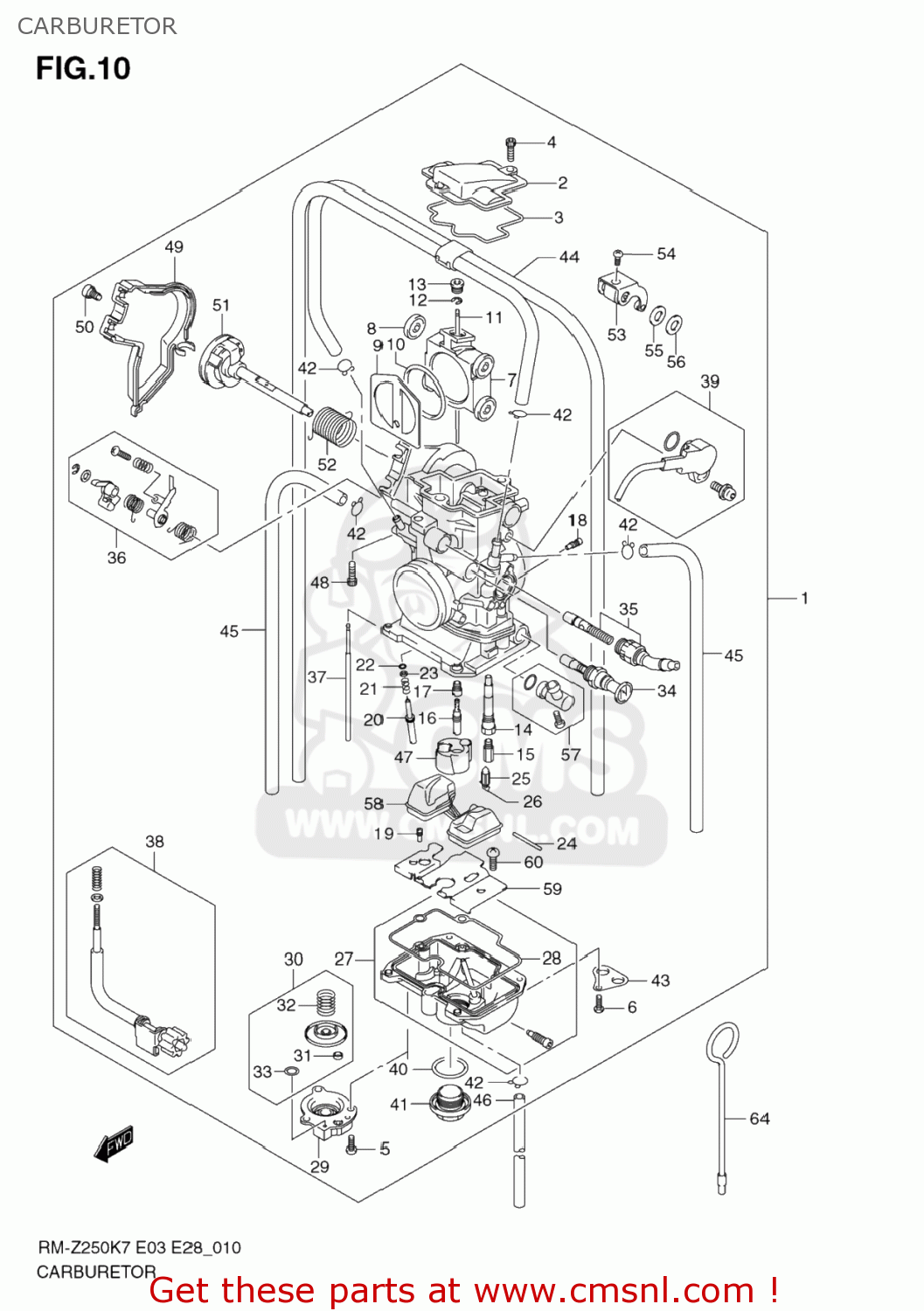

Carburetor diagram RM-Z250 2007 (K7) USA (E03) RMZ250 RM Z250

CARBURETOR RM-Z250 2007 (K7) USA (E03) RMZ250 RM Z250
CARBURETOR RM-Z250 2007 (K7) USA (E03) RMZ250 RM Z250
CARBURETOR RM-Z250 2007 (K7) USA (E03) RMZ250 RM Z250
prices are in EUR
ref
part #
description
quantity
1-1
1320010H00
ref: 1-1
CARBURETOR ASSY
€ 0.00
1-2
1320010H10
ref: 1-2
CARBURETOR ASSY
1320010H10
€ 709.50
1-3
1320010H20
ref: 1-3
CARBURETOR ASSY
€ 943.50
1-4
1320010H30
ref: 1-4
CARBURETOR ASSY
€ 709.50
2
1326135G00
ref: 2
TOP
€ 48.00
3
1326635G00
ref: 3
O RING
1326635G00
€ 17.50
4
1361229F10
ref: 4
BOLT(4X12)
1361229F10
€ 4.00
5
1360243E00
ref: 5
SCREW
1360243E00
€ 3.00
6
1360235G00
ref: 6
SCREW
1360235G00
€ 2.50
7
1355135G01
ref: 7
THROTTLE VALVE
1355135G01
€ 374.00
8
1357029F00
ref: 8
BEARING
1357029F00
€ 8.00
9
1355535G00
ref: 9
FLOATING VALVE
1355535G00
€ 228.00
10
1355929F00
ref: 10
LIP SEAL
1355929F00
€ 17.00
11-1
1338310H40
ref: 11-1
NEEDLE,JET(NLCT)
€ 17.00
11-1
1338310H40
ref: 11-1
NEEDLE,JET(NLCT)
€ 17.00
11-2
1338310H50
ref: 11-2
NEEDLE,JET(NLDT)
1338310H50
€ 17.00
12
1339429F00
ref: 12
BAR,CLIP
1339429F00
€ 3.50
13
1360035G00
ref: 13
SCREW SET,JET,NEEDLE
1360035G00
€ 23.50
14
1334235G00
ref: 14
MAIN NOZZLE
€ 40.00
15-1
0949132011
ref: 15-1
JET,MAIN(162)
0949132011
€ 13.00
15-2
0949134010
ref: 15-2
JET,MAIN(170)
0949134010
€ 12.50
16-1
0949245032
ref: 16-1
JET,PILOT(45)
0949245032
€ 9.00
16-2
0949242019
ref: 16-2
JET,SLOW(42)
0949242019
€ 12.50
17
0949235G00
ref: 17
JET,STARTER
0949235G00
€ 13.00
18
0949235G10
ref: 18
JET,SLOW AIR
0949235G10
€ 13.00
19-1
0949240025
ref: 19-1
JET
0949240025
€ 7.50
19-1
0949240025
ref: 19-1
JET
0949240025
€ 7.50
19-2
0949245039
ref: 19-2
JET,POWER(45)
0949245039
€ 13.00
20-1
1327929F00
ref: 20-1
SCREW,ADJUST
1327929F00
€ 7.50
20-1
1327929F00
ref: 20-1
SCREW,ADJUST
1327929F00
€ 7.50
20-2
1327910H00
ref: 20-2
SCREW,ADJUST
1327910H00
€ 8.50
21
1327129F00
ref: 21
SPRING
1327129F00
€ 3.00
22
1329529F00
ref: 22
13295-26E00
O RING
€ 4.50
23
1329129F00
ref: 23
13291-26E00
WASHER
1329129F00
€ 3.00
24
1325426E00
ref: 24
PIN,FLOAT
1325426E00
€ 3.00
25
1337029F00
ref: 25
VALVE,FLOAT
1337029F00
€ 36.00
26
1337526E00
ref: 26
CLIP
1337526E00
€ 5.50
27
1325010H00
ref: 27
FLOAT,CHAMBER BODY SET
1325010H00
€ 138.50
28
1325135G00
ref: 28
O RING
1325135G00
€ 14.50
29
1348829F00
ref: 29
COVER
€ 22.50
30
1348010H00
ref: 30
DIAPHRAGM SET
1348010H00
€ 44.50
31
1349714F00
ref: 31
U RING
1349714F00
€ 2.50
32
1349415F00
ref: 32
SPRING
1349415F00
€ 3.00
33
1367326E10
ref: 33
O RING
1367326E10
€ 4.50
34
1341035G20
ref: 34
STARTER VALVE
1341035G20
€ 29.00
35
1341010H00
ref: 35
STARTER VALVE
€ 76.00
36
1349035G10
ref: 36
LEVER SET,LINK
€ 57.00
37
1348735G00
ref: 37
ROD
€ 17.00
38
1327035G00
ref: 38
SCREW SET
€ 73.00
39
1358035G00
ref: 39
SENSOR SET,THROTTLE
1358035G00
€ 166.00
40
1324628E00
ref: 40
O RING
1324628E00
€ 3.50
41
1324710H00
ref: 41
BOLT,DRAIN
€ 24.00
42
0940106101
ref: 42
CLIP
0940106101
€ 2.50
43
1369336E00
ref: 43
PLATE
1369336E00
€ 4.50
44
1368035G00
ref: 44
PIPE SET,BOWL VENT
€ 36.50
45
1368635G00
ref: 45
PIPE
1368635G00
€ 10.00
46
1368435G00
ref: 46
PIPE
€ 7.00
47
1325710H00
ref: 47
PLATE,BUFFER
€ 24.50
48
1329610H00
ref: 48
SCREW
1329610H00
€ 20.50
49
1331135G00
ref: 49
COVER
1331135G00
€ 24.00
50
1331235G00
ref: 50
BOLT
1331235G00
€ 14.00
51
1355035G01
ref: 51
THROTTLE SHAFT
1355035G01
€ 114.50
52
1357335G00
ref: 52
SPRING
€ 11.00
53
1356435G00
ref: 53
LINK ARM
€ 58.50
54
1360535G00
ref: 54
SCREW
€ 4.50
55
1357229F00
ref: 55
WASHER
1357229F00
€ 2.50
56
1357435G00
ref: 56
WASHER
€ 2.50
57
1367035G00
ref: 57
JOINT SET
1367035G00
€ 39.00
58
1324035G00
ref: 58
FLOAT
€ 52.50
59
1325810H00
ref: 59
PLATE,BUFFER
1325810H00
€ 20.00
60
1360510H00
ref: 60
SCREW
€ 4.00
61-1
0949130018
ref: 61-1
JET,MAIN(150)
0949130018
€ 13.00
61-10
0949134011
ref: 61-10
JET,MAIN(172)
0949134011
€ 12.50
61-11
0949135009
ref: 61-11
JET,MAIN(175)
0949135009
€ 15.50
61-12
0949135010
ref: 61-12
JET,MAIN(178)
€ 15.50
61-13
0949136008
ref: 61-13
JET,MAIN(180)
0949136008
€ 15.50
61-14
0949137008
ref: 61-14
JET,MAIN(185)
0949137008
€ 15.50
61-15
0949138011
ref: 61-15
JET,MAIN(190)
0949138011
€ 15.50
61-2
0949130019
ref: 61-2
JET,MAIN(152)
0949130019
€ 13.00
61-3
0949131012
ref: 61-3
JET,MAIN(155)
0949131012
€ 13.00
61-4
0949131013
ref: 61-4
JET,MAIN(158)
0949131013
€ 13.00
61-5
0949132010
ref: 61-5
JET,MAIN(160)
0949132010
€ 13.00
61-6
0949132011
ref: 61-6
JET,MAIN(162)
0949132011
€ 13.00
61-7
0949133009
ref: 61-7
JET,MAIN(165)
0949133009
€ 9.00
61-8
0949133010
ref: 61-8
JET,MAIN(168)
0949133010
€ 12.50
61-9
0949134010
ref: 61-9
JET,MAIN(170)
0949134010
€ 12.50
62-1
0949235019
ref: 62-1
JET,SLOW(35)
0949235019
€ 13.00
62-10
0949260016
ref: 62-10
JET,SLOW(60)
0949260016
€ 12.50
62-2
0949240022
ref: 62-2
JET,SLOW(40)
0949240022
€ 15.50
62-3
0949242019
ref: 62-3
JET,SLOW(42)
0949242019
€ 12.50
62-4
0949245032
ref: 62-4
JET,PILOT(45)
0949245032
€ 9.00
62-5
0949248013
ref: 62-5
JET,SLOW(48)
0949248013
€ 9.50
62-6
0949250023
ref: 62-6
JET,SLOW(50)
0949250023
€ 11.50
62-7
0949252011
ref: 62-7
JET,SLOW(52)
0949252011
€ 11.50
62-8
0949255017
ref: 62-8
JET,SLOW(55)
0949255017
€ 11.50
62-9
0949258001
ref: 62-9
JET,PILOT(58)
0949258001
€ 9.50
63-1
1338310H00
ref: 63-1
NEEDLE,JET(NLCR)
1338310H00
€ 14.50
63-10
1338310H90
ref: 63-10
NEEDLE,JET(NLDV)
€ 10.50
63-2
1338310H10
ref: 63-2
NEEDLE,JET(NLDR)
1338310H10
€ 10.50
63-3
1338310H20
ref: 63-3
NEEDLE,JET(NLCS)
1338310H20
€ 10.50
63-4
1338310H30
ref: 63-4
NEEDLE,JET(NLDS)
1338310H30
€ 17.00
63-5
1338310H40
ref: 63-5
NEEDLE,JET(NLCT)
€ 17.00
63-6
1338310H50
ref: 63-6
NEEDLE,JET(NLDT)
1338310H50
€ 17.00
63-7
1338310H60
ref: 63-7
NEEDLE,JET(NLCU)
1338310H60
€ 11.00
63-8
1338310H70
ref: 63-8
NEEDLE,JET(NLDU)
€ 10.50
63-9
1338310H80
ref: 63-9
NEEDLE,JET(NLCV)
€ 10.50
64
1322035G00
ref: 64
HOLDER,JET NEEDLE
1322035G00
€ 5.00
