Buy Suzuki unknown Parts Online


CRANKSHAFT

RM-Z250 2007 (K7) USA (E03) RMZ250 RM Z250

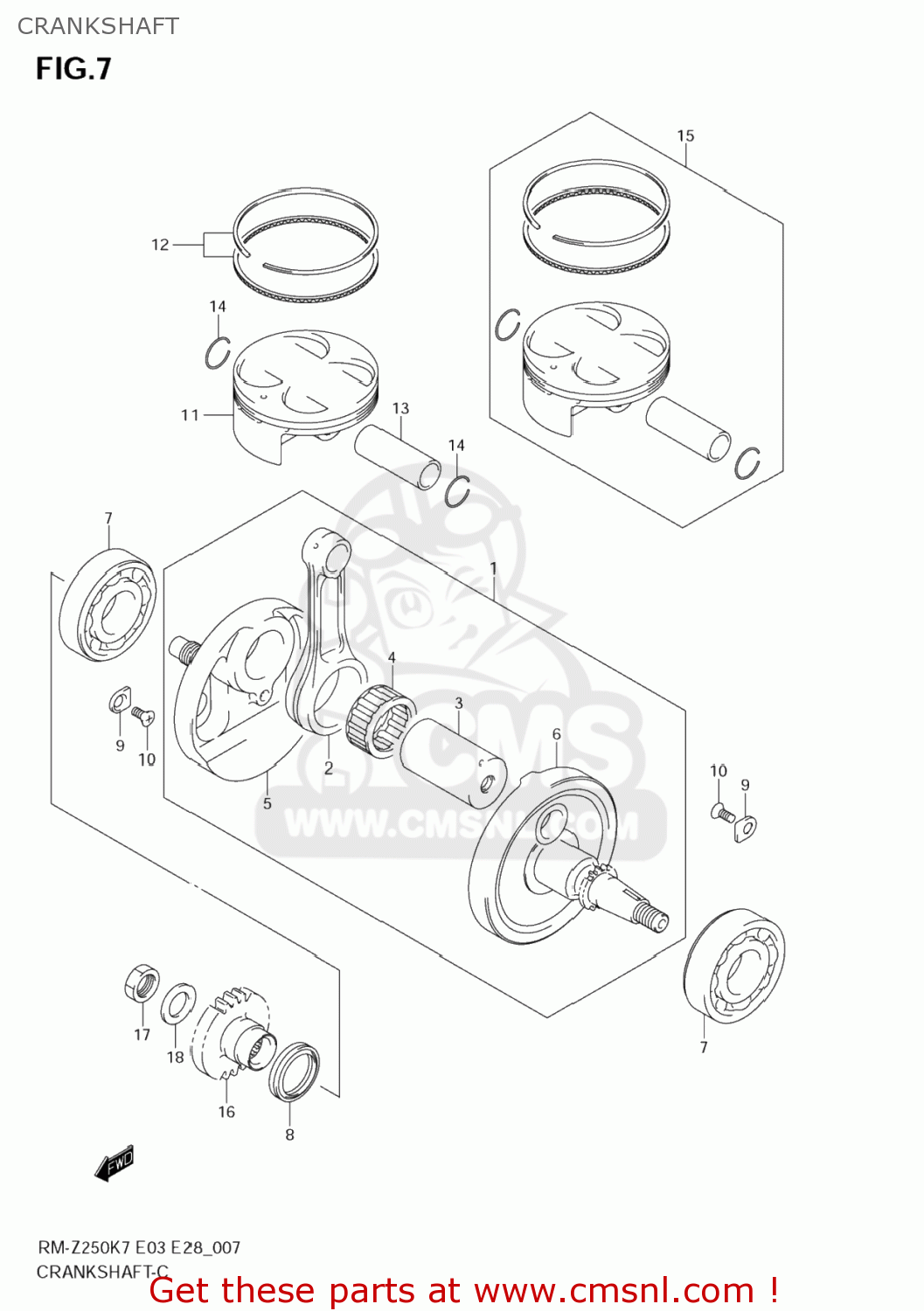

Crankshaft diagram RM-Z250 2007 (K7) USA (E03) RMZ250 RM Z250

CRANKSHAFT RM-Z250 2007 (K7) USA (E03) RMZ250 RM Z250
CRANKSHAFT RM-Z250 2007 (K7) USA (E03) RMZ250 RM Z250
CRANKSHAFT RM-Z250 2007 (K7) USA (E03) RMZ250 RM Z250
prices are in EUR
ref
part #
description
quantity
1
1220010H10
ref: 1
12200-10H11
CRANKSHAFT ASS
€ 769.00
2
1216110H100B0
ref: 2
12161-49H00-0B0
CONNROD
€ 105.50
3
1221010H10
ref: 3
12210-10H11
PIN,CRANK
1221010H10
€ 54.50
4
09263300540B0
ref: 4
09263-30060-0B0
BEARING
€ 53.50
5
1222010H10
ref: 5
CRANKSHAFT,R
1222010H10
€ 180.50
6
1226110H10
ref: 6
CRANKSHAFT,L
1226110H10
€ 296.50
7
0926230117
ref: 7
BEARING(30X62X16)
0926230117
€ 68.00
8
0928330061
ref: 8
SEAL,OIL(30X40X7)
0928330061
€ 17.00
9
2474137F00
ref: 9
RETAINER,CRANKSHAFT BEARING
2474137F00
€ 2.50
10
0912606011
ref: 10
SCREW(6X12)
0912606011
€ 2.00
11-1
1211110H100F0
ref: 11-1
12111-10H20-0F0
PISTON
1211110H100F0
€ 163.00
11-2
1211110H200F0
ref: 11-2
PISTON
€ 163.00
12
1214010810
ref: 12
RING SET,PISTON
1214010810
€ 33.00
13
1215110H00
ref: 13
PIN,PISTON
1215110H00
€ 12.50
14
0938116001
ref: 14
RING,SNAP 16MM
0938116001
€ 1.50
15-1
1211010810
ref: 15-1
12110-10820
PISTON KIT
1211010810
€ 185.00
15-1
1211010810
ref: 15-1
12110-10820
PISTON KIT
1211010810
€ 185.00
15-2
1211010820
ref: 15-2
PISTON KIT
1211010820
€ 185.00
15-2
1211010820
ref: 15-2
PISTON KIT
1211010820
€ 185.00
16
2111110H00
ref: 16
GEAR,PRIMARY DRIVE
2111110H00
€ 70.00
17
0914016036
ref: 17
NUT
0914016036
€ 12.00
18
0916416002
ref: 18
WASHER
0916416002
€ 3.00
