MAGNETO

RM-Z250 2007 (K7) USA (E03) RMZ250 RM Z250

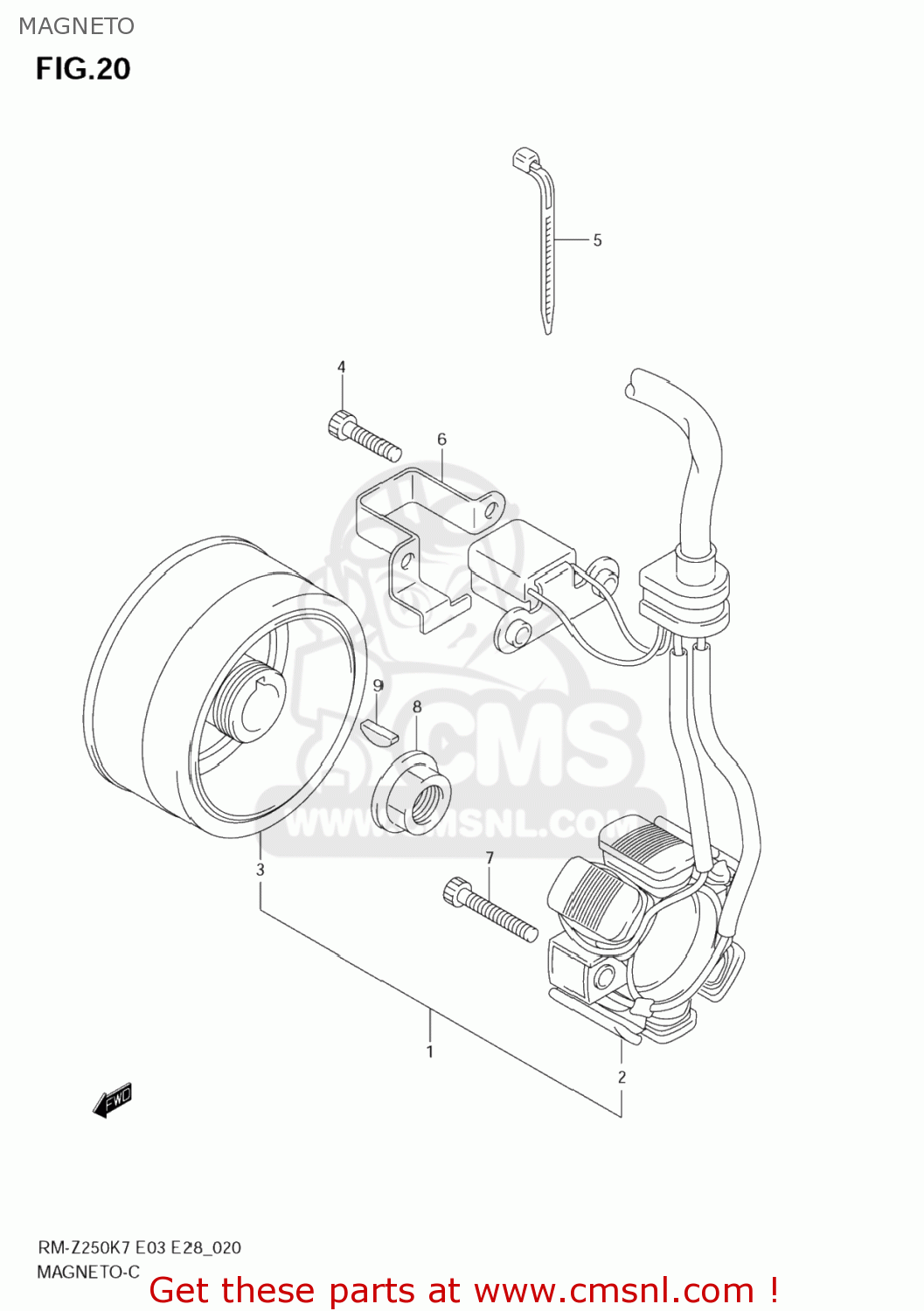

Magneto diagram RM-Z250 2007 (K7) USA (E03) RMZ250 RM Z250

MAGNETO RM-Z250 2007 (K7) USA (E03) RMZ250 RM Z250

MAGNETO RM-Z250 2007 (K7) USA (E03) RMZ250 RM Z250

prices are in EUR

ref

part #

description

quantity

1

3210010H00
ref: 1

MAGNETO ASSY

€ 509.50

2

3210110H00
ref: 2

STARTER ASSY

€ 496.00

3

3210210H00
ref: 3

ROTOR ASSY

€ 227.00

4

3237110H00
ref: 4

CLAMP,MAGNETO LEAD

€ 5.00

5

0940714403
ref: 5

CLAMP(L:125)

€ 2.50

6

071300512B
ref: 6

BOLT

€ 2.50

7

0910605029
ref: 7

BOLT(5X25)

€ 4.00

8

083161012B
ref: 8

NUT

€ 2.00

9

0834131039
ref: 9

KEY

€ 2.00
