CRANKCASE COVER

RM-Z250 2007 (K7) USA (E03) RMZ250 RM Z250

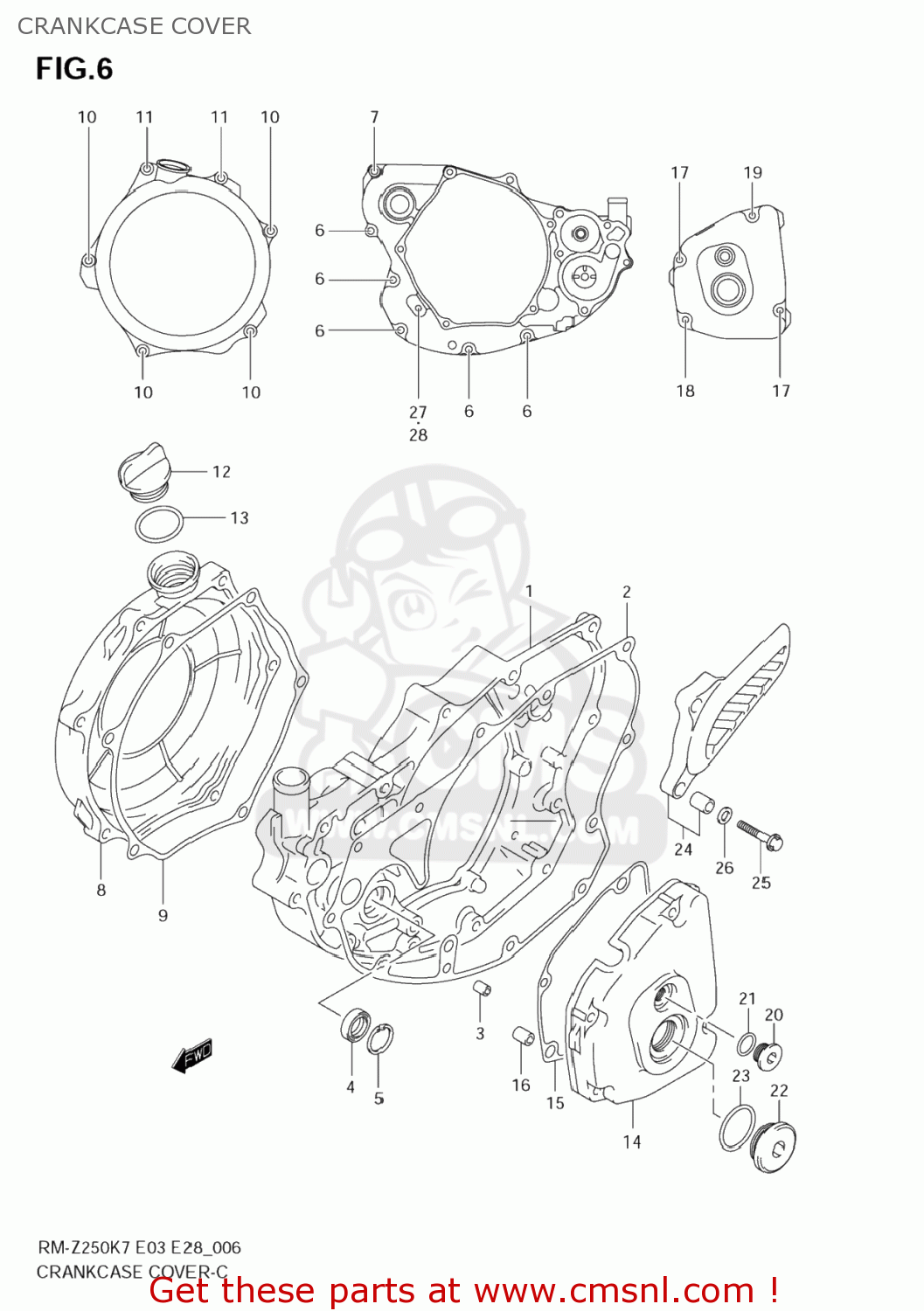

Crankcase cover diagram RM-Z250 2007 (K7) USA (E03) RMZ250 RM Z250

CRANKCASE COVER RM-Z250 2007 (K7) USA (E03) RMZ250 RM Z250
CRANKCASE COVER RM-Z250 2007 (K7) USA (E03) RMZ250 RM Z250
CRANKCASE COVER RM-Z250 2007 (K7) USA (E03) RMZ250 RM Z250
prices are in EUR
ref
part #
description
quantity
1
1134010H00
ref: 1
COVER,CLUTCH
1134010H00
€ 225.00
2
1148210H00
ref: 2
GASKET,CLUTCH COVER (NAS)
1148210H00
€ 14.00
3
0421109109
ref: 3
PIN
0421109109
€ 2.00
4
0928212012
ref: 4
SEAL,OIL(12X22X6)
0928212012
€ 12.00
5
083314124A
ref: 5
08331-41249
CIRCLIP
083314124A
€ 2.50
6
015470625A
ref: 6
BOLT
015470625A
€ 2.50
7
015470630A
ref: 7
BOLT
015470630A
€ 2.50
8
1137110H00
ref: 8
COVER,CLUTCH OUTER
€ 157.50
9
1148410H00
ref: 9
GASKET,CLUTCH COVER OUTER (NAS)
1148410H00
€ 9.00
10
015470625A
ref: 10
BOLT
015470625A
€ 2.50
11
015470660A
ref: 11
BOLT
015470660A
€ 2.50
12
0925920008
ref: 12
09259-20008-XC0
PLUG
0925920008
€ 6.50
13
0928017003
ref: 13
O RING(D:3.1,ID:16.8)
0928017003
€ 2.00
14
1135110H00
ref: 14
COVER,MAGNETO
€ 162.50
15
1148310H00
ref: 15
GASKET,MAGNETO COVER (NAS)
1148310H00
€ 8.00
16
0421109109
ref: 16
PIN
0421109109
€ 2.00
17
015470630A
ref: 17
BOLT
015470630A
€ 2.50
18
015470635A
ref: 18
BOLT
015470635A
€ 3.00
19-1
0910306252
ref: 19-1
BOLT(6X35)
0910306252
€ 3.00
19-2
015470640A
ref: 19-2
BOLT
015470640A
€ 2.50
20
0924812007
ref: 20
PLUG(12X9)
0924812007
€ 6.50
21
0928010016
ref: 21
O RING(D:1.9,ID:9.8)
0928010016
€ 3.50
22
0925926011
ref: 22
PLUG(26X9)
0925926011
€ 8.50
23
0928022008
ref: 23
O RING(D:3.1,ID:22.7)
0928022008
€ 2.50
24
1136035G00
ref: 24
COVER,ENGINE SPROCKET
1136035G00
€ 19.00
25
015470630A
ref: 25
BOLT
015470630A
€ 2.50
26
083220106B
ref: 26
WASHER
083220106B
€ 2.00
27
071200610B
ref: 27
BOLT
071200610B
€ 2.00
28
0916806004
ref: 28
GASKET(6.2X11X1).2 (NAS)
0916806004
€ 1.50
