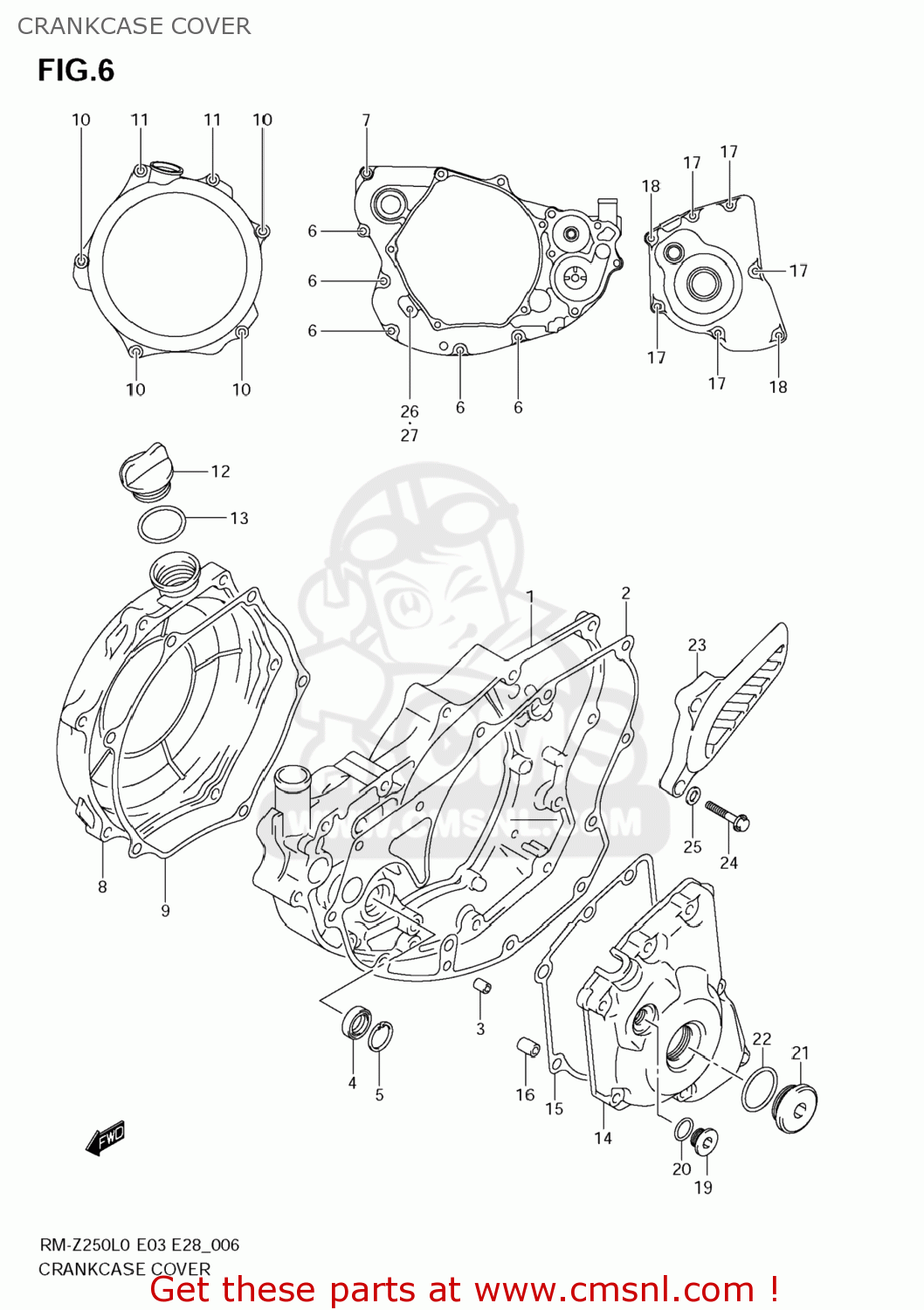

CRANKCASE COVER

ref

part #

description

quantity

1

1134010H10
ref: 1

COVER,CLUTCH

€ 225.00

2

1148210H00
ref: 2

GASKET,CLUTCH COVER (NAS)

€ 14.00

3

0421109109
ref: 3

PIN

€ 2.00

4

0928212012
ref: 4

SEAL,OIL(12X22X6)

€ 12.00

5

083314124A
ref: 5
08331-41249

CIRCLIP

€ 2.50

6

015470625A
ref: 6

BOLT

€ 2.50

7

015470630A
ref: 7

BOLT

€ 2.50

8

1137110H00
ref: 8

COVER,CLUTCH OUTER

€ 157.50

9

1148410H00
ref: 9

GASKET,CLUTCH COVER OUTER (NAS)

€ 9.00

10

015470625A
ref: 10

BOLT

€ 2.50

11

015470660A
ref: 11

BOLT

€ 2.50

12

0925920008
ref: 12
09259-20008-XC0

PLUG

€ 6.50

13

0928017003
ref: 13

O RING(D:3.1,ID:16.8)

€ 2.00

14

1135149H00
ref: 14

COVER,MAGNETO

€ 112.00

15

1148349H00
ref: 15

GASKET,MAGNETO COVER (NAS)

€ 7.50

16

0421109109
ref: 16

PIN

€ 2.00

17

015470630A
ref: 17

BOLT

€ 2.50

18

015470635A
ref: 18

BOLT

€ 3.00

19

0924812007
ref: 19

PLUG(12X9)

€ 6.50

20

0928010016
ref: 20

O RING(D:1.9,ID:9.8)

€ 3.50

21

0925926011
ref: 21

PLUG(26X9)

€ 8.50

22

0928022008
ref: 22

O RING(D:3.1,ID:22.7)

€ 2.50

23

1136035G00
ref: 23

COVER,ENGINE SPROCKET

€ 19.00

24

015470630A
ref: 24

BOLT

€ 2.50

25

083220106B
ref: 25

WASHER

€ 2.00

26

071200610A
ref: 26

BOLT

€ 2.00

27

0916806023
ref: 27

GASKET(5.8X13X1.2) (NAS)

€ 2.00
