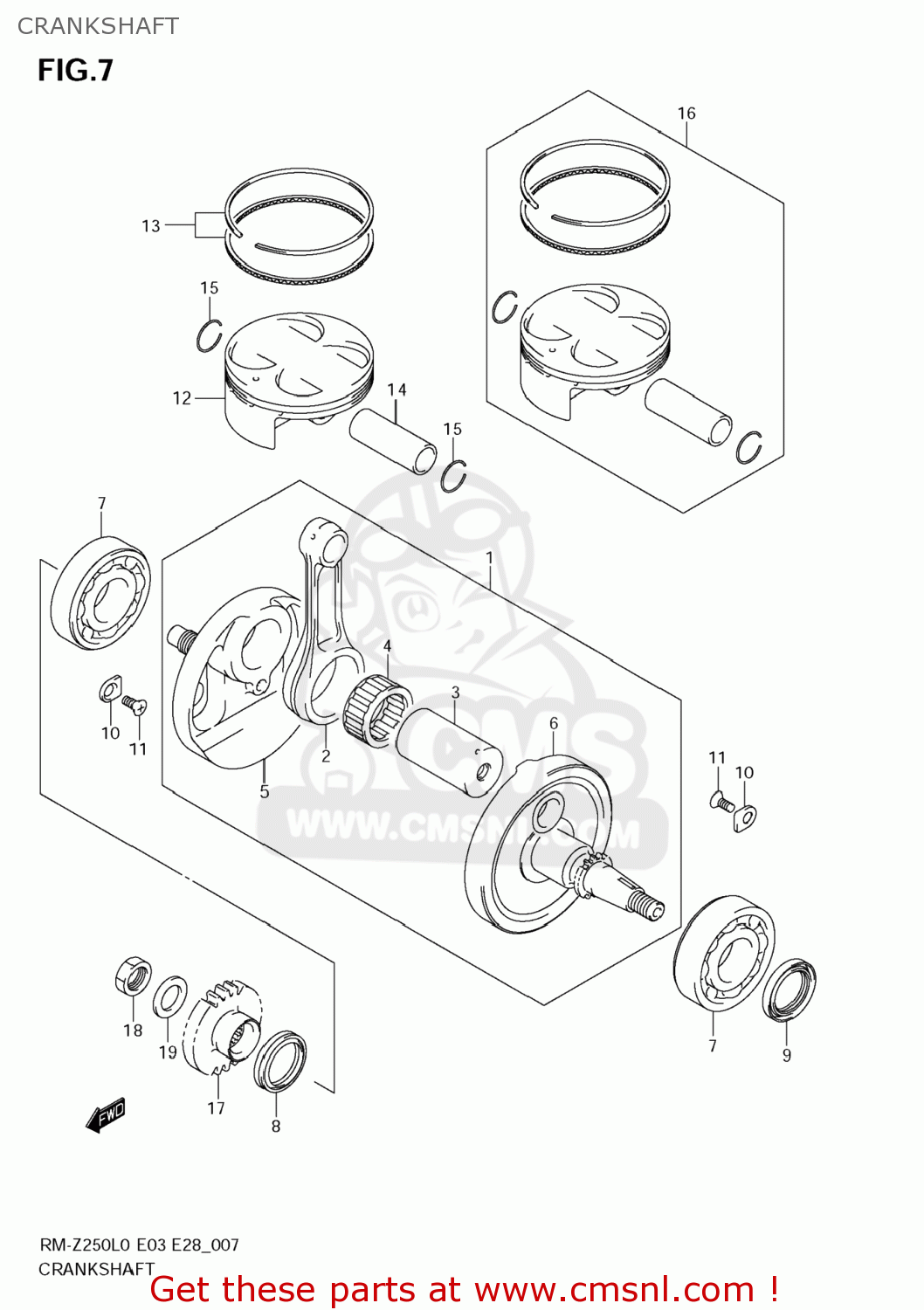

CRANKSHAFT

ref

part #

description

quantity

1

1220049H00
ref: 1
12200-49H01

CRANKSHAFT ASS

€ 782.00

2

1216149H000B0
ref: 2

CONNECTING ROD

€ 105.50

3

1221010H10
ref: 3
12210-10H11

PIN,CRANK

€ 54.50

4

09263300600B0
ref: 4

BEARING(30X38X18)

€ 53.50

5

1222049H00
ref: 5

CRANKSHAFT,R

€ 250.50

6

1226149H00
ref: 6

CRANKSHAFT,L

€ 277.00

7

0926230122
ref: 7

BEARING(30X63X16)

€ 53.50

8

0928330061
ref: 8

SEAL,OIL(30X40X7)

€ 17.00

8

0928330061
ref: 8

SEAL,OIL(30X40X7)

€ 17.00

9

0928330069
ref: 9

SEAL,OIL(30X40X6)

€ 7.00

9

0928330069
ref: 9

SEAL,OIL(30X40X6)

€ 7.00

10

2474137F00
ref: 10

RETAINER,CRANKSHAFT BEARING

€ 2.50

11

0912606011
ref: 11

SCREW(6X12)

€ 2.00

12

1211149H000F0
ref: 12

PISTON

€ 164.00

13

1214010810
ref: 13

RING SET,PISTON

€ 33.00

14

1215110H00
ref: 14

PIN,PISTON

€ 12.50

15

0938116001
ref: 15

RING,SNAP 16MM

€ 1.50

16

1211049810
ref: 16

PISTON KIT

€ 176.50

17

2111149H00
ref: 17

GEAR,PRIMARY DRIVE

€ 49.50

18

0914016036
ref: 18

NUT

€ 12.00

19

0916416002
ref: 19

WASHER

€ 3.00
