FUEL TANK

RM-Z250 2010 (L0) USA (E03) RMZ250 RM Z250

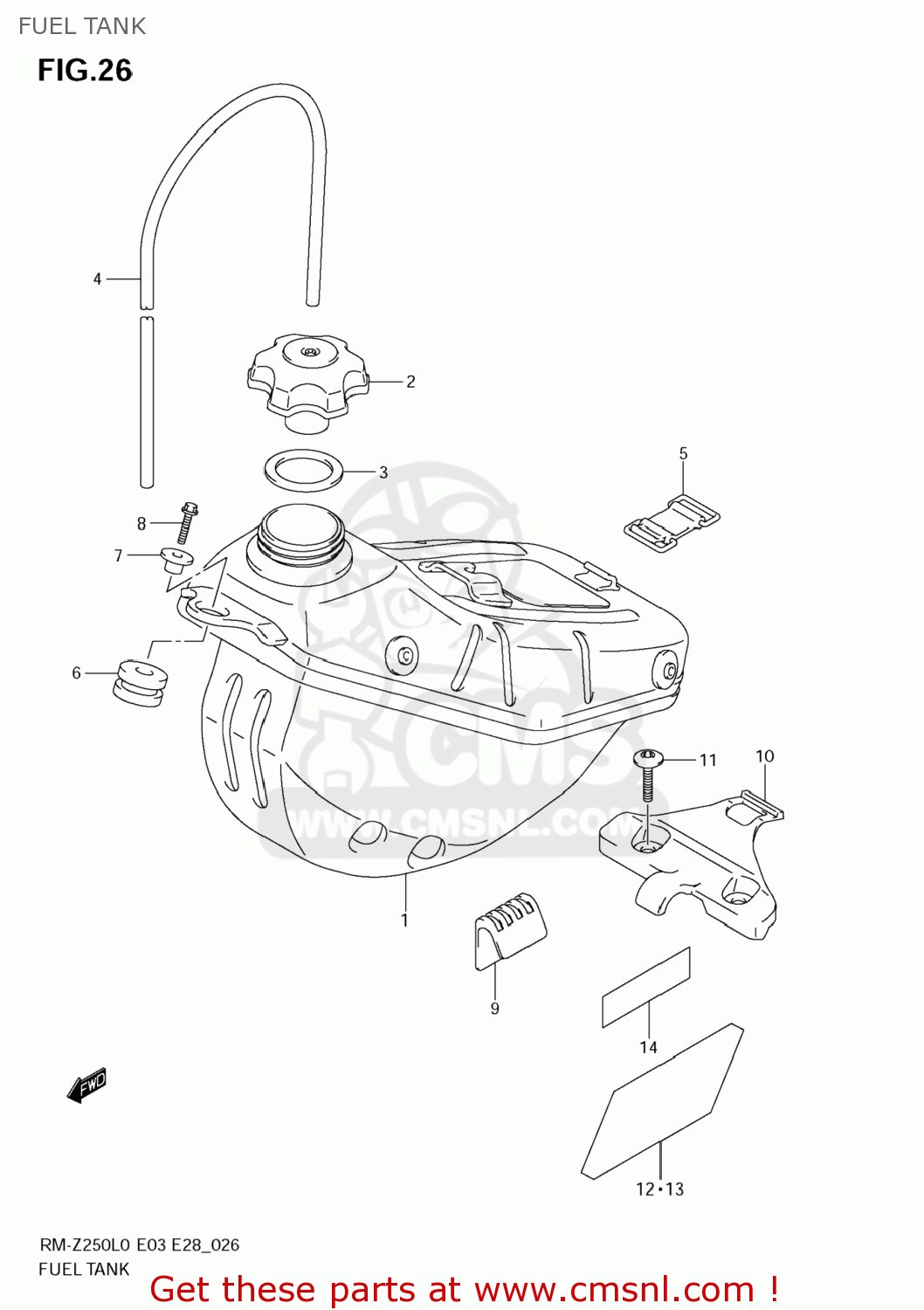

Fuel tank diagram RM-Z250 2010 (L0) USA (E03) RMZ250 RM Z250

prices are in EUR

ref

part #

description

quantity

4411049H00
ref: 1

TANK,FUEL

€ 1,453.00

4421037F00
ref: 2

CAP,FUEL TANK FILLER

€ 18.00

4424827C00
ref: 3

GASKET,CAP (NAS)

€ 4.00

0935250823600
ref: 4
44420-44AR0

HOSE(5X8.2X600)

€ 13.00

4456049H00
ref: 5

BAND,FUEL TANK RR

€ 6.50

4454128H00
ref: 6

CUSHION,FUEL TANK FR

€ 4.50

4413435G02
ref: 7

SPACER

€ 14.50

0910306213
ref: 8

BOLT(6X30)

€ 2.50

4454349H00
ref: 9

CUSHION,FUEL TANK SIDE

€ 8.00

4454249H00
ref: 10

CUSHION,FUEL TANK RR

€ 14.00

0913906185
ref: 11

SCREW(6X26.5)

€ 3.00

1779528H00
ref: 12

PROTECTOR,RADIATOR,R

€ 13.00

1779628H00
ref: 13

PROTECTOR,RADIATOR,L

€ 13.00

1779728H00
ref: 14

PROTECTOR,RADIATOR

€ 8.50
