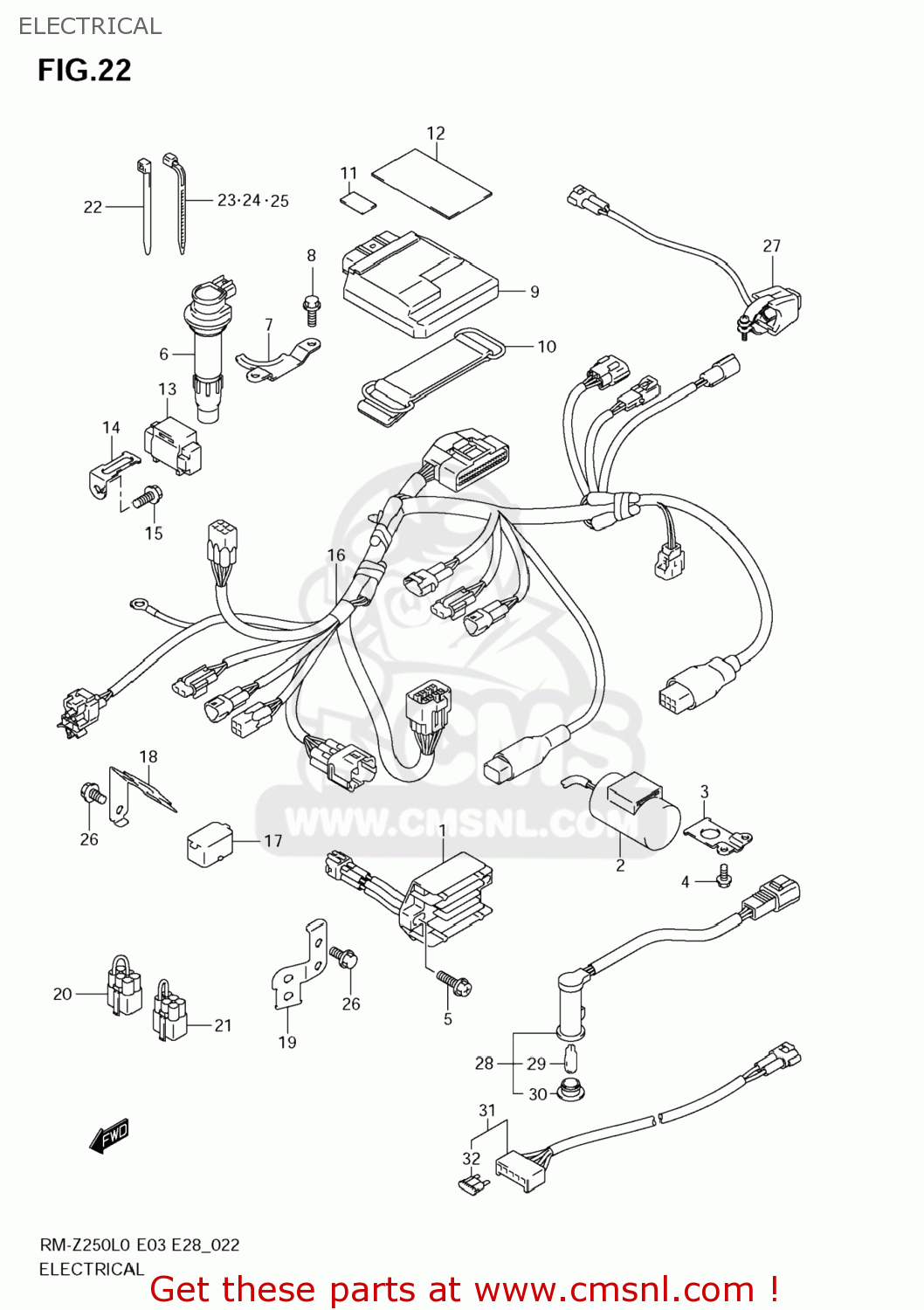

ELECTRICAL

ref

part #

description

quantity

1

3280028H00
ref: 1

RECTIFIER ASSY

€ 121.00

2

3364028H00
ref: 2

CONDENSER ASSY

€ 93.50

3

3364128H00
ref: 3

BRACKET,CONDENSER

€ 6.00

4

0910306188
ref: 4

BOLT(6X10)

€ 2.00

5

021620620C
ref: 5

SCREW

€ 2.00

6

3341049H00
ref: 6

COIL ASSY,IGNITION

€ 117.50

7

3341449H00
ref: 7

RETAINER,IGNITION COIL

€ 5.00

8

015500610B
ref: 8

BOLT

€ 2.50

9

3292049H00
ref: 9
32920-49H01

CONTROL UNIT,FI

€ 362.00

10

3294214301
ref: 10

BAND,CDI UNIT(L:80)

€ 10.00

11

3365236000
ref: 11

CUSHION(30X50X3)

€ 5.00

12

3365137000
ref: 12

PROTECTOR(170X95X3.0)

€ 5.00

12

3365137000
ref: 12

PROTECTOR(170X95X3.0)

€ 5.00

13

3396006G10
ref: 13

SENSOR ASSY,FUEL CUT

€ 75.00

14

3396149H00
ref: 14

BRACKET,FUEL CUT SENSOR

€ 4.50

15

021620616A
ref: 15
02162-0616B

SCREW

€ 1.50

16

3661049H00
ref: 16

HARNESS,WIRING

€ 435.00

17

3665446H00
ref: 17

CAP,TS

€ 9.00

18

3667249H00
ref: 18

BRACKET,COUPLER

€ 7.00

19

3667249H10
ref: 19

BRACKET,COUPLER

€ 6.50

20

3685228H00
ref: 20

WIRE,SHORT

€ 9.50

21

3685249H00
ref: 21

WIRE,SHORT

€ 9.00

22

0940710403
ref: 22

CLAMP(L:95)

€ 2.50

23

0940711401
ref: 23

CLAMP(L:95)

€ 2.50

24

0940714403
ref: 24

CLAMP(L:125)

€ 2.50

25

0940718402
ref: 25

CLAMP(L:165)

€ 2.50

26

015500610A
ref: 26

BOLT

€ 2.00

27

3782036E00
ref: 27

SWITCH ASSY,ENGINE STOP

€ 21.00

28

3638028H00
ref: 28

LAMP ASSY,FI INDICATOR

€ 59.50

29

0947112028
ref: 29

BULB(12V3.4W,T10)

€ 3.50

30

3632128H00
ref: 30

LENS(RED)

€ 8.00

31

3689028H00
ref: 31

WIRE,BATTERY

€ 28.50

32

0948110101
ref: 32

FUSE(10A)

€ 2.50

all assemblies
